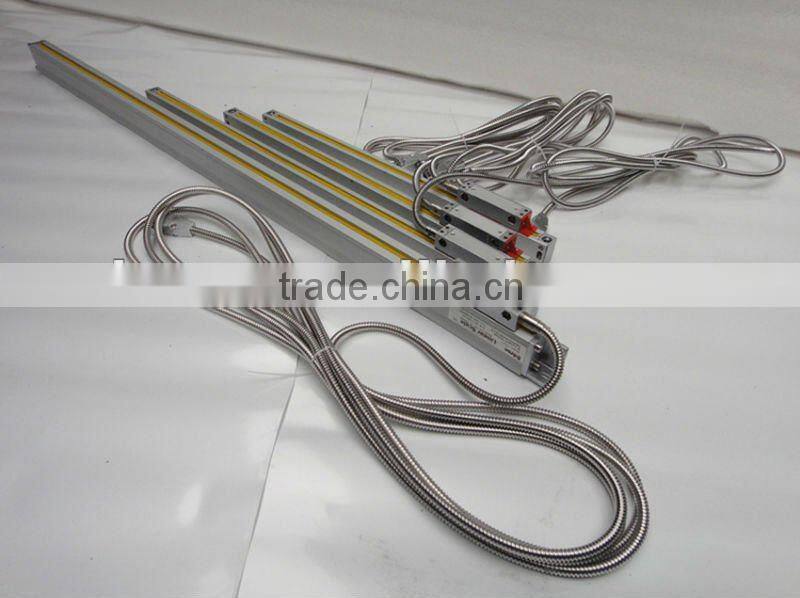

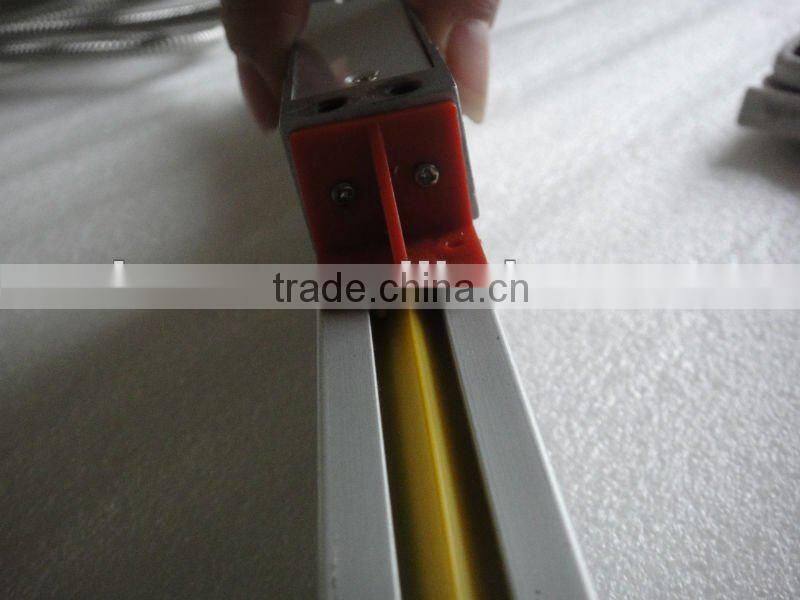

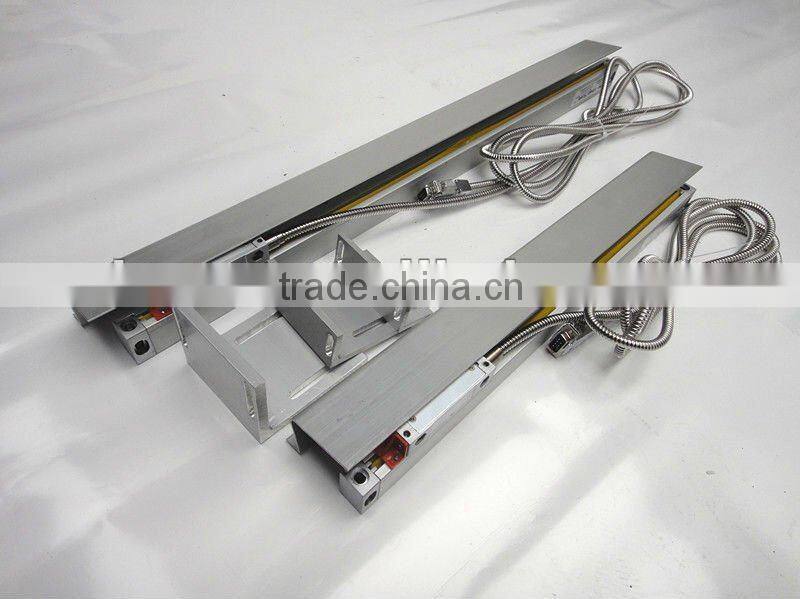

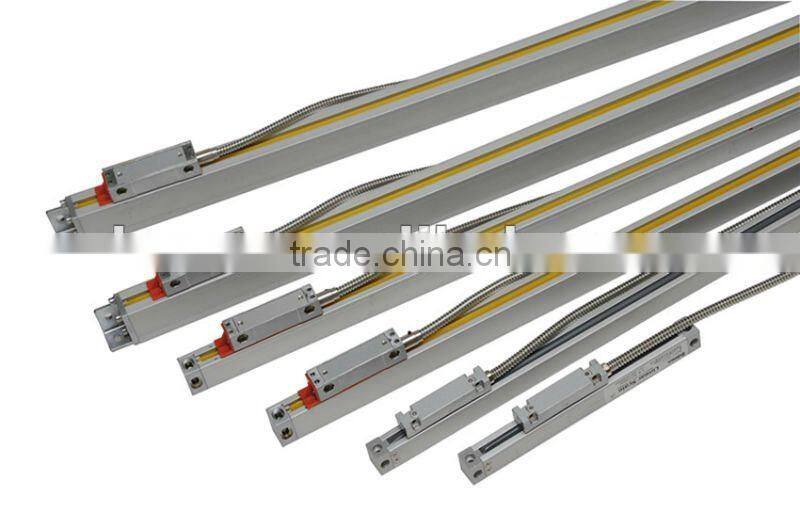

Ditron 50-600mm Linear Glass Scale

Specification

 1:output:+5VTTL,+12VTTL,24VTTL

2:Output signal:TTL,EIA-422-A

3:Rolling system:vertical five bearing rolling system

4:Grating system transmission infrared optical measuing system the infrared wave length is 880nm

DC series Linear scale are used on all inds of machines with Ditron digital readout together that can help processing in the machines by laocating the positions,The scale may also be fited to coordinate measurement equipmen used for high accuracy inspection&measurement.

characteristic

 1:high speed of movement,above 60m/min

2:bearing are adopted for sliding part to provide easy movement and excellent repeated positioning function

3:muti-layer isolating wire mesh and metal soft shell protectin is adopted for signal cable to provide excellent water-proof and anti-interrupyion performance.

4:aluminum alloy material with anodic disposal is adopted for scale head is cast with hard chrome-plating alloy of wearing resistance

5:special rubber is adopted for dust proof cover,which is of good scaping and corrsion resistance and small friction

6:individualized components makes it very easy to install,maintain and repair the linear encoder,and it is of anti-water dust-proof and long time

7:glass precision measuring grating is adopted for the linear encoder as measuring benchmark to ensure high precision

8:single light source illumination is adopted for good intergration
