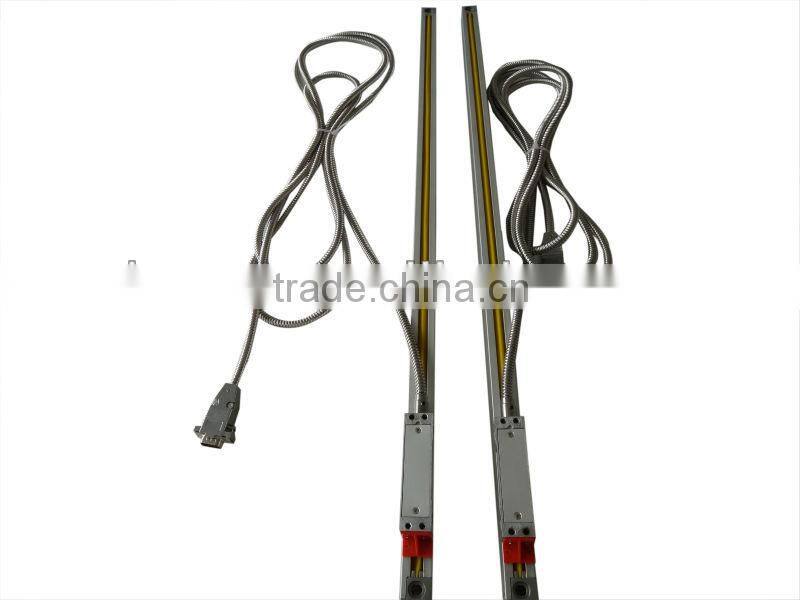

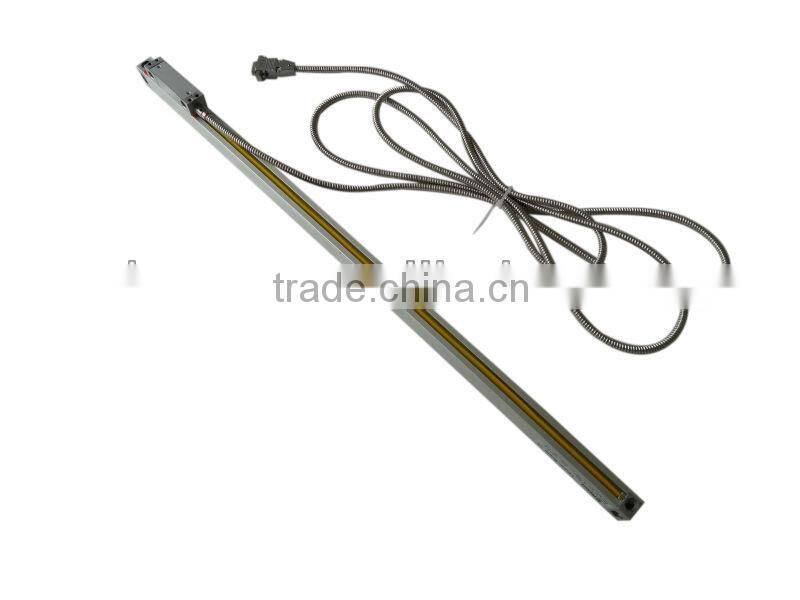

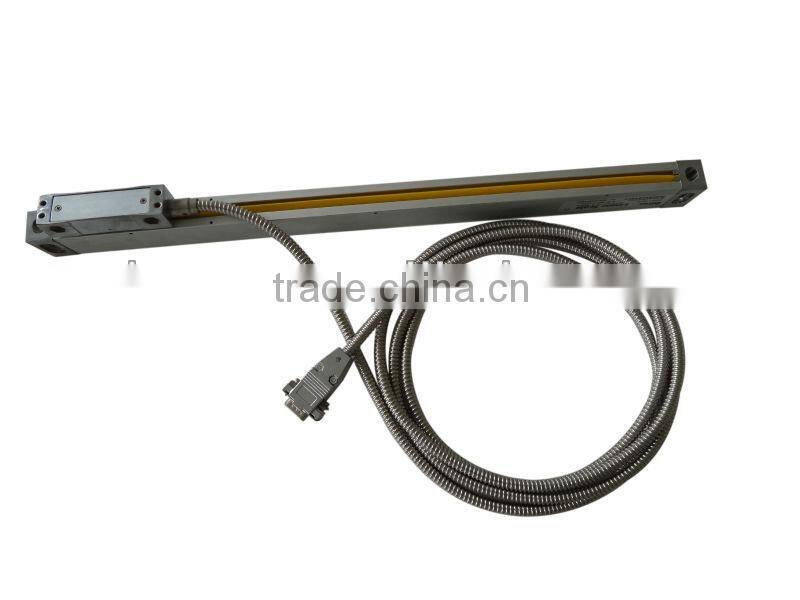

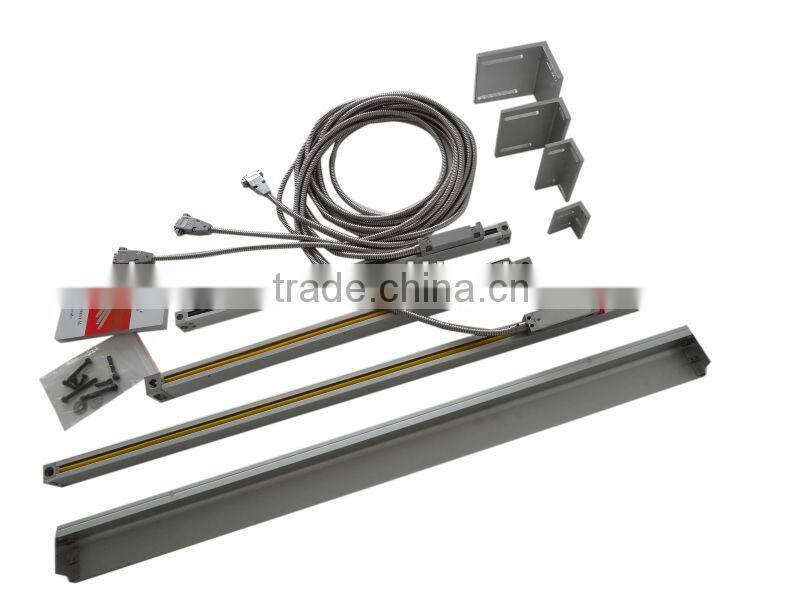

Ditron DC10 Linear Glass Scale

Resolution: 10µm ,5µm, 1µm, 0.5µm, 0.25µm, 0.1µm

Measuring length:10mm to 1000mm

Output:+5V TTL ,+12V TTL,+24V TTL

DC series Linear scales are used on all kinds of machines with Ditron D60 digital readout  together, which can help processing in the machines by locating the positions. The scales may also be fitted to co-ordinate measurement or other measurement equipment used for high accuracy inspection & measurement
Our scales has the below specialities,
1. Quick speed of movement, above 60m per minute
2. bearings are adopted for the sliding part to provide easy movement and excellent repeated positioning function
3. Multi-layer isolating wire mesh and metal soft shell protection is adopted for signal cable to provide excellent water-proof and anti-interruption performance
4. Aluminum alloy material with anodic disposal is adopted for scale body and scale head is cast with hard chrome-plating alloy of wearing resistance
5. Special rubber is adopted for dust proof cover, which is of good scraping and corrosion resistance and small friction
6. Individualized components makes it very easy to install, maintain and repair the linear Encoder, and it is of Anti-water dust-proof and long life
7 .Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision
8. Single light source illumination is adopted for good integration.
