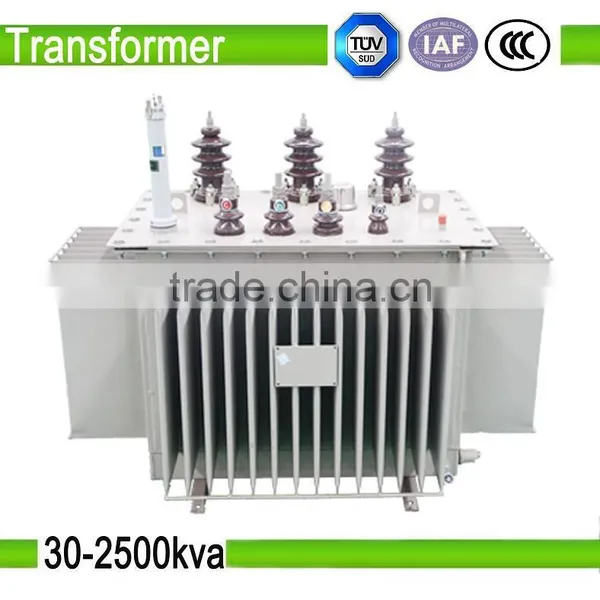

Help Center500kva Oil-immersed Power Distribution Transformer With Price up to 33kv 11kv
Related Products
-
S13 Oil-immersed Power Distribution Transformer up to 1000KVA 10KVUS$ 988 - 28,350MOQ: 1 Set -
50Hz Three Phase Variable Dry Type Transformer30-2500KVA Capacity 10KVUS$ 3,166 - 27,516MOQ: 1 Piece
-
6kv 10kv 35kv Rated Voltage YB Series Pre-installed Type Substation European Type Substation TransformerUS$ 3.166 - 27.516MOQ: 1 Set
-
YB Series European Style Compact SubstationUS$ 3.166 - 27.516MOQ: 1 Set
-
YB Series American Style Compact SubstationUS$ 3.166 - 27.516MOQ: 1 Set
Specifications
1, Rated capacity:30KVA--2500KVA2, High voltage:6KV/6.3KV/10KV, low voltage:0.4KV
Performance Feature
This series of products are equipped with high quality cold rolled grain oriented silicon steel sheets and high-quality oxygen-free copper wire winding high and low voltage coils. The vacuum filling oil process makes the transformer oil can not be exposed to air, effectively prevent oxygen and moisture from entering the transformer.
The imported Z80 low loss silicon steel sheet can reduce 30% no-load loss, 30% no-load current, more than 10dB running noise. The structure of product is reasonable, technology is advanced.
Product Features:
Good technical and economic performance
Long service period
Higher reliability
Less occupied area
Service Condition:
Altitude: No more than 1000m indoors or out.
Highest surrounding temperature: ≤40ºC
Highest daily average temperature: ≤30ºC
Highest annual average temperature: ≤20ºC
Lowest annual average temperature: ≥ -25ºC
According to users’ requirements can provide the transformer for special condition use.
Data

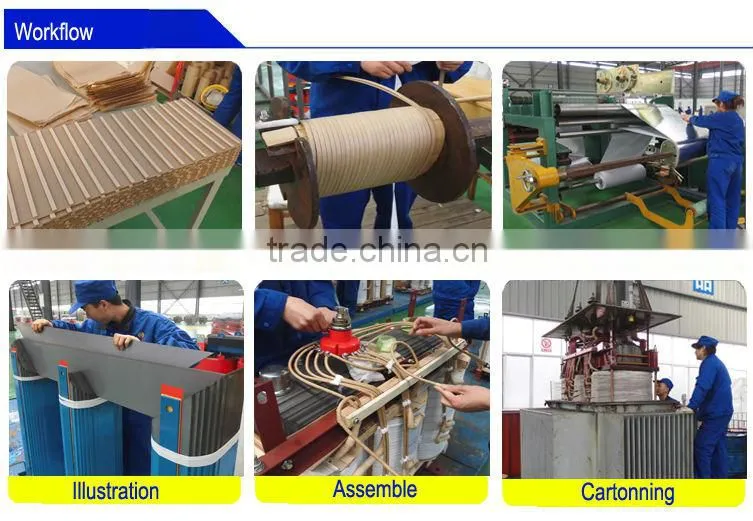

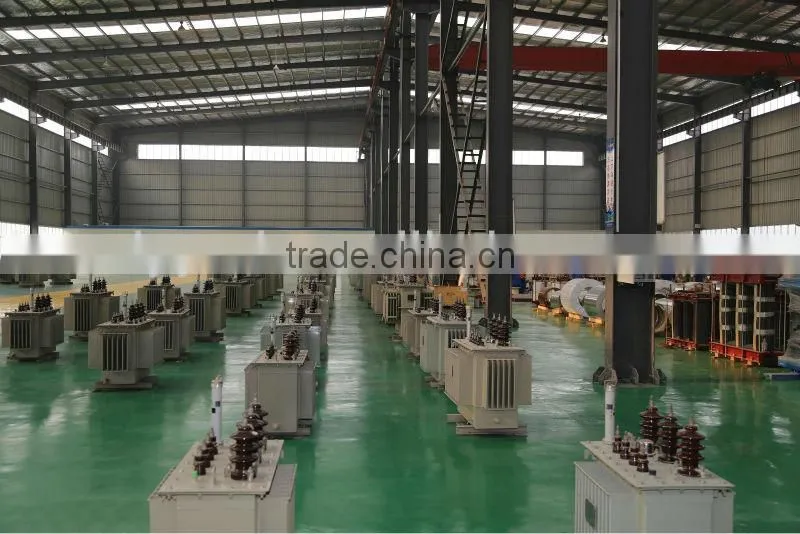

Workshop
