High Quality Bare 9.5mm Aluminum Rod Manufacturers for Electrical Purpose
9.5m Aluminum rod specifications
1. It is mainly used for drawing the core of wires and cables
2. The surface of the rod is clean, smooth and seamless
3. Coil weight: large coil 1000kg, small coil: 300--1000kg
Standard
1. 9.5mm Aluminum rod was produced and provided by consulting and following the American standard ASTMB233 and Germany standard EN17152.
2. Producing and providing the products according to Chinese standard GB/T3954 2001, and consulting and following the American standard ASTM B233:1997, and Germany DIN standard EN 17152:1997.
Main Standard Specifications of High Quality Bare 9.5mm Aluminum Rod Manufacturers for Electrical Purpose
TABLE 1-Textile Shield for Power Cable for 9.5mm Aluminum Rod
Purity |
Chemical Composition% |
|||||
AL |
Foreign Content,Maximum |
|||||
Si |
Fe |
Cu |
V+Cr+Mn+Ti |
Other |
||
Al99.60E |
99.6 |
0.08 |
0.20 |
0.005 |
0.01 |
0.3 |
| Type | Tensile Strength,N/mm² | Fracture Toughness%,Min | Electrical Resistance Ωmm²/m 20,Max |
| A | 60-80 | 25 | 0.02755 |
| A2 | 80-110 | 12 | 0.02785 |
| A4 | 95-115 | 10 | 0.02801 |
| A6 | 110-130 | 8 | 0.02801 |
| A8 | 120-150 | 6 | 0.02801 |
TABLE 2- Tensile Property Limits for 9.5mm Aluminum Rod
Temper |
Tensile Strength |
|
|
Ks j |
M pa |
1350-O |
8.5-14.0 |
59-97 |
1350-H12 and-H22 |
12.0-17.0 |
83-117 |
1350-H14 and-H24 |
15.0-20.0 |
103-138 |
1350-H16 and-H26 |
17.0-22.0 |
117-152 |
TABLE 3- Electrical Resistivity Limits for 9.5mm Aluminum Rod
Temper |
Resistivity |
Equivalent Volume Conductivity,% |
|
Max.Ω.mm2/m |
IACS Min. |
1350-O |
0.027899 |
61.8 |
1350-H12 and-H22 |
0.028035 |
61.5 |
1350-H14 and-H24 |
0.028080 |
61.4 |
1350-H16 and-H26 |
0.028126 |
61.3 |

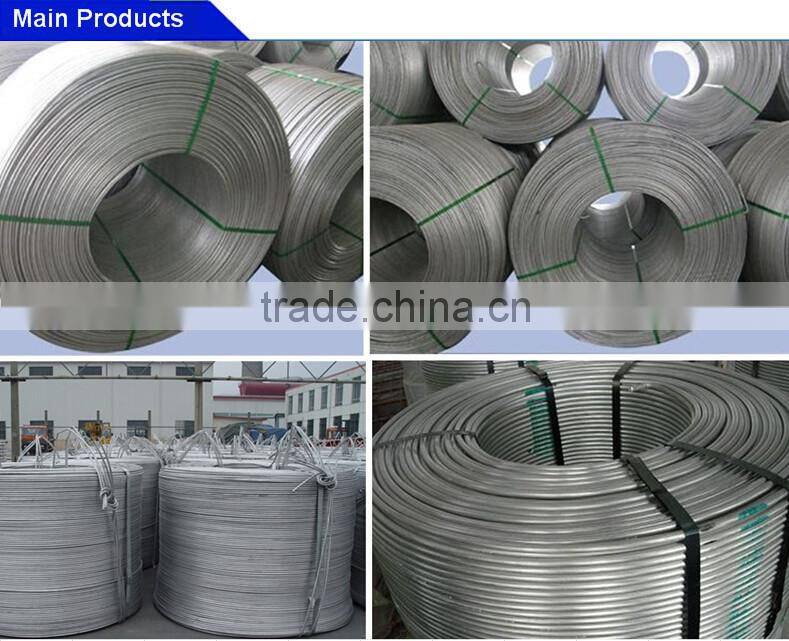

Product Show of High Quality Bare 9.5mm Aluminum Rod Manufacturers for Electrical Purpose

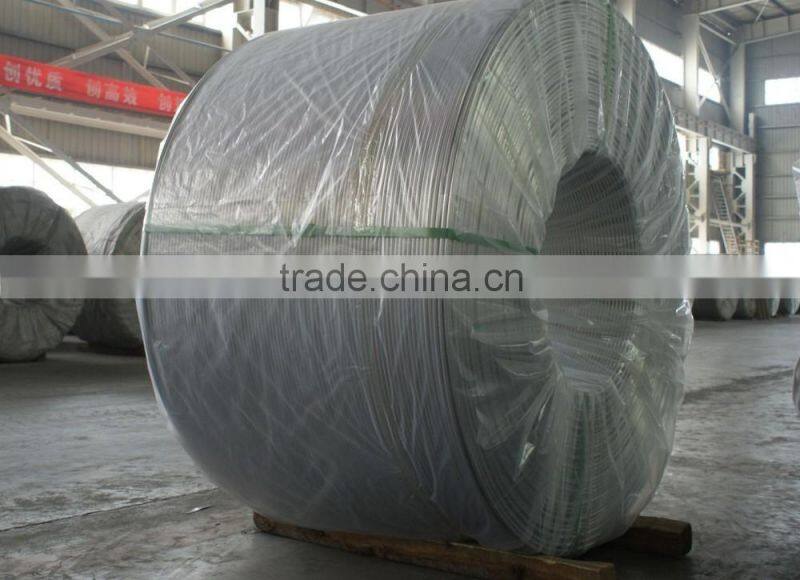

Packing Method of High Quality Bare 9.5mm Aluminum Rod Manufacturers for Electrical Purpose
1. The 9.5mm aluminum rod is usually packed with wooden drum
2. The 9.5mm aluminum rod will accept customer's requirement.
3. Delivery within 7-15 working days after your payment.
4.Supply and shin on time.

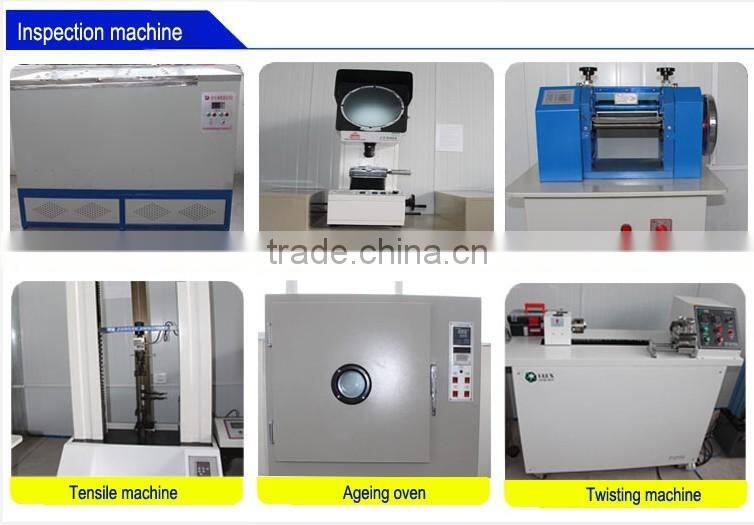

9.5mm Aluminum rod six inspection machine
We inspect every product before deliverying the goods to ensure the quality!
Our Service
1. Inquiries are typically answered within 12 hours and OEM is welcome.
2. We have experienced QC to control the quality of different kind of cables.
3. We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4.We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.
5. Huge Inventory Allows Us To Ship Your Order Immediately.
6. Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
7. We ship worldwide.
