Specifications
It is mainly used for drawing the core of wires and cablesThe surface of the rod is clean, smooth and seamless.

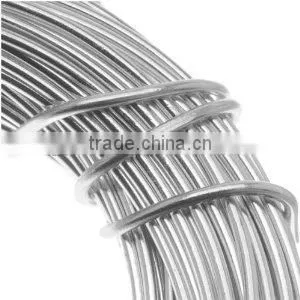

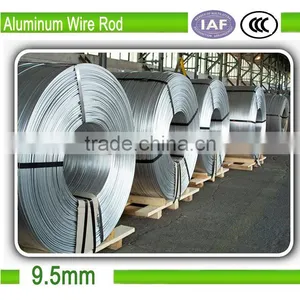

9.5mm bare Aluminium Wire Rod
Specifications
It is mainly used for drawing the core of wires and cables
The surface of the rod is clean, smooth and seamless.
Coil weight: large coil≤1000kg, small coil: 300--1000kg
Aluminum Rod was produced and provided by consulting and following the American standard ASTM B233 and Germany standard EN17152
1.Producing and providing the products according to Chinese standard GB/T3954-2001, and consulting and following the American standard ASTM B233:1997, and Germany DIN standard EN 17152:1997
aluminium rod
2.The Type,Condition and Range
Type |
Condition |
Range(mm) |
A |
o |
Φ9-20 |
A2,A4,A6,A8 |
H/R |
aluminium rod
3.The Mechanics and Electric Function
Type |
Tensile Strength (M pa) |
Percentage Elongation (%≥) |
Resistivity at 20°c (nΩ.m≤) |
A |
60-80 |
25 |
27.55 |
A2 |
80-100 |
12 |
27.85 |
A4 |
95-115 |
10 |
28.01 |
A6 |
110-130 |
8 |
28.01 |
A8 |
120-150 |
6 |
28.01 |
4.The Component of Material
Name of Element |
Si |
Fe |
Cu |
V+Ti+Mn+Cr |
Other |
Al |
Percentage % |
≤0.11 |
0.25 |
0.01 |
0.02 |
0.03 |
≥ 99.61 |
aluminium rod
5.Standard specification for Aluminum 1350 Drawing Stock for Electrical Purposes
TABLE 1- Tensile Property Limits
Temper |
Tensile Strength |
|
|
Ks j |
M pa |
1350-O |
8.5-14.0 |
59-97 |
1350-H12 and-H22 |
12.0-17.0 |
83-117 |
1350-H14 and-H24 |
15.0-20.0 |
103-138 |
1350-H16 and-H26 |
17.0-22.0 |
117-152 |
TABLE 2- Electrical Resistivity Limits
Temper |
Resistivity |
Equivalent Volume Conductivity,% |
|
Max.Ω.mm2/m |
IACS Min. |
1350-O |
0.027899 |
61.8 |
1350-H12 and-H22 |
0.028035 |
61.5 |
1350-H14 and-H24 |
0.028080 |
61.4 |
|
1350-H1 aluminium rod 6 and-H26 |
0.028126 |
61.3 |
