Hammer bolt slot 8 zinc plated
- 300000 Piece / Pieces per Month
- FOB NINGBO
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | MD | Model Number: | MD-HB-A08 |
Standard: | ISO |
Product Description

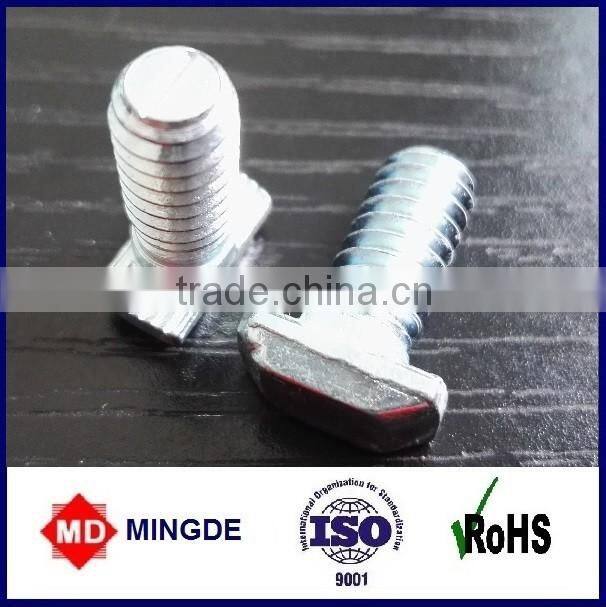

Hammer bolt slot 8 zinc plated
Class: 8.8
lts provide a high-strength convienent connection. Installs anywhere along the profile's T-slot and rotates into position.
1. Application: to connect profiles rectangularly to other profiles.
2. Features:
1) T-bolt can install anywhere along the profile's T-slot and swivel into position.
2) High-strength connection.
3) Self-aligning in T-slot.
3. Dimension drawing:
4. Order part No.
Part No. | Specification | L | H | Surface | Material | Weight |
MD-HB-A0801 | M8X20 | 20 | 1.5 | Zinc plated | Carbon steel C35 | 9.50g |
MD-HB-A0802 | M8X25 | 25 | 1.5 | Zinc plated | Carbon steel C35 | 11.50g |
MD-HB-A0803 | M8X30 | 30 | 1.5 | Zinc plated | Carbon steel C35 | 13.00g |
MD-HB-A0804 | M8X40 | 40 | 1.5 | Zinc plated | Carbon steel C35 | 16.00g |
MD-HB-A0805 | M8X20 | 20 | 3 | Zinc plated | Carbon steel C35 | 10.00g |
MD-HB-A0806 | M8X25 | 25 | 3 | Zinc plated | Carbon steel C35 | 12.00g |
MD-HB-A0807 | M8X30 | 30 | 3 | Zinc plated | Carbon steel C35 | 13.50g |
MD-HB-A0808 | M8X40 | 40 | 3 | Zinc plated | Carbon steel C35 | 16.00g |
5. Remarks:
1)Material: stainless steel,carbon steel available
2)Surface: zinc plated, nickel plated available
3)Packing: small box packing or bulk packing acc. to your requirement
4)we can also produce acc. to customer's drawing or samples.
The company's products include (but are not limited) the following:
1).Nuts: hammer nut; Roll in Tslot nut with spring loaded ball; Roll in T slot nut with spring leaf; Rhombus nut; square nut,flange nut etc.
2).Bolts: T bolt; hammer head bolt; countersunk crew, set screw, hex socket cap screw; rounded head screw etc.
3).Quick connector, Mitre connector.
4).T slot bar.
5).Plate with threaded hole; connector plate.
6).Stamping parts.
