Hammer Screw Steel Zinc Plated
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | MD | |
| Model Number | MD-HB-A08 | Standard | ISO |
Product Description

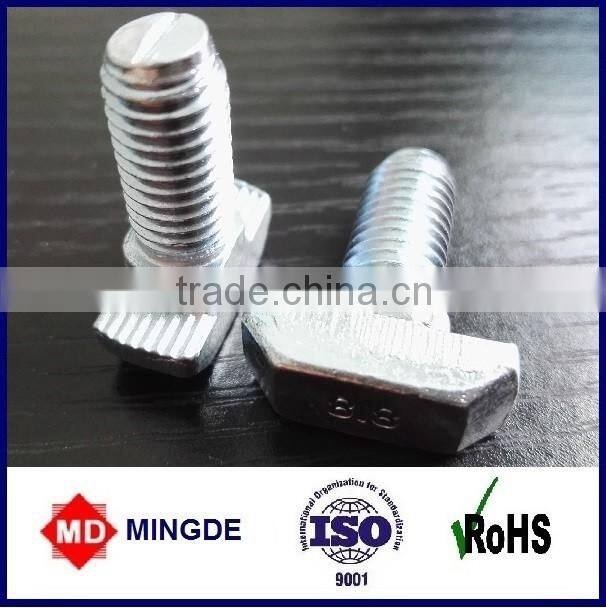

Hammer screw steel zinc plated
Class: 8.8
It provides a high-strength convienent connection. Installs anywhere along the profile's T-slot and rotates into position.
1. Application: to connect profiles rectangularly to other profiles.
2. Features:
1) hammer screw can install anywhere along the profile's T-slot and swivel into position.
2) High-strength connection.
3) Self-aligning in T-slot.

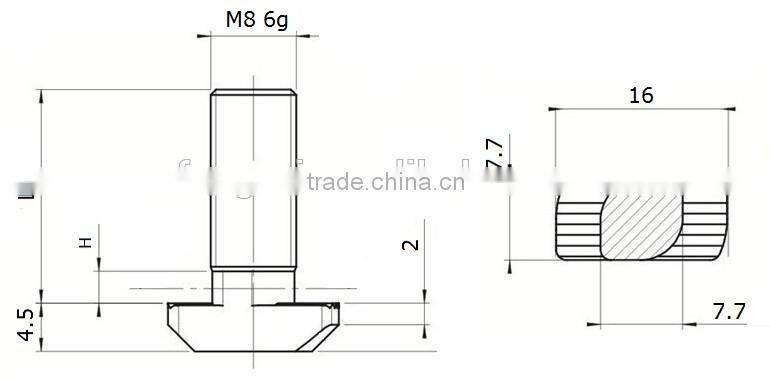

3. Dimension drawing:
4. Order part No.
| Part No. | Specification | L | H | Surface | Material | Weight |
| MD-HB-A0801 | M8X20 | 20 | 1.5 | Zinc plated | Carbon steel C35 | 9.5 |
| MD-HB-A0802 | M8X25 | 25 | 1.5 | Zinc plated | Carbon steel C35 | 11.5 |
| MD-HB-A0803 | M8X30 | 30 | 1.5 | Zinc plated | Carbon steel C35 | 13 |
| MD-HB-A0804 | M8X40 | 40 | 1.5 | Zinc plated | Carbon steel C35 | 16 |
| MD-HB-A0805 | M8X20 | 20 | 3.0 | Zinc plated | Carbon steel C35 | 10 |
| MD-HB-A0806 | M8X25 | 25 | 3.0 | Zinc plated | Carbon steel C35 | 12 |
| MD-HB-A0807 | M8X30 | 30 | 3.0 | Zinc plated | Carbon steel C35 | 13 |
| MD-HB-A0808 | M8X40 | 40 | 3.0 | Zinc plated | Carbon steel C35 | 16 |
5 Remarks:
1) we can also produce acc. to customer's drawing or samples.
2) Material: stainless steel available
3) Surface: zinc plated, nickel plated available
4) Packing: small box packing or bulk packing acc. to your requirement.
5) Small order qty is accepted, sampes are available upon request.
The company's products include (but are not limited) the following:
1).Nuts: hammer nut; Roll in Tslot nut with spring loaded ball; Roll in T slot nut with spring leaf; Rhombus nut; square nut,flange nut etc.
2).Bolts: T bolt; hammer head bolt; countersunk crew, set screw, hex socket cap screw; rounded head screw etc.
3).Quick connector, Mitre connector.
4).T slot bar.
5).Plate with threaded hole; connector plate.
6).Stamping parts.
