Home > Products > Profile Connectors > Aluminum profile slot 10 quick connector
Aluminum profile slot 10 quick connector
- 300000 Set / Sets per Month
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MD | |
| Model Number | MD-CC-C10 |
Product Description

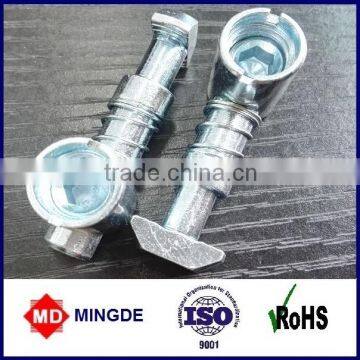

Profile quick connector
Application: To connect two aluminium profiles; a hole must be drilled through one of the profiles to provide access to the tightening screw
2. Dimension drawing:
3. Order Part No.
| Part No. | Specification | Surface | Material | Weight | Orientation |
| MD-CC-C1001 | 11.3x52 | Zinc plated | Carbon steel | 48.20g | 0° |
| MD-CC-C1002 | 11.3x52 | Zinc plated | Carbon steel | 48.20g | 90° |
4. Remarks:
1)we can also produce profile connectors for connecting profiles acc. to customer's drawing or given samples.
2)Surface: zinc plated or nickel plated available.
3)Packing: small box packing or bulk packing acc. to customer's reqirement.
4)Small order qty is accepted, samples are available upon request.
The company's products include (but are not limited) the following:
1).Nuts: hammer nut; Roll in Tslot nut with spring loaded ball; Roll in T slot nut with spring leaf; Rhombus nut; square nut,flange nut etc.
2).Bolts: T bolt; hammer head bolt; countersunk crew, set screw, hex socket cap screw; rounded head screw etc.
3).Quick connector, Mitre connector.
4).T slot bar.
5).Plate with threaded hole; connector plate.
6).Stamping parts.
