Zinc Plated Flange Nut
Negotiable
/ Piece
1000 Pieces(Min. Order)
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MD | |
| Model Number | MD-FN-A0001 |
Product Description

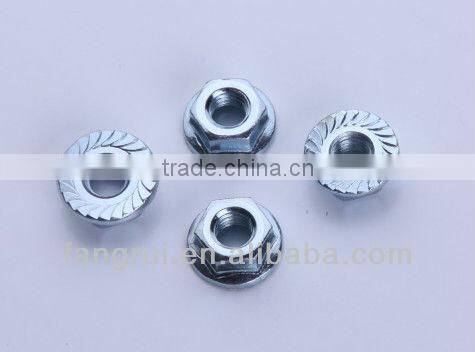

Product: flange nut with serrations
Specification: M4~ M12 available
Material: Steel or Stainless steel available
Packing: small box packing or bulk packing acc. to customer's requirement.

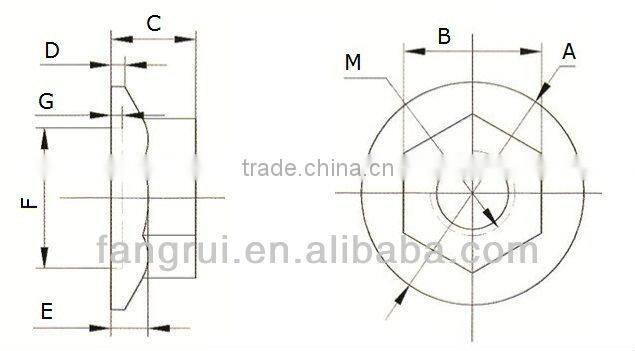

| Part No. | Specification | A | B | C | D | E | F | G | Surface | Material | Weight |
| MD-FN-A0001 | M4 | Φ9.7 | 6.8 | 4.3 | 1 | 1.6 | Φ6.5 | 0.3 | Zinc plated | Carbon steel | 1.20g |
| MD-FN-A0002 | M5 | Φ11.2 | 7.8 | 4.8 | 1.2 | 2 | Φ7.5 | 0.4 | Zinc plated | Carbon steel | 1.70g |
| MD-FN-A0003 | M6 | Φ13.7 | 9.8 | 5.9 | 1.2 | 2 | Φ9.15 | 0.4 | Zinc plated | Carbon steel | 3.10g |
| MD-FN-A0004 | M8 | Φ17.7 | 12.75 | 7.8 | 1.8 | 2.8 | Φ12.2 | 0.5 | Zinc plated | Carbon steel | 6.90g |
| MD-FN-A0005 | M10 | Φ18.6 | 14.00 | 8.9 | 1.8 | 3 | Φ13.2 | 0.8 | Zinc plated | Carbon steel | 10.00g |
| MD-FN-A0006 | M12 | Φ24.4 | 17.85 | 11.7 | 2.2 | 3.5 | Φ17.2 | 1.0 | Zinc plated | Carbon steel | 17.90g |
Manufacturer: Ningbo Mingde Aluminium Profile Accessories Co,Ltd
