Ultrasonic Thickness Gauge

Ultrasonic Thickness Gauge thumbnail-1
Ultrasonic Thickness Gauge thumbnail-2
Ultrasonic Thickness Gauge thumbnail-3
Ultrasonic Thickness Gauge thumbnail-4
Ultrasonic Thickness Gauge photo-1
Ultrasonic Thickness Gauge photo-2

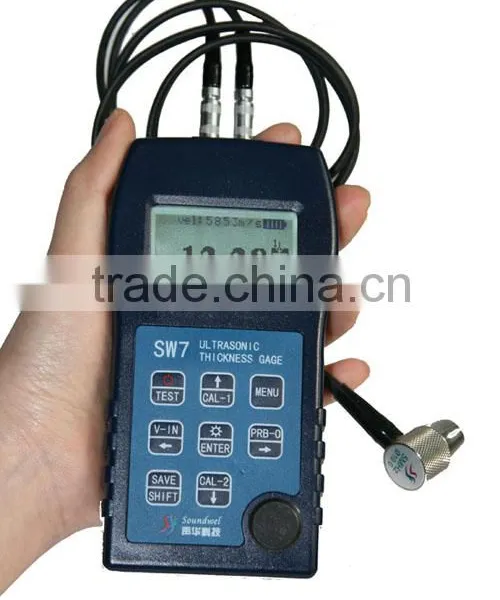

Ultrasonic Thickness Gauge photo-3

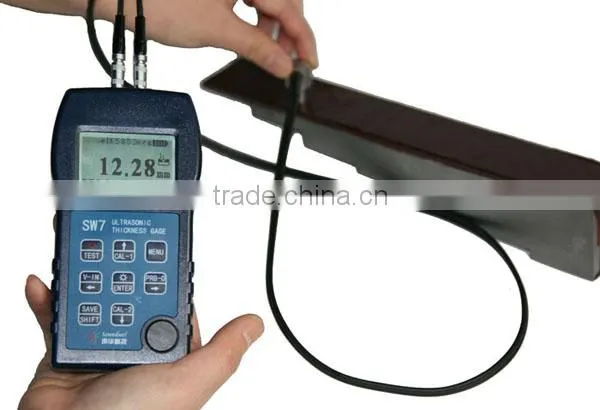

Ultrasonic Thickness Gauge photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Soundwel tech
Model Number:
SW7 series
Contact Supplier Request Quote Chat Now
Beijing Soundwel Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Soundwel tech
Model Number SW7 series
The SW7 series offers various practical measurement features, its high cost-performance ratio makes it is your ideal selection. such as Automatic Probe Recognition that recognizes transducer types, Field Calibration of all materials. Sound velocity range 509 up to 18699m/s, it makes the gauge is the requirement of most materials; Large data storage up to 2000 readings memory; Data output to PC; 4 digit LCD display with settings ; Backlight display for dark environment and adjustable.
1.  It can work without clear the coating and non metallic attachments on the measured object.
2. Automatic probe recognition and calibration functions
3. Wide range of material velocith 509-18699m/s
4. Large-capacity data storage can store up to 2000 readings
5. Data output to PC
6.  4 digit LCD display with settings ; Backlight display for dark environment and adjustable.

Product Specification:

Model
SW7
SW7A
Measurement Range
0.65~400mm
0.65~400mm
Measuring Rang(Through Coating)
3~20mm
3~50mm
Material Velocity Range
509~18699m/s
Measuring Accuracy
±(0.5%H+0.05)mm
Display Accuracy
0.01mm/0.001inch
Scanning Rate
2~20 times/sec
Frequency Bandwidths
1~10MHz
Measuring lower limit of pipes
Φ15mm×1.0mm (Probe: 5MHz, Φ10mm)
Φ10mm×1.2mm (Probe: 7.5MHz, Φ6mm)
Display Mode
128×64 matrix LED
Power supply
2  AA  Alkaline Batteries
Operating Time
280 hours typical battery life,
100 hours continuous with backlight on
Operating Temperature Range
-10℃~50℃(Ambient Environment)
-10℃~300℃(High Temperature Mode)
USB


Gauge Size
136 mm×72 mm×20mm
Weight
176g(Including Batteries)

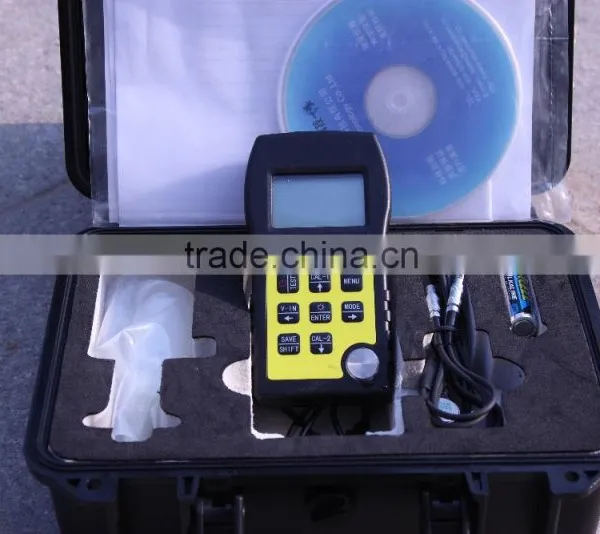

  Configuration:




No.
Item
Quantity
Note
Standard Configuration
1
Main body
1

2
Transducer
1
5MHz, Φ10mm
3
Couplant
1
30ml, Glycerin
4
Instrument Case
1

5
Operating Manual
1

6
Alkaline battery
2
AA size
7
USB Cable
1

8
Software Disk
1

Optional Configuration
9
Wide-range transducer:2.5MHz, Φ12mm

3~400mm(-10~50℃)
10
High-precision transducer:7.5MHz, Φ10mm

0.65~100mm(-10~50℃)
11
Micro-diameter transducer:7.5MHz, Φ6mm

0.75~60mm(-10~50℃)
12
Cast iron transducer:2MHz, Φ12mmor Φ22mm

3~50mm(-10~50℃)
13
High temperature transducer:5MHz, Φ12mm

4~80mm(-10~350℃)
