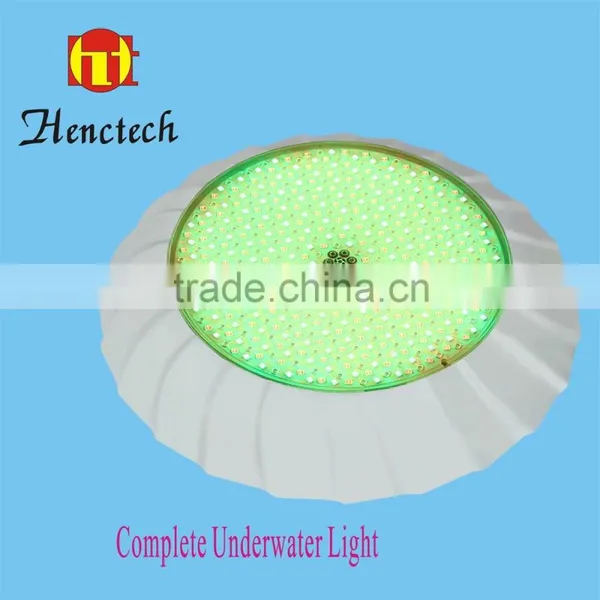

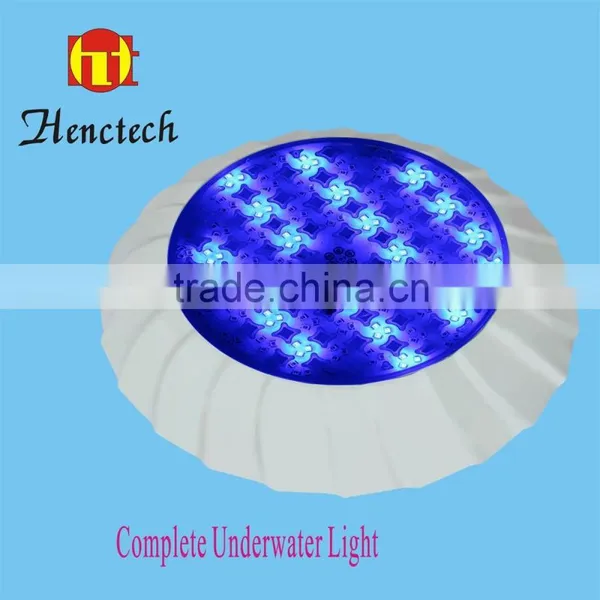

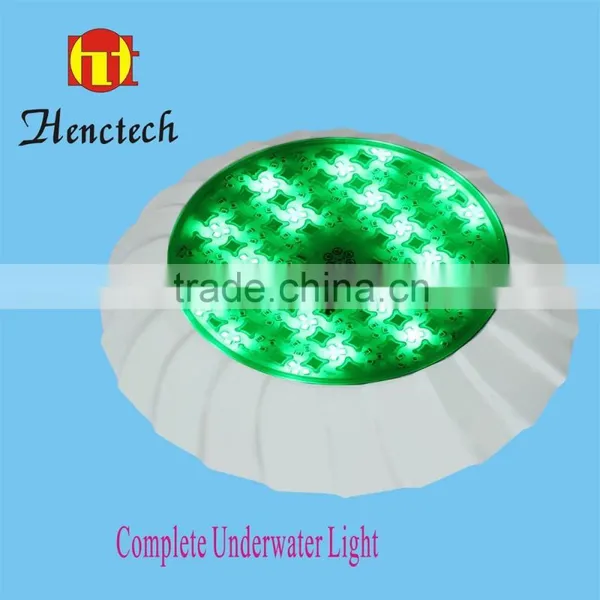

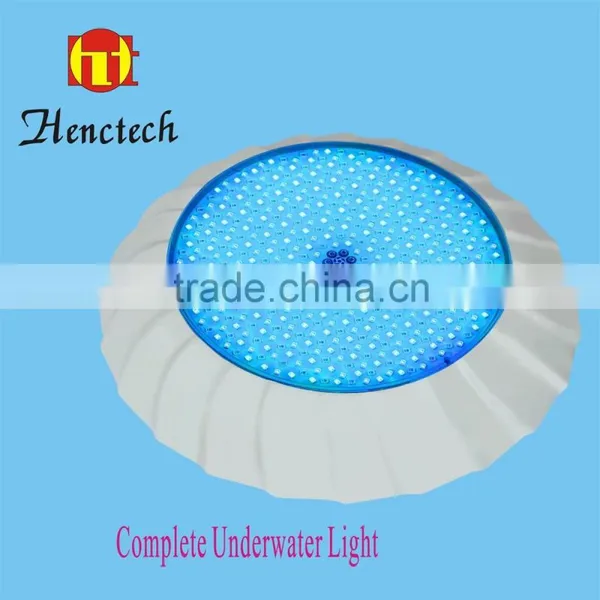

Help Center12V/40W Wall Mounted Resined IP68 LED Underwater Swimming Pool Light HT003C-P for Concrete Pools, Liner and Fiberglass Pools
Related Products
-
2016 HENTECH 316 Stainless Steel 100% Resin Filled LED Underwater Light 3 Years Warranty AC/DC 12V IP68 Quality ChoiceUS$ 50 - 120MOQ: 10 Pieces -
LED Pool Lighting Resin Filled IP68 Working Hours up to 100,000 HoursUS$ 60.00 - 60.00MOQ: 50 Pieces
-
LED Pool Lighting Resin Filled IP68 Working Hours up to 100,000 HoursNegotiableMOQ: 1 Piece
-
2016 Hentech High Power 40W/60W 12V LED Pool Light Resin Filled PAR56 Worldwild Standard Replace Bulb IP68 3 Yeard WarrantyUS$ 40 - 75MOQ: 10 Pieces
-
Fashion Design LED Pool Light IP68 3 Years WarrantyNegotiableMOQ: 1 Piece
1. Typical features:
(1) Our lights are filled epoxy inside the lamp, whiches make the lights 100% waterproof;
(3) Multi color changable, can be controlled by the remote controller;
(4) High temperature protection guarantees the long life of LED;
(5) No niche, easy to install;

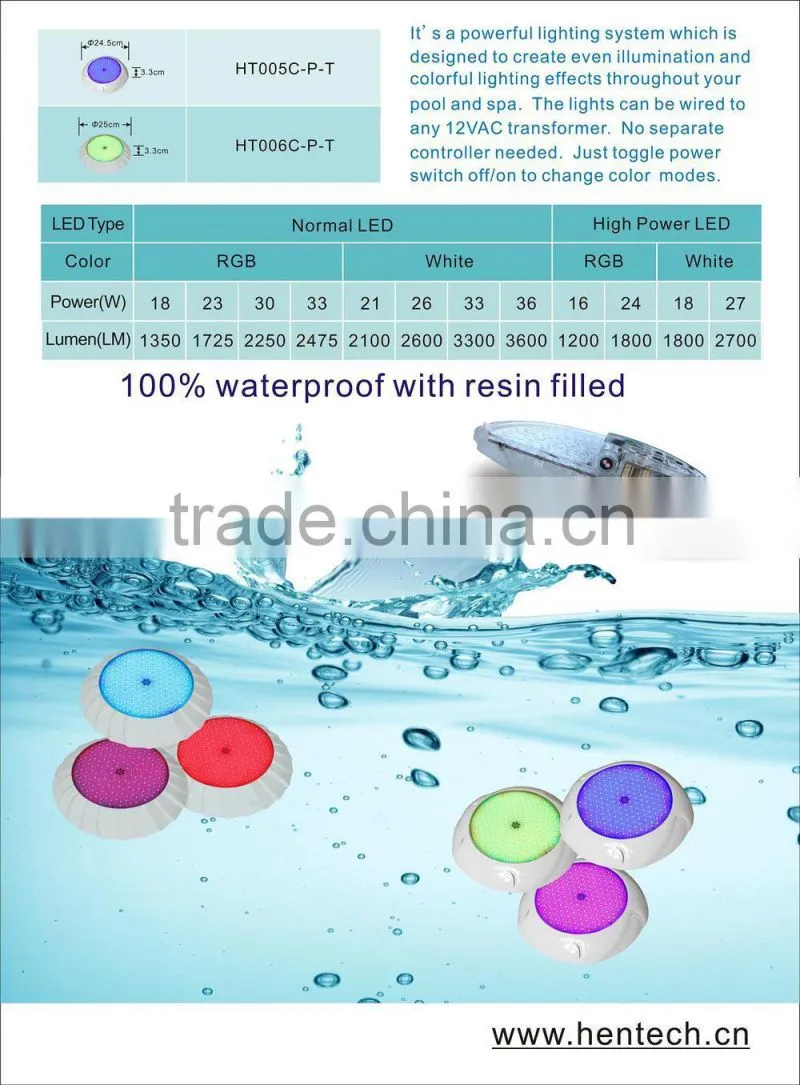

(6) 18W, 23W, 30W, 33W, 40W are available.
2. Parameter:
| Working Temperature | -20C to +80C |
| Working Humidity | 10% to 90% RH |
| Electric Parameter | |
| Input Voltage | AC/DC12V |
| Input Current | 1000mA |
| Dynamic Current | < 800mA |
| Power | 18W to 40W |
3. Color Mode (16 programs of RGB LED bulb):
1. White: sun white
2. Red: one color red
3. Green: one color green
4. Blue: one color blue
5. Green-blue: fixed color green/blue
6. Red-green: fixed color red/green
7. Blue-red: fixed color blue-red
8. Evening sea: slow animation red/blue
9. Evening rivers: slow animation red/green
10. Riviera: slow animation green/blue
11. White: neutral white
12. Rainbow: slow animation blue/red/green
13. River of colors: program 12, followed by program 15
14. Disco: fast animation
15. Four seasons: slow animation in red/blue/green/violet
16. Party: fast animation
4. Description:

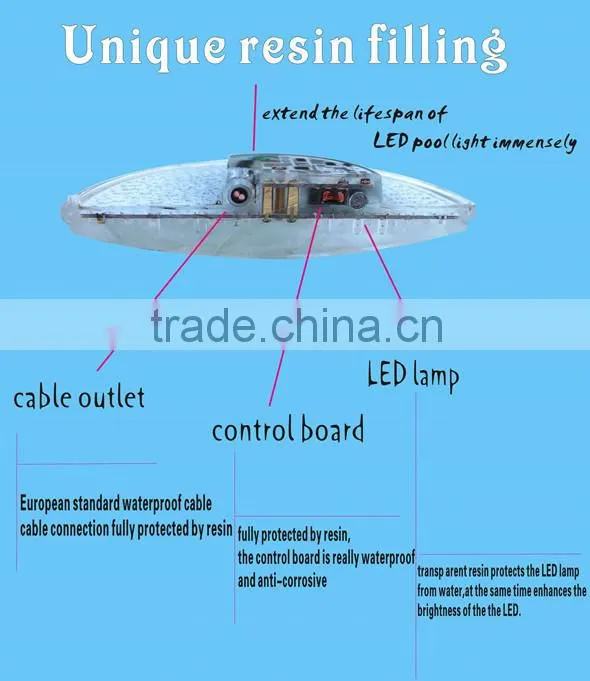

This is a high technology electronic controlled light based on LED’s in three colors: red, green and blue. These three base colors together can produce many other colors to create the perfect atmosphere in the pool. Any of the16preprogrammed effects can be selected with the on/off switch of your pool lights. The LED’s can also be warm white only or natural white only. The LED’s are driven by constant current. The technology of True PWM is adopted on the lights. High temperature protection makes the LED’s be protected while the internal temperature reaches a high level. All these technologies guarantee long working life of the LED lamps. fully with resin, the lights are completely waterproof, and they must be used / operated while fully submerged underwater only.
5. Installation:
All lamps should be placed on the wall of the pool at approximately 700mm below the water surface, in areas that are easily accessible from the upper edge of the pool.
It is highly recommended to use the underwater cable gland
• All lamps should be installed on the same transformer and switch.
• The lamp is supplied with cable of 2m, 4m, 6m, 10m, 16m or 20m according to the need of the user, making it possible to install multiple lamps connected to a single junction box.

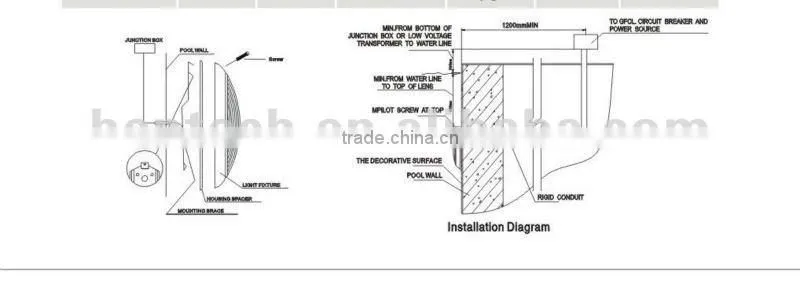

Dissemble the bracket from the back of the lamp. Place the bracket over the desired location, mark the holes, drill the holes, insert the roll plugs, and fasten the bracket on the pool wall using the stainless steel screws provided. Wind the cable behind the lamp, and then fasten the lamp on the bracket. See drawings on last page for more detail.
6. Packing Contents:
The following items are included inside the box:
Models HT006C-P-T |
Models HT001C-P-T |
Models HT002C-P-T |
|
Lamp Assembly x 1 Stainless steel screws x 4 Roll plug x 4 |
Lamp Assembly x 1 Rubber ring x 1 Stainless steel screws x 3 Roll plug x 3 |
Lamp Assembly x 1 Rubber ring x 1 Stainless steel screws x 2 Roll plug x 2 |
7. Application:
