Whiteboard Type Interactive Whiteboard
Folded No
Brand Name NHII
Model Number TGU83
Place of Origin China

Specifications

NHBoard touch sensitive whiteboard is made of a flexible film, 2 resistive films and a hard backboard

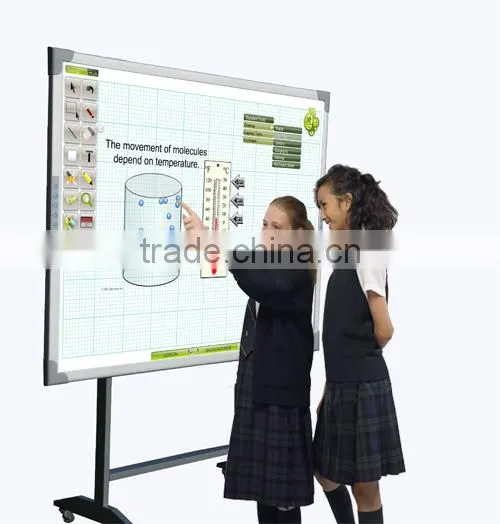

Touch Sensitive Interactive Whiteboard





                    Touchsensitive whiteboard

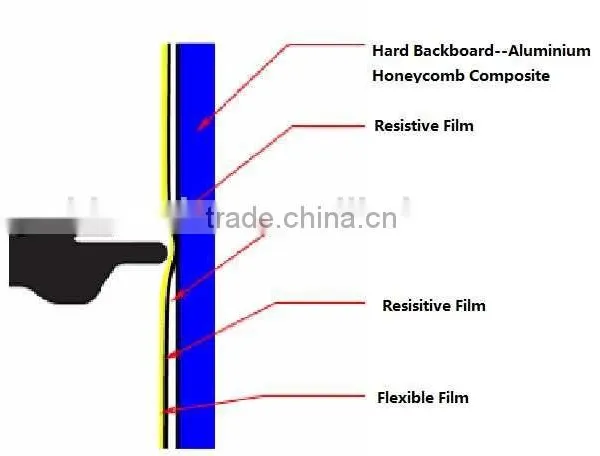

Working Principle:

NHBoard touch sensitive whiteboard is made of a flexible film, 2 resistive films and a hard backboard. The back of flexible film and the front of the hard backboard have a resistive film respectively and there is a tiny air gap between them. The air gap would be closed when pressure is applied to the surface. The two resistive films touch at one point, which converted to a serial data stream and then send to a computer for further processing. It is finger and pen with soft stick system..




 Touchsensitive whiteboard

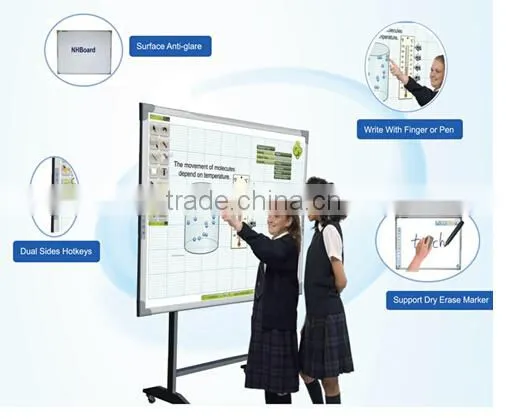

Features of Hardware:



 Touchsensitive whiteboard

  1. The frame is made from silver-aluminum and eco-friendly material;
  2. the surface is made from new nano technology stearin wear-resistant paint sub-light projector film, tear proof, high-definition, easily cleaned (Board cleaner or wet cloth), no projection light spots, easily writing on, and chemical resistant.
  3. The back of board is made of aluminum honeycomb board, non-transformable, impact resistance, and lasts as long as 10 years. With 10m USB cable, the connection with computer is faster;
  4. It  is easy to install it. You can hang it, pull it, use lifting support, or move it at your will. You can choose the surface material which supports both projector and water-color paint brush and 25 meters long USB cable.

Features of Software:















1.Powerful functions:

  • Writing Function, Annotation Function, Control Function.
  • Smart Drawing Function: Hand-drawn graphics can be recognized into standard ones automatically, including line, circle, ellipse, triangle and quadrangle.
  • Edit Function: The system can edit any objects on the whiteboard with functions as follows copy, paste, move, delete, mirror, flip, merger, split, lock, layer adjust, zoom in/out and rotate, save and set hyperlink etc.
  • Handwriting Recognition Function:our handwriting can be recognized into standard font. Including traditional Chinese, simplified Chinese, punctuation, radicals of Chinese characters, English, digits etc.
  • Screen Record Function:  Operation on the whiteboard can be recorded and save it in the "avi" format; No camera needed.
  • Replay Function: All the operation on the whiteboard can be replayed directly without any other particular player.
  • Curtain Function: The screen curtain can be moved from up-down and right-left direction. It can cover the specified area and leave the needed information, which is very convenient for demonstration.
  • Move Page Function: Users can move the page up & down and backward & forward.
  • Camera Function: Users can make a screenshot of images including partial or complete image on the whiteboard and save them as electronic data for further use. More functions,please contact with us by email or phone.

2.Wealth of teaching and learning resources.

3.Easy, direct and convenient opeartion.
4.Mulit-language support.

Our NHBoard touch sensitive whiteboard software helps you writing, drawing, marking, noting on videos and PPT at your will, and makes the screen more vividly by drawing curtain, spotlight, zooming, etc. What’s more magical is that it can auto-record all your work and replays the whole process. Our NHBoard software helps you in expressing your idea well and maximizes the effect of education, training, conference and speech.

We sincerely recommend NHBoard IWB in conference, high education and other fields. It is the substitute product of blackboard, common white board, curtain and rear projection TV, and it is also a mast in interactive teaching and product demonstration.

Specifications of NHBoard Touch Sensitive Whiteboard



 Model

 TGN70/TGU70

 TGN83/TGU83

 TGN100/TGU100

 TGN115/TGU115

 Physical Size

(mm)

 1390×1065×20

69 inch

 1675×1279×20

83 inch

2193×1273×20

100 inch

2525×1460×20

115 inch

 Active Size

(mm)

 1298×973

64 inch

 1608×1198

79 inch

 2101×1181

95 inch

2433×1368

110 inch

Packing Size

(mm)

1470×1145×100

1755×1359×100

2273×1353×100

2605×1540×100

Aspect Ratio

4:3

4:3

16:9

16:9

Net Weight

(KG)

20

24

33

39

 Packing Size

(KG)

25

30

40

49
Working Principle  Touch Sensitivity
Writing Way Pen, finger or other blunt objects
Board Surface  Adopts special hard-coated polyester, the surface is clear, tear proof. (Water whiteboard film is available. Use board cleaner to remove)
Interface Standard USB 2.0 Cable
Resolution  9600*9600
Calibrate Accuracy ≤1mm
Processing Speed 500 dots/second
Tracking Speed 5m/Second
Power Supply USB
Power Consumption  ≤1W
Operating System  Windows98/2000/2003/xp/vista/window7
Temperature  Working Temperature:-15-50℃  Storage Temperature:-40-50℃
Humidity  Working Humidity:20-90%  Storage Humidity:10-95%
Standard Accessories Whiteboard Pen 2 pcs, USB cable 1 pc, Wall Mounted Bracket 1 set, Driver CD (software and user guide) and User's Manual.
Optional Accessories  Mark Pens 2 pcs, Eraser 1 pc,Mobile Floor Stand, Mobile Floor Stand with Projector Mount, Wall Mounted Projector Mount
Certificates  CE, FCC, C-tick and ISO.
Warranty  3 years



                Note: 1. Size error: ±3mm, Weight error: 1Kg. The shape and standard are subject to change without prior notice.

                2. Difference of TGN and TGU Series:The TGN series can not support dry eraser function, TGU series support

                                       dry eraser function.
