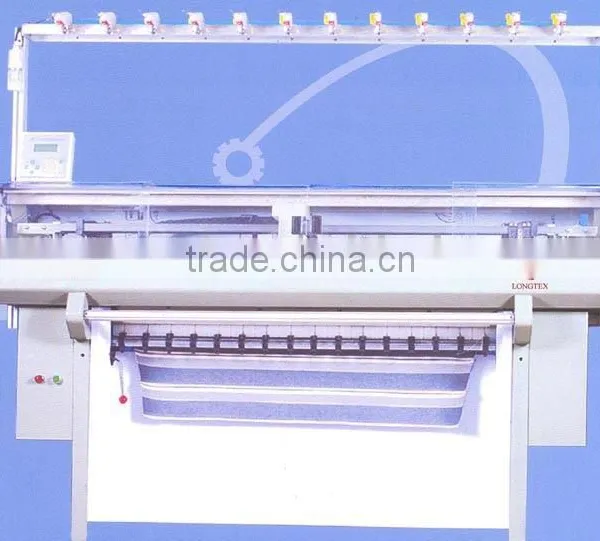

Computerized Flat Knitting Machinery

Name: Computerized Flat Knitting Machinery
Brand: LONGTEX
SKU: 113376099

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Product Type:

Collar

Type:

Jacquard

Yantai Longyu Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Collar

Type Jacquard

Place of Origin Zhejiang, China

Brand Name LONGTEX

Model Number LT868B-

Knitting Style Flat

Knitting Method Single

Computerized Yes

Weight 480kg/400kg(54")

Dimension(L*W*H) 2250*7500*1900(54")

computerized flat knitting machinery

type	LT868B-32 LT868B-54 LT868B-66 LT868B-80 collar knitting machine
gauge	5G 6G 7G 9G 10G 12G 14G 16G
width	32,54,66,80 inches
knitting speed	Controlled by frequency conversion to adjust speed,6 grade speed ,Max.Speed: 1.2m/sec( speed can change according to the needles, yarns, fabric and other condition)
color system	6 colors, change color half line
Knitting system	single head, one system
needle	high and low butt needle,high and low butt jack, it can knit pane,pepper and salt,strip cord and so on
Density	Controlled by stepper motor, 8 levels density, can be adjusted from 000-370.
Needle bed movement	Moving at 7 grade, operate bed one or half stitch in any direction by steping motor
roll system	multistage combined type roll ntroled by DC electric machine, 4 grade to adjust.
transmission mode	frequency control, synchronous belt moves back and forth,proximity switch control move route
auto stop advice	yarn broken, knot fabric, fall yarn, floatingback-roll, needle broken, one piece finished,motor overload
Pilot lamp	green: regular working, Yellow: irregular working and stop, Red: regular working and stop
safty cover	whole machine covered by transparent plexiglass, saftey, low voice.
computer control system	Controlled by the computer program,LCD large screens display, data input,showing in both English and Chinese
power	AC220V±8%50HZ 0.3KVA OR 110V
packing size	225075001900(54")
gross/net weight	480kg/400kg(54")
