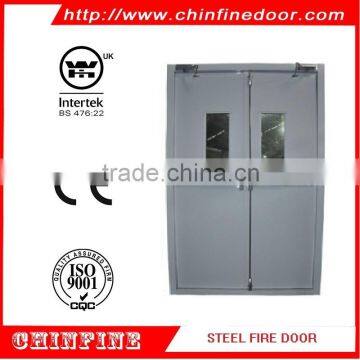

Double Steel Fire Door With BS and UL Certificate (CF-F009)
US$ 80 - 160
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHINFINE
Model Number:
CF-F008
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL Listed Steel Fireproof Door With UL Certificate CF-F10US$ 80 - 160MOQ: 50 Pieces -
Steel Fire Door With Louver (CF-F010)US$ 80 - 160MOQ: 50 Pieces
-
WH Approved Steel Fire-proof Door With Vision Panel and Louver(CF-F010)US$ 80 - 160MOQ: 50 Pieces
-
Steel Fire Rated Door With EN Certificate CF-F006US$ 80 - 160MOQ: 50 Pieces
-
Stainless Steel Fire Door With BS and UL Certificate (CF-F028) Quality ChoiceUS$ 150 - 200MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
CHINFINE
Model Number
CF-F008
Open Style
Swing
Position
Exterior
Surface Finishing
Finished
Type
Entry Doors
Door Material
Steel
Double Steel fire door with BS and UL certificate
1) Material: galvanized steel with powder coated
2) Door frame outer dimensions(H*W): 2050/2100/2150/2200*1500/1600/1700/1800/1900/2000/2100mm or customized
3) The doorleaf thickness:50/70mm;
4) The door surface panel thickness:0.8-1.0mm
5) The door frame steel thickness:1.8-2.0mm
6) Opening direction: outward
7) Hinge position: on left / on right
8) Doorsill:painted or stainless steel doorsill(stepped)
9) Hinge:4pcs 180 degree visible fire-proof hinge
10)Handle:Push(panic) bar exit device with lever(knob) handle or
normal mortise fire lock with profile cylinder&keys and with
lever handle
11)Filled material:Siliacte-Aluminium board(Ceramic fiber board ),perlite board
or Magnesium Oxide Board( Density ≥ 290KGS/M³ )
12)Packing: Foam plastic pad + bubble bag and export outer box
13)Fire rate:0.5H;1.0H;1.5H,
14)Keep in complete form by≥950°C
15)Back side doorleaf average temperature is about 83.3°C after 1.2H or longer time burning
16)Fire-proof seal arount the door
17)Louver:W or W/O
18)Fireproof Glass:W or W/O(A type:28MM thick,2pcs temper glass filled fire-proof glue)
17) Color:Doorleaf and frame powder coated in RAL color
18)Delivery lead time:20~25days
19)Loading QTY:120PCS/20FC; 308PCS/40HQ
20)Payment:T/T or L/C at sight
21)Delivery port: Ningbo or Shanghai
THE DETAIL PICTURES OF FACTORY
DETAIL SPECIFICATION OF FIRE DOOR
1 |
Steel sheet of door panel |
1.0mm galvanized steel |
2 |
Steel sheet of door frame |
2.0mm galvanized steel |
3 |
Frame outer sizes (HxW) |
customized size |
4 |
Thickness of the door leaf |
50 mm |
5 |
Opening direction |
Left outside / Right outside |
6 |
Inner filling material |
Siliacte-Aluminium board/OMG board |
7 |
Rubber sealed |
Fire-proof rubber sealed strip around the door |
8 |
Door sill |
High quality stainless steel threshold |
9 |
Doorbell |
Without |
10 |
Peephole |
Whitout |
11 |
Hinges |
4PCS Galvanized steel hinges |
12 |
Surface treatment |
Bright, lustrous and durable appearance, the door surface via acid cleaning phosphorizing antirust processing Heat-transfer printing on surface: looks like the natural wooden grain. Or powder coating on surface in RAL color |
13 |
Lock |
Normal fire lock or painc(push) bar exit device lock,Master key is available |
THE DETAIL PICTURES OF FIRE DOORS
