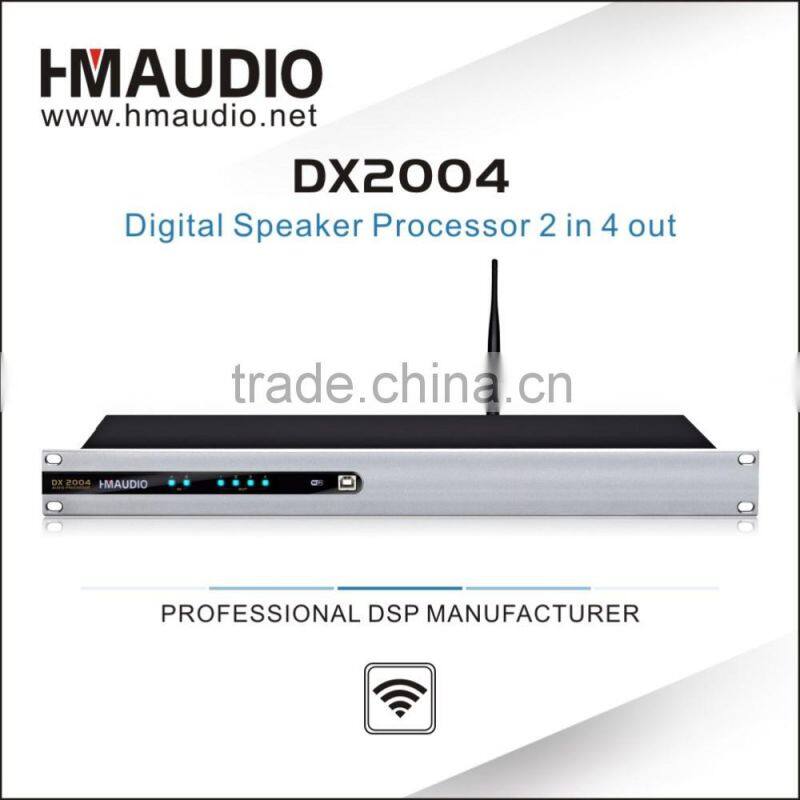

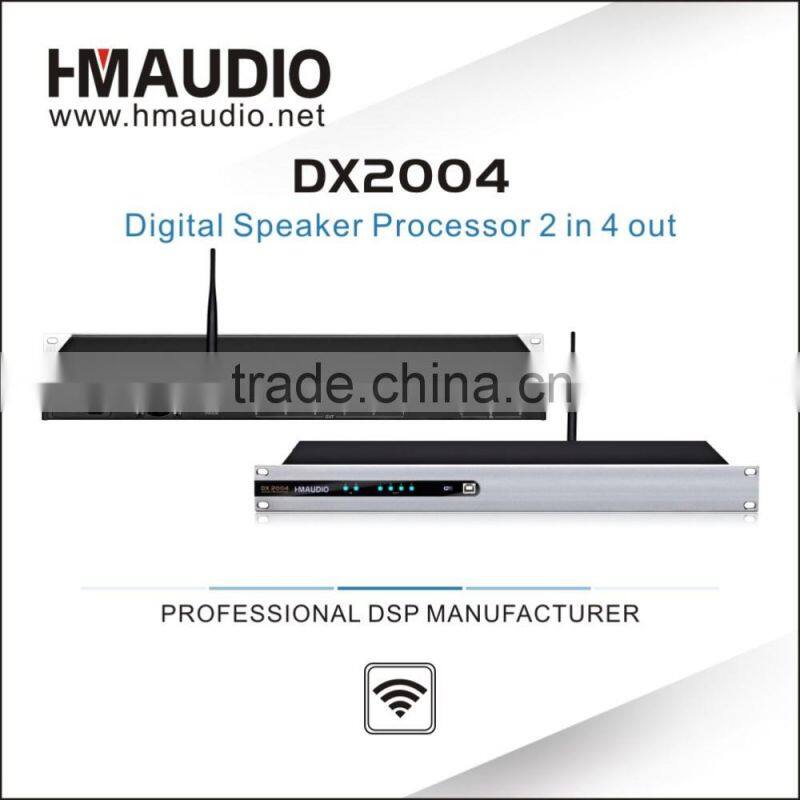

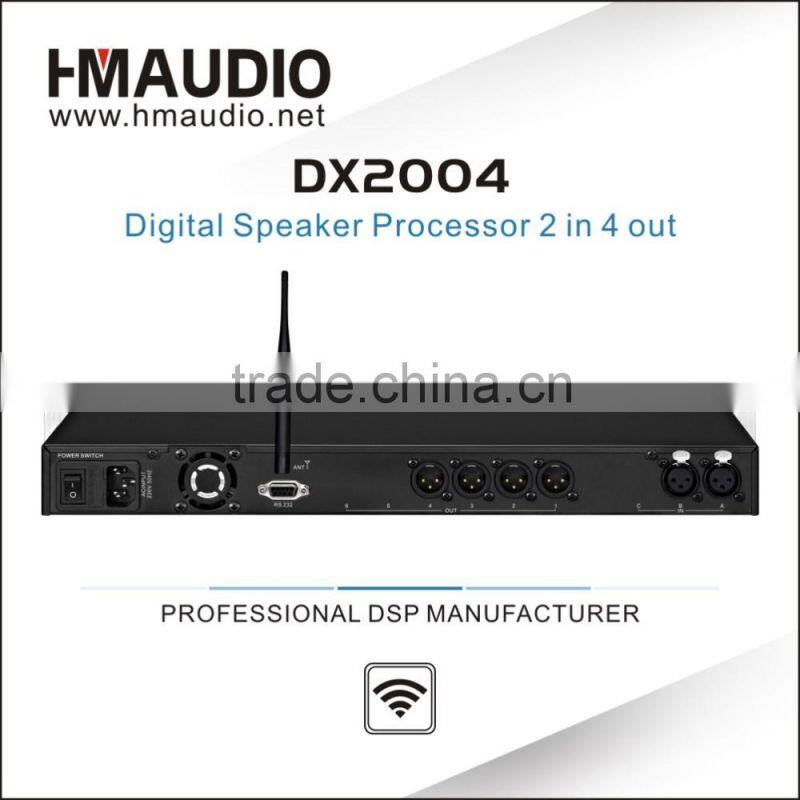

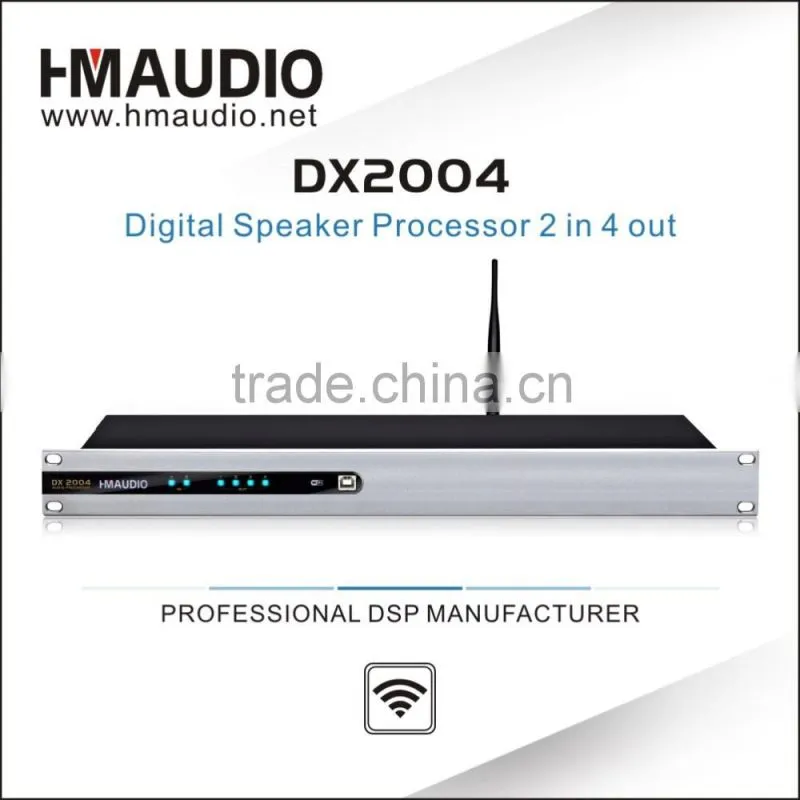

DX2004 Audio Processor Speaker processor Pro audio equipment
Features
1, 96KHz sampling frequency, 32-bit DSP processor,24-bit A/D and D/A converter;
2, USB, RS232 and wifi interface are housed, and supports central control.
3, 20 kinds of data are available.
4, 6 bands PEQ and Gain (±20dB) are for each channel; PEQ, Lo-shelf and Hi-shelf
are for output channels.
5, HPF/LPF: 12dB,18dB,24dB or 48dB , and the crossover type: Bessel ,Butterworth, Linkwitz-Riley;
6, Independent control of HPF and LPF.
7, Time delays(up to 1000ms), phase and mute are for each channel. Unit of delay time: ms, m, or ft.
8,Output channel contains gain, limiters and signal route. And choose several output channels then can adjust all parameters.
9, Equipped with PC software.
Technical Parameter
Model |
DX2004 DX2006 DX3006 |
|
Input/Output channel |
2 Input/4Output 2 Input/6Output 3 Input/6Output |
|
Input Impedance (Ω) |
Balance: 20KΩ |
|
Output Impedance (Ω) |
Balance: 100Ω |
|
PC port |
With 1 USB port |
|
CMRR |
>70dB (1KHz) |
|
Input range |
≤+18dBu |
|
Frequency |
20Hz-20KHz (-0.5dB) |
|
S/N |
>110dB |
|
THD |
<0.01% Output=0dBu/ 1KHz |
|
Separation |
>80dB(1KHz) |
|
Input channel |
Mute |
|
Delay |
Delay,adjust range:0-1000ms. |
|
Polarity |
In phase(+)&reversed phase(-) |
|
PEQ |
6 bands PEQ, Freq:20Hz-20kHz, band width:0.05-3oct. Step:0.05oct, Gain: ±20dB, Step: 0.1dB |
|
Output channel |
Mute |
|
Select |
Each output channel can be individually select different input channels, you can select any combination of input channels. |
|
Gain |
Adjust range:±12dB, Step: 0.1dB |
|
Delay |
Delay, adjust range:0-1000ms. |
|
Polarity |
In phase(+)&reversed phase(-) |
|
PEQ |
Each output channel with 6 bands PEQ: 3 Mode: PEQ /Lo-shelf /Hi-shelf |
|
Freq |
LPF,HPF,mode:Linkwitz-Riley/Bessel/Butterworth,FREQ:20Hz-20KHz,(Slop):12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct |
|
Limiter |
Gate level:±20dB,Step:1dB,Start time:0.3ms-100ms.<1ms, Step:0.1ms;>1ms, Step:1ms Release Time is the 4,8,16,32 Times of Start Time |
|
Processor |
96KHz sampling frequency, 32-bit DSP chip processor,24-bit A/D and D/A converter;
|
|
Consumption |
≤25W |
|
Power |
AC 110V/240V 50Hz/60Hz |
|
Weight |
Gross Weight 3.15kg |
|
Dimensions(W*H*D) |
Package: 570*260*90 mm |
|
FAQ:
Q1.Why us?
A.We specialize in R&D and manufacture of high-performance professional DSP audio products,such as professional audio processors,karaoke processors,professional amplifiers,karaoke amplifiers,power supply sequencer,power amplifier modules,mixer,equalizer,feedback exterminator and so on,with highly quality and competitive prices.
Q2.What’s your payment term?
A. We accept T/T,30% deposit at first and 70% balance needs to be paid before shipping.
Q3. How long is the delivery time?
A. Usually 25-35days for production. 1 day for sample delivery if it’s available in stock.
Q4. What’s your standard package?
A.Bubble wrap packaging inside and carton packaging outside.
Q5. How long is your product warranty?
A. 2years.
Q6. Could you do OEM/ODM for customers?
A. Yes,from the product design to packaging,our engineers can design exactly as your requirements.Any kind of logo printing or design is available ,If your order quantity is good .
Q7. What kind of certificates do you have ?
A.Our company has been awarded 3C, CQC, ISO,CE and ROHS.
