Feature of Professional digital power amplifier for stage (FP7000):
1.The series is a new, high efficiency and high power switching power amplifier with good quality performance
2.Second-generation Class TD circuit topology, maintaining a pure analog amplifier style
3.Using third-generation voltage switching power supply, instant communication of voltage fluctuations can be maintained stable and strong power output
4.Selection of high-quality adjustable potentiometer, minimize the connection between the wire and the interface module.

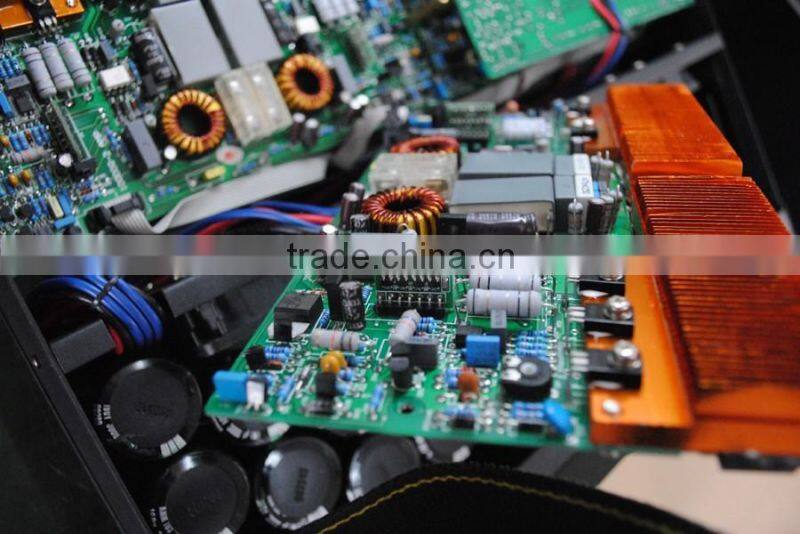

5.Power tube connected directly to the heat sink to reduce the resistance of the power tube
6.Using SMD chip technology, performance and stability
The details as follow:

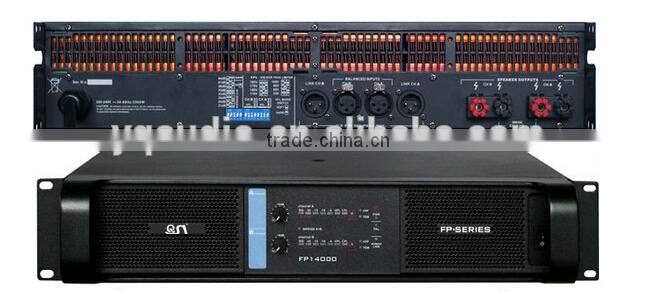

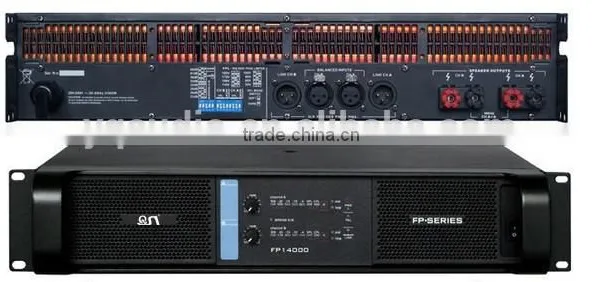

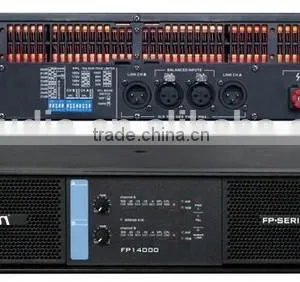

| Model | FP10000Q | FP8000Q | FP14000 | FP9000 | FP7000 |
| Rated Power(8Ω) | 1350W*4 | 800W*4 | 2350W*2 | 1800W*2 | 1500W*2 |
| Rated Power(4Ω) | 2100W*4 | 1600W*4 | 4400W*2 | 3000W*2 | 2800W*2 |
| Rated Power(2Ω) | 2500W*4 | 2000W*4 | 7000W*2 | 4500W*2 | 3500W*2 |
| Bridge Power(8Ω) | 4200W*2 | 3200W*2 | 8800 | 6000W | 5600W |
| Bridge Power(4Ω) | 5000W*2 | 4000W*2 | 14000 | 9000W | 7000W |
| Frequency Response | 20Hz-34KHz(+0/-0.3dB) | ||||
| THD | ≤0.1% | ||||
| S/Nor | ≥112dB | ||||
| Damping Ratio | ≥800 | ||||
| Slew Rate | ≥10V/μs | ||||
| Impedance | 20KΩ/10KΩ | ||||
| Sensitivity | 0.775V/1V/1.4V/38dB/32dB/26dB | ||||
| Separation | ≥65dB | ||||
| N./W. | 15.7KG | 15.5KG | 13.4KG | 13.4KG | 13.4KG |
| Product size | 483W*448D*88H | 483W*396D*88H | |||
| Package size | 595W*565D*170H | 560W*500D*180H | |||
Our company:
Area: 10000 square meter
Worker: more than 200 rich experienced technicians
History: more than 8 years ----------- We are a global marketing factory
Certificates: ISO9001(2008), RoHS ,CCC, FCC, CE,SGS
Market: western European,north American,middle-east Australia, east-south Asian , etc.
Our promise:pay more attention to product quality than you
We will reply you any question within 24 hours
1>. What’s your warranty period?
All our products have three years warranty on free charge, in case the amplifier is burned in the future, please tell me issue describe, then give us your repair instruction with picture,
please just ask your technician to replace burned components, then solve problem.
Of course, we will provide technician support for over three years products, but you should pay for spare parts and shipping cost at that time.
2>. What’s your payment term?
For the sample order, we can accept T/T, Western Union, MoneyGram or Paypal.
But for the Batch order, we support Payment term by T/T
( 30% deposit in advance, balance 70% before shipment ).
3>. How many days you could deliver?
For the sample order, we could send by Express upon receipt of this funds. You could receive them approx 3-5 days after we receive the deposit.
For the batch order, we will produce on the premise of guarantee quality as soon as possible.
4>. What's mode of transportation?
For the sample order, we will deliver by Express, like DHL, Fedex, TNT and EMS.
Of course, it is more economical by sea for batch order.
5>. How to contact us?
Send your inquiry detail to get the sample, click "send" now!
About Us:
Guangzhou Yunqiang Electronics Limited is a developing amplifier, speaker, stage lighting factory in Guangzhou, China. Based in the interenational and manufactures innovative, . High quality Amplifier, Speaker, Stage Light products for the professional Club Play and stage show Entertainment&leisure
Our purpose:
Quality first,Credit first Customer first, First-rate service.
We insist in "honest business and high quality service" as our business ideal, with a powerful R&D team and a group of skilled workers in the factory as the strong backup and support,
we always work on this ideal to serve all customers with good quality and reasonable price.
SHOW ROOM:
Certificates:
