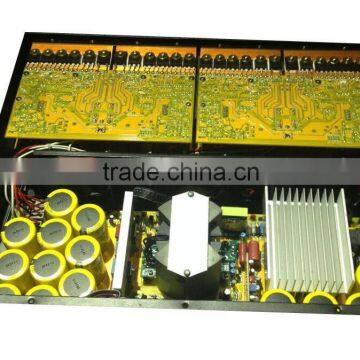

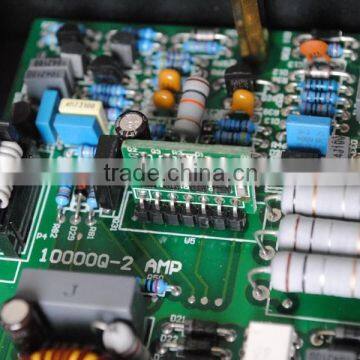

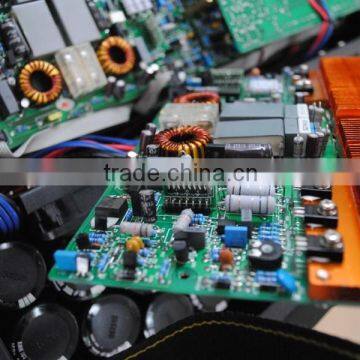

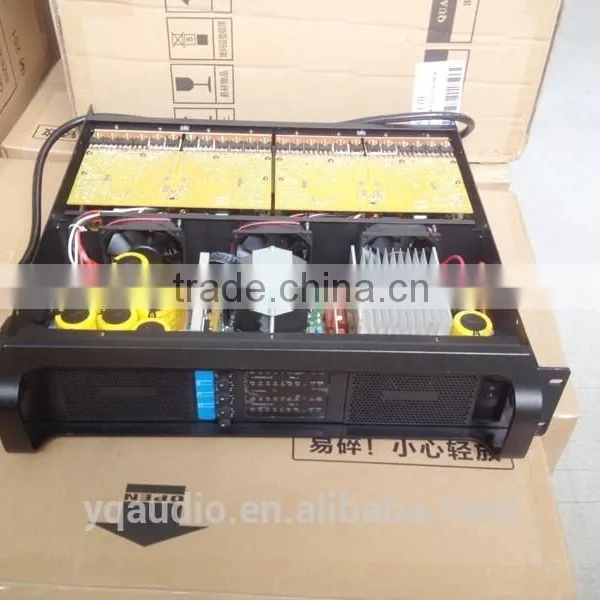

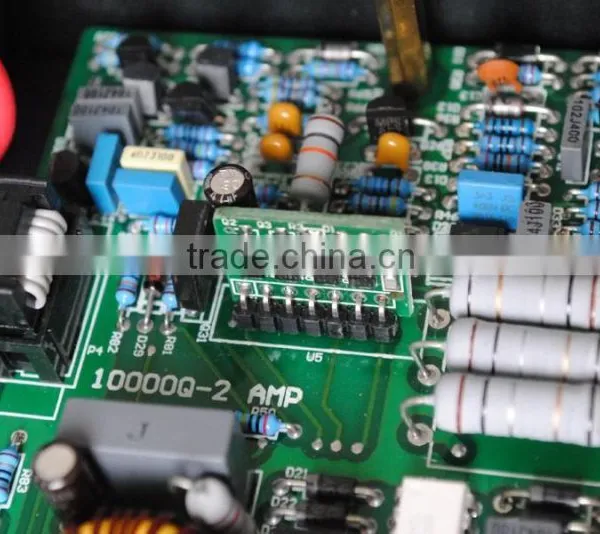

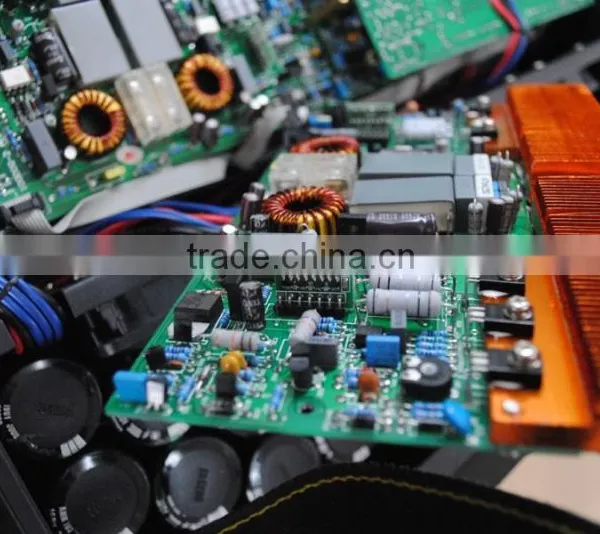

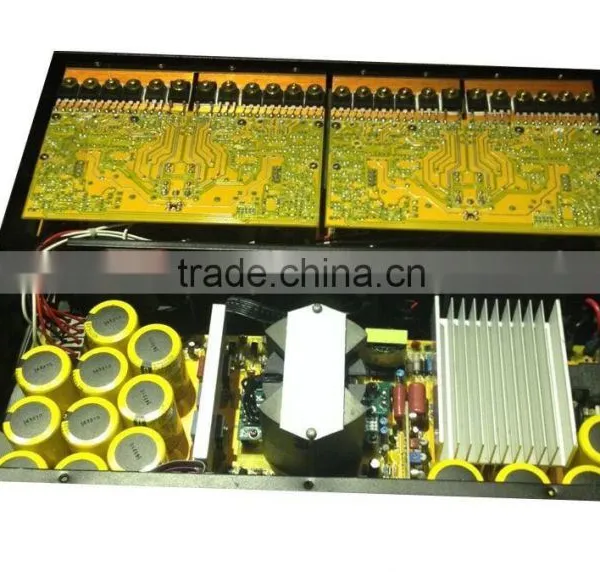

1350watt 4 channel switch mode class td lightweight power amplifier
- 10000 Piece / Pieces per Month
- guangzhou
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | QSN | Model Number: | P10000Q |
Product Description
4 channel switch mode professional high power amplifier FP10000Q
1.Brand new high efficiency techonology of the new TD class product.
2.ultra-high-power switching regulator power supply,high energy storage capacity,high density,full power and domineering.
3.highly load output capablity with work effiency.
4.integrated intelligent protection,while output with heavy loading freely.
5.performance excellent,including new generation of power supply amplifier product.
MODEL | FP10000Q |
Output Power | 20-20kHz, 1W with 1 khz |
8ΩStereo Power(RMS) | 1300WX4 |
4ΩStereo Power(RMS) | 2100WX4 |
2ΩStereo Power(RMS) | 2500WX4 |
8ΩBridged Power(RMS) | 4200WX2 |
4ΩBridged Power(RMS) | 5000WX2 |
Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
THD 20 Hz - 20 kHz for 1 W | <0.1% |
Signal-to-Noise Ratio | >112 dBA |
Channel separation (Crosstalk) at 1 kHz | >70 dB |

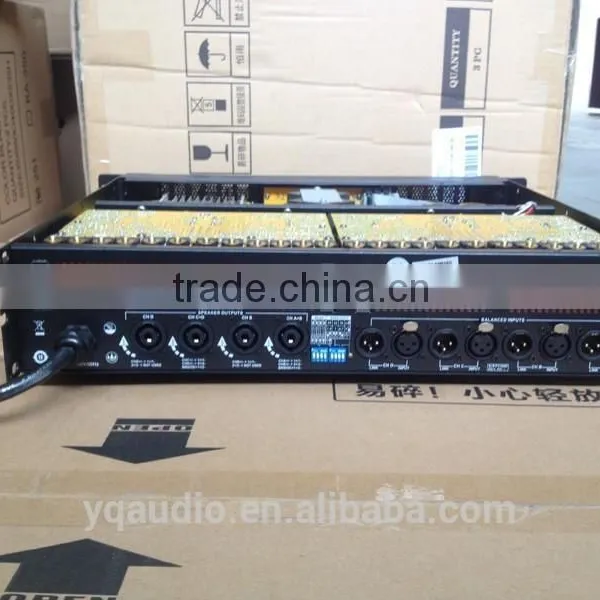

Input Connectors (per channel) | 3-pin XLR, electronically balanced |
Output Connectors (per channel) | Binding Posts 2-pole |
Class | TD |
TourClass Protection | ACL,IGM,AutoRamp,short cricuit,DC voltage,turn-on/off transient,current,inrush |
Operating voltage | 130-265 V / 65-135 V selectable |
Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
Input impedance | 20 kOhm |
Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
Dimensions (W×H×D) | 483×88×396mm |
Packing dimension | 560×180×500mm |
Net weight(kg) | 12 |
Gross weight(kg) | 14 |
Company introduction
Founded in 2005 with the register capital of RMB 2,000,000 Yuan,Guangzhou Yunqiang Electronics Co.Ltd is a manufacturer specialized in the research,development and production of professional speaker and power amplifier.We are located in NO.8,Longhu industrial park,Longhu Village,Shijing Town,Baiyun district,Guangzhou,China(Mainland).Our main product include: power amplifier,pro speaker,line array,sub-woofer,pro karaoke equipment,conference system,professional peripheral,microphone and mixers etc.
We are one of creators in china professional audio industry.Covering an area of 5000 square meters,we now have over 80 employees and boast an annual sales figure that exceed RMB22,000,000 Yuan,and we have a 30 percent increase in sales every year.We have both power amplifier engineers and pro speaker engineers with over 10 years rich experience.Since establishment,we devote our-self to professional audio industry.Now we have earned many honors and awards.
