Switch High Power Amplifier Audio Amplifier, PRO Sound

US$ 480 - 600 MOQ: 1 Set

Key Specifications

Brand Name:

QSN

Model Number:

FP7000

Place of Origin:

Guangdong, China

Guangzhou Yunqiang Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name QSN

Model Number FP7000

Place of Origin Guangdong, China

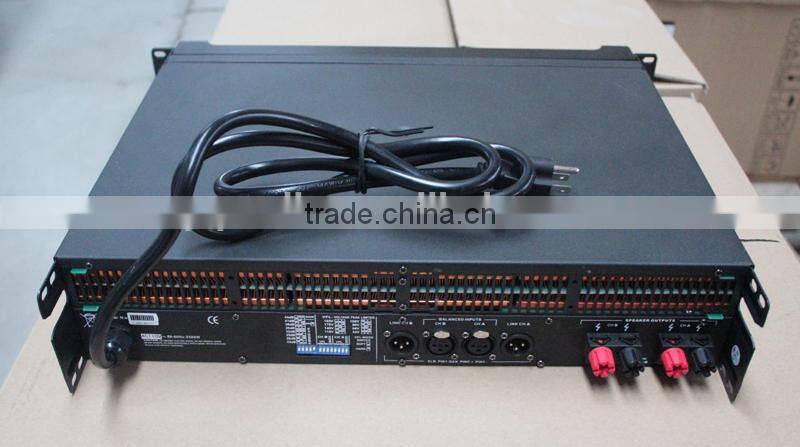

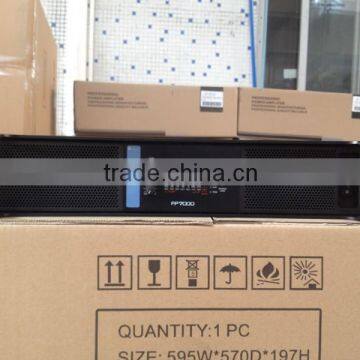

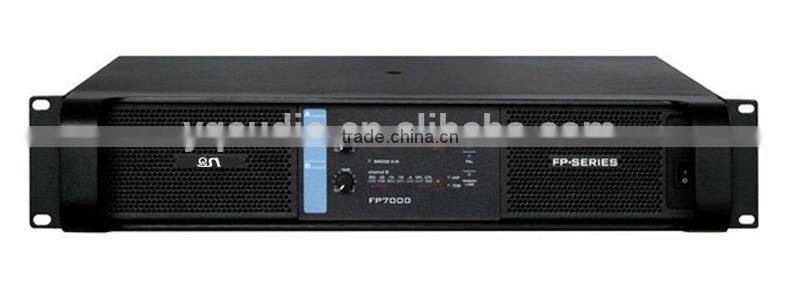

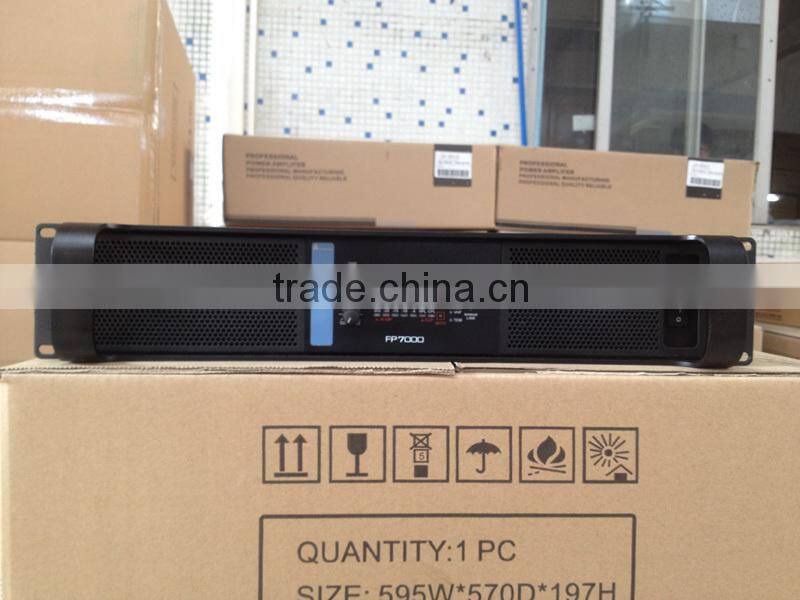

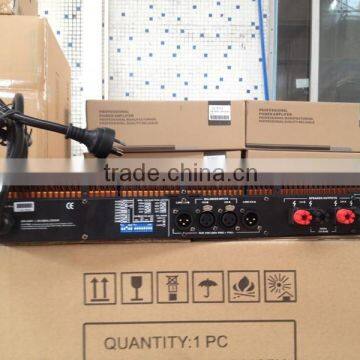

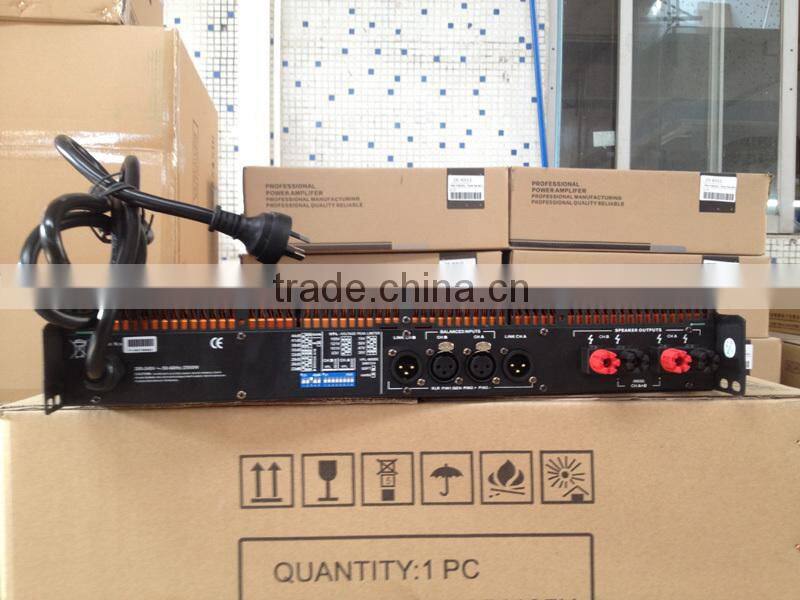

Switch High Power Amplifier (FP7000) , Audio Amplifier, PRO Sound

Channel number: 2 CH

8Ohm stereo, 1500W*2

4Ohm stereo, 2800W*2

2Ohm stereo, 3500W

8Ohm bridge: 5600W

4Ohm bridge: 7000W

Gain: 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

THD+N: <0.1%

THD: <0.05%

S/N ratio: >112dB

Crossover: >70dB

Frequency: 6.8Hz-34KHz

Input impedance: 20Kohm

Gain selecrable: 23,26,32,35,38,41,44dB

Input connector: XLR

Output connector: Neutrik speakon

output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source

Cooling: 2 fans, front to rear airflow, temperature control

Size: 483*88*398mm
Net weight:12Kg

Gross weight: 15kg

1pc sample accepted

welcome OEM, warranty 2 year

P+ series Switching Power Amplifier Specification
ITEM	FP7000	FP9000	FP14000	FP8000Q	FP10000Q
Output Power	20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)	1500WX2	1800WX2	2350WX2	800WX4	1350WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1400WX4	2100WX4
2ΩStereo Power(RMS)	3500WX2	4500WX2	7000WX2	1600WX4	2500WX4
8ΩBridged Power(RMS)	5600W	6000W	8800W	2800WX2	4200WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3200WX2	5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	560×180×500mm
Net weight(kg)	12
Gross weight(kg)	15
