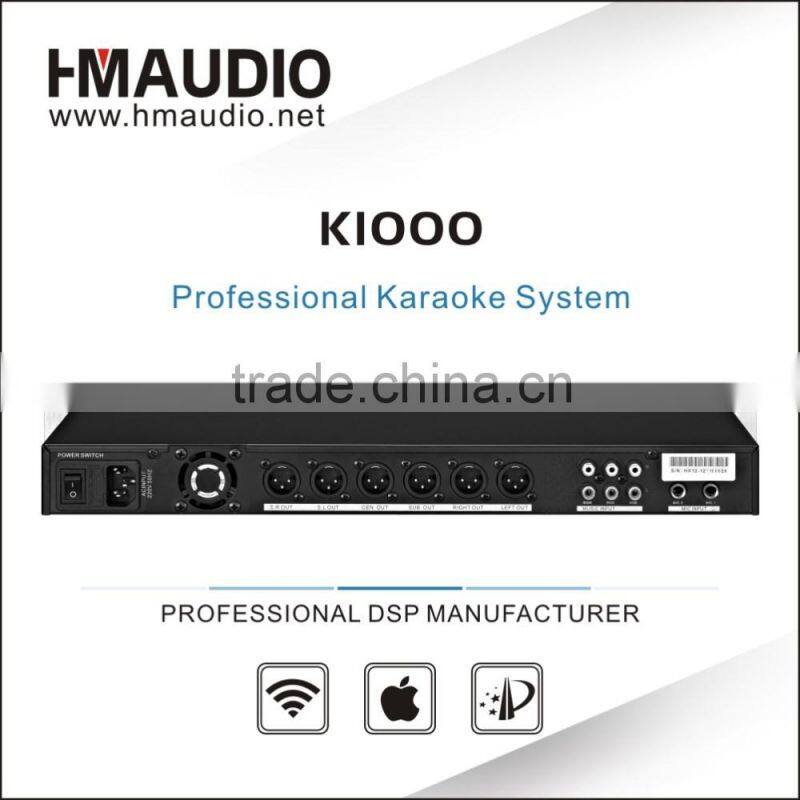

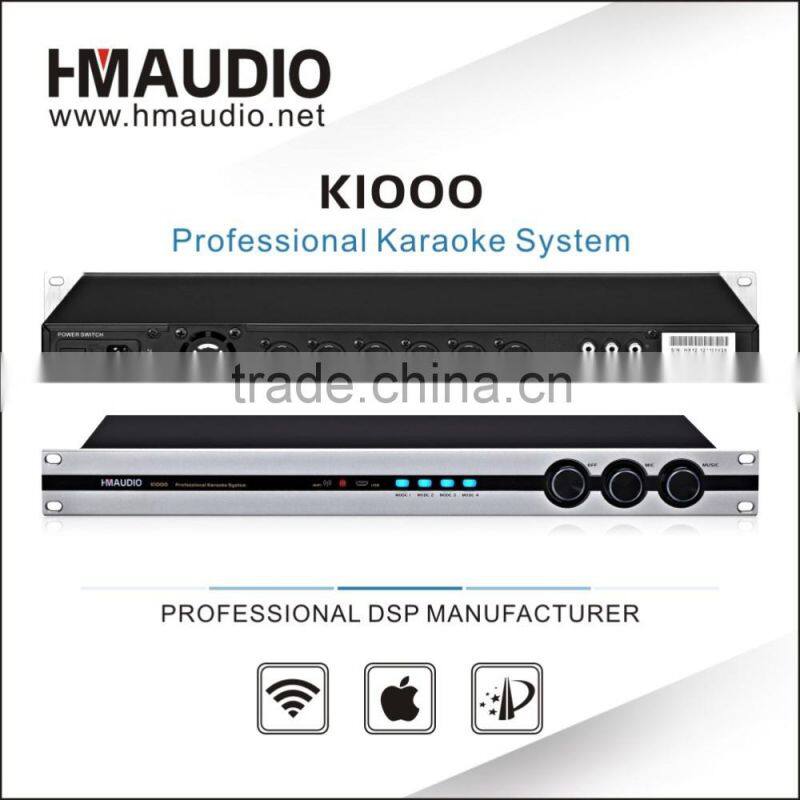

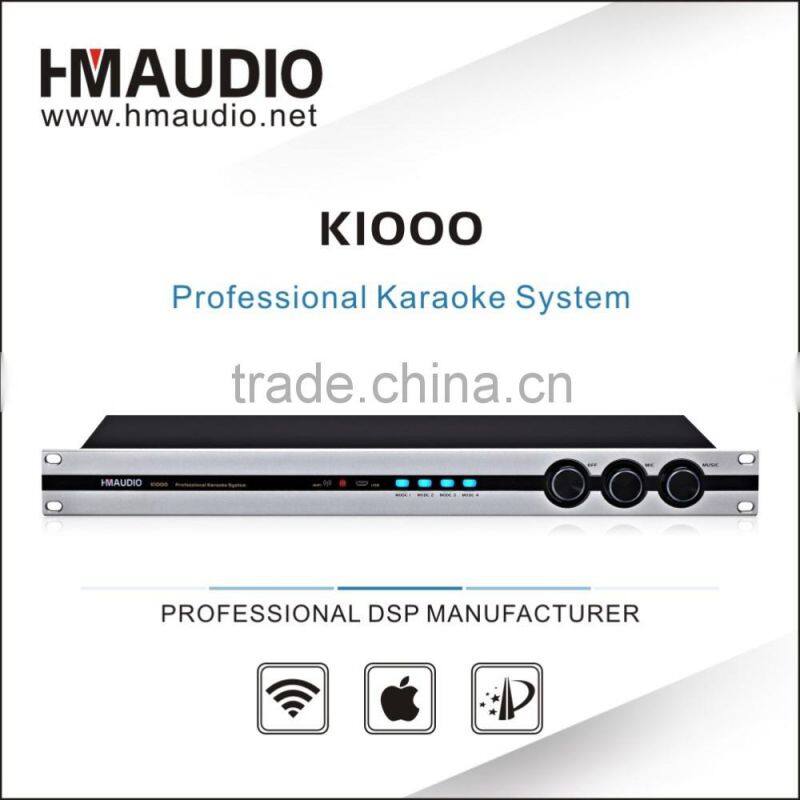

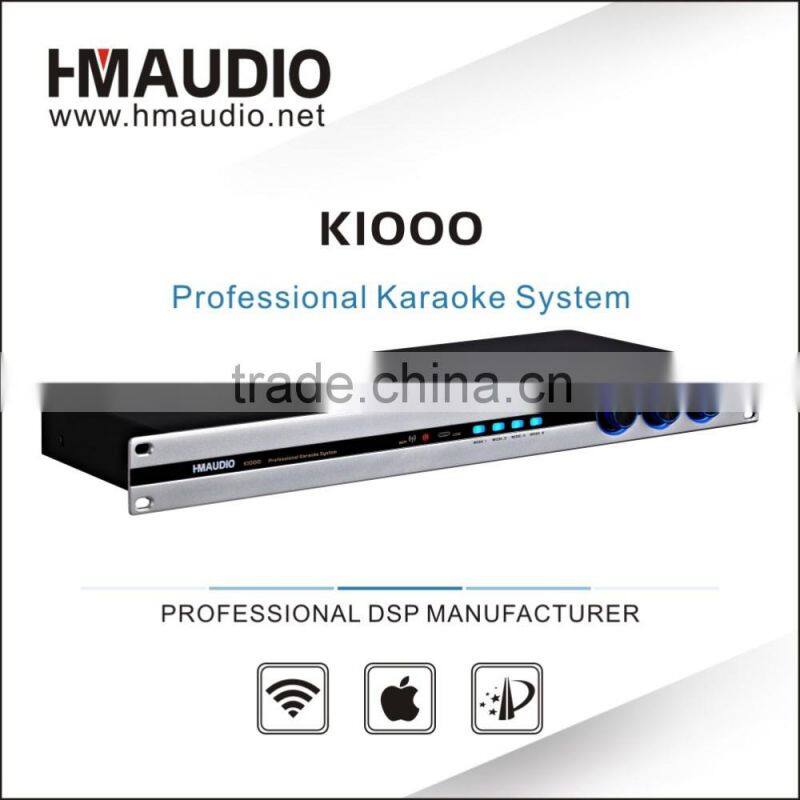

hifi professional 6 channels speaker & audio processor K1000
Features
1, Ipad / Iphone could get the access through wifi.
2, 255MHz main frequency, 48Khz sampling frequency, 24 bit A/D and D/A converter, 32 bit processor.
3, Six balanced output channels can be flexible with the power op-amp.
5, HPF and LPF are for MIC input channels,13 PEQ is for MIC and music.
6, 7 bands PEQ, crossovers, audio route, polarity, delay, limiter and gain are for main outputs.
7, 5 bands PEQ, crossovers, audio route, polarity, delay, limiter and gain are for center, SUB and surround outputs.
8, USB connector is available with PC software.
9, 10 preset and 10 user settings are available.
10, The last save state will be used when it is on.
11, Panel lock function.
12, Singing and hot-dancing mode can be switched automatically.
Technical Parameter
Items |
Parameter |
Output channel |
Main Left, Main Right, Center, SUB, SURR Left, SURR Right |
S/N R |
MIC 75dB 1KHz 0dB |
Music 95dB Input | |
THD |
MIC / Music 0.1%/0.01% 1KHz 0dB Input |
Max Input Level |
MIC 200mV 1KHz 0dB |
Music 1.5V Input | |
Max Output Level |
MIC/ Music 10Vrms 1KHz 0dB |
Sensitivity |
MIC 20mV Input |
Music 210mV | |
Input Impedance (Ω) |
MIC 10K ( Unbalanced ) |
Music 47K ( Unbalanced ) | |
Output Impedance (Ω) |
300 ( Balanced ), 1K ( Unbalanced ) |
Crosstalk of Channels |
85dB |
Feedback |
4 Levels |
Parameters of Channels |
MIC/ Music Input 13 Bands PEQ, H/L cut, Frequency: 20Hz-20000Hz, Gain:±20dB |
|
L/R Main Output Singal Mixer, Polarity,7 bands PEQ, LPF, HPF, Limiter, Delay, Gain
| |
Center/SURR /SUB Singa Mixer, Polarity,5 bands PEQ, LPF, HPF, Limiter, Delay, Gain | |
Weight |
Gross Weight 3.6KG |
Dimensions (L*W*H) |
Package 570*260*90 (mm) |
FAQ:
Q1.Why us?
A.We specialize in R&D and manufacture of high-performance professional DSP audio products,such as professional audio processors,karaoke processors,professional amplifiers,karaoke amplifiers,power supply sequencer,power amplifier modules,mixer,equalizer,feedback exterminator and so on,with highly quality and competitive prices.
Q2.What’s your payment term?
A. We accept T/T,30% deposit at first and 70% balance needs to be paid before shipping.
Q3. How long is the delivery time?
A. Usually 25-35days for production. 1 day for sample delivery if it’s available in stock.
Q4. What’s your standard package?
A.Bubble wrap packaging inside and carton packaging outside.
Q5. How long is your product warranty?
A. 2years.
Q6. Could you do OEM/ODM for customers?
A. Yes,from the product design to packaging,our engineers can design exactly as your requirements.Any kind of logo printing or design is available ,If your order quantity is good .
Q7. What kind of certificates do you have ?
A.Our company has been awarded 3C, CQC.(ISO,CE and ROHS are in the process of applying now.)
