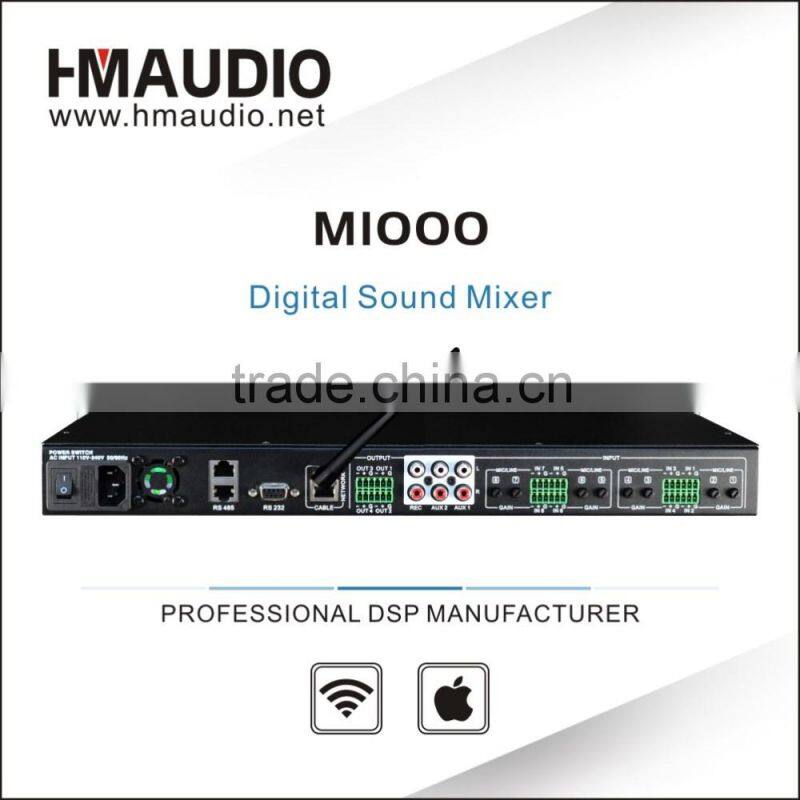

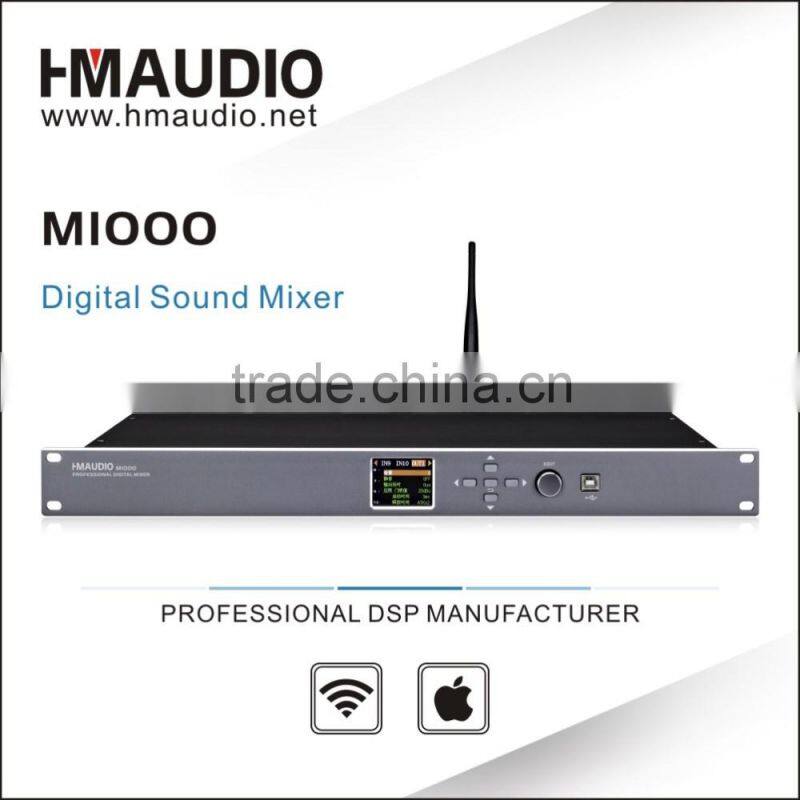

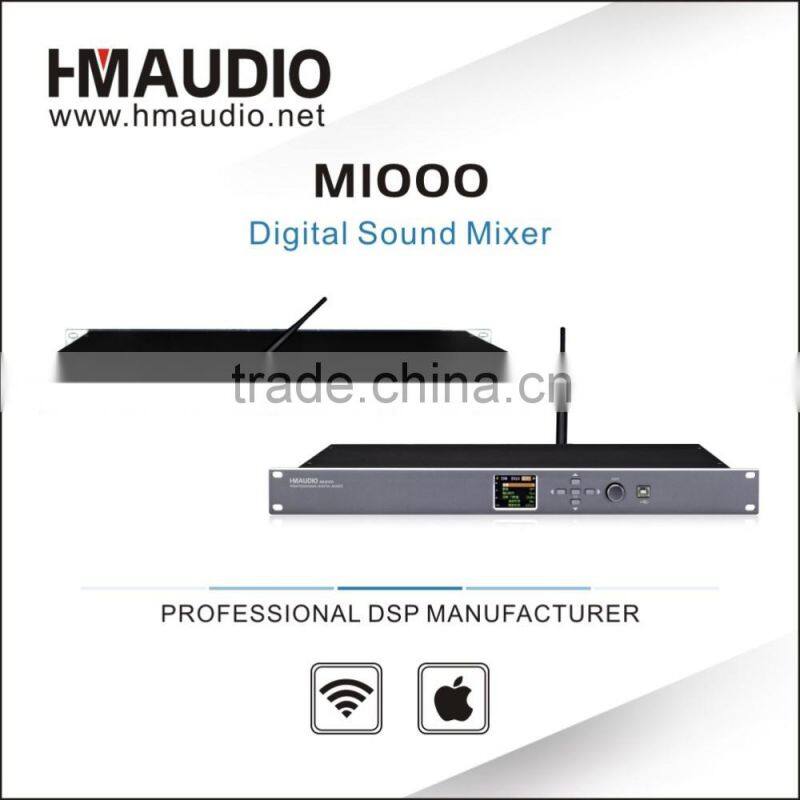

M1000 Wireless audio conference system with WIFI function
Features
1. 4th Sharc chip of ADI, main frequency up to 400MHz, 32-bit floating point, 24bit A/D, D/A converter.
2. 8 LINE/MIC input, dynamic Mic amp input ( Gain:0-60dB).
3. 48V phantom power input, with 3 bands PEQ, Noise Gate, Dynamic Compressor, Feedback(except AUX), Hi-pass, Lo-pass, Mute and so on.
4. 10X6 audio matrix, mixer rate adjustable.
5. 4 main out, plus 2 auxiliary output, 9 bands PEQ, Hi-pass and Lo-pass, feedback(Output1,2)Limiter, Delay, Mute and so on.
6. Each input channel with 2 levels speaking priority.Mic auto decay function.
7. Normal audio player or RCA auxiliary stereo can choose.
8. Supported with WIFI,USB,RS232,RS485 and TCP/IP connector.
9. Front panel and device lock function.
10. 65K 2 Inch TFT screen,pixel 220*176. Chinese/English are optional.
11. Several device can be connected in parallel.
12. iPad/computer are supported.
Technical Parameter
MIC In | Balanced |
Impedance | > 3kΩ |
AUX In | unbalanced |
Impedance | > 20kΩ |
Output | Balanced |
Output Impedance | < 100 Ω |
Max Electric Potential | + 19dBu |
Frequency Response | ±0.5dB 20Hz - 20kHz. |
S/N | >92dB 20Hz -20kHz. |
THD | < 0.005 % @ 1kHz,0dBu |
Crosstalk | >80db (1K) |
Max Delay | 999 ms(Step 0.021 ms) |
Max Gain | 60dB (Potentiometer 0-60dB) |
PEQ | Input 3 bands PEQ , Output 9 bands PEQ (AUX exclusive) |
Filter Gain -60dB - +12dB,step 0.1dB. | |
Central Frequency 20Hz - 20kHz, | |
Filter Q Ratio/Band Width 0.4 - 20 | |
High Pass & Low Pass Filter | Corner Frequency (High Pass) 20Hz - 20kHz |
Corner Frequency (Low Pass) 20Hz - 20kHz | |
Divider Bessel/Butterworth 12/18/24dB Linkwitz-Riley 12/24/36/48dB | |
Compressor | Threshold +20dBu - -40dBu |
Start Time 0.03 ms - 100 ms | |
Release Time is the 4,8,16 or 32 Times of Start Time | |
Compression Ratio : 1:1 - 1:127 | |
Limiter | Threshold +20dBu - -40dBu |
Start Time 0.03 ms - 100 ms | |
Release Time is the 4,8,16 or 32 Times of Start Time | |
Interface | Input 3 Cores XLR female socket, Output 3 Cores XLR Male socket |
USB Interface,RS485 Interface,RS232 Interface,Web connectors | |
Power Socket 3 Cores IEC Socket | |
Power Supply90 - 240V 50/60Hz. | |
Power Consumption< 30 W | |
Phantom Power 48V | |
Weight | Gross Weight 4.9kg |
Dimensions(W*H*D) | Package:560*410*80 mm |
FAQ:
Q1.Why us?
A.We specialize in R&D and manufacture of high-performance professional DSP audio products,such as professional audio processors,karaoke processors,professional amplifiers,karaoke amplifiers,power supply sequencer,power amplifier modules,mixer,equalizer,feedback exterminator and so on,with highly quality and competitive prices.
Q2.What’s your payment term?
A. We accept T/T,30% deposit at first and 70% balance needs to be paid before shipping.
Q3. How long is the delivery time?
A. Usually 25-35days for production. 1 day for sample delivery if it’s available in stock.
Q4. What’s your standard package?
A.Bubble wrap packaging inside and carton packaging outside.
Q5. How long is your product warranty?
A. 2years.
Q6. Could you do OEM/ODM for customers?
A. Yes,from the product design to packaging,our engineers can design exactly as your requirements.Any kind of logo printing or design is available ,If your order quantity is good .
Q7. What kind of certificates do you have ?
A.Our company has been awarded 3C, CQC, ISO,CE and ROHS.
