2350w*2 Class td Analogue High Power Amplifie

US$ 400 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

QSN

Model Number:

FP14000

Guangzhou Yunqiang Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name QSN

Model Number FP14000

2350 watt per channel class td analogue high power amplifier fp14000

Features:

1.Brand new high efficiency techonology of the new TD class product.

2.ultra-high-power switching regulator power supply,high energy storage capacity,high density,full power and domineering.

3.highly load output capablity with work effiency.

4.integrated intelligent protection,while output with heavy loading freely.

5.performance excellent,including new generation of power supply amplifier product.

FP Series	FP7000	FP9000	FP14000	FP8000Q	FP10000Q
8ΩStereo Power(RMS)	1500WX2	1800WX2	2350WX2	800WX4	1350WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1400WX4	2700WX4
2ΩStereo Power(RMS)	3500WX2	4500WX2	7000WX2	1600WX4	2500WX4
8ΩBridged Power(RMS)	5600W	6000W	8800W	2800WX2	4200WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3200WX2	5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB

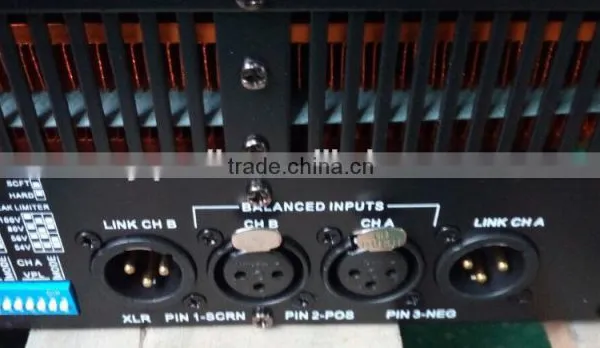

Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	580×180×560mm
Net weight(kg)	12
Gross weight(kg)	15
