Hot Sale! SKLN Series Feed Counter-flow Cooler

Hot Sale! SKLN Series Feed Counter-flow Cooler photo-1
US$ 2,200 - 6,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
CASEN
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name CASEN
Model Number SZLH
Type Other, COOLER, animal feed cooler
Voltage 380V 50HZ
Power(W) 0.75KW+0.75KW
Dimension(L*W*H) 1600mm*1150mm*3120mm
Weight 555 kg
Certification CE ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

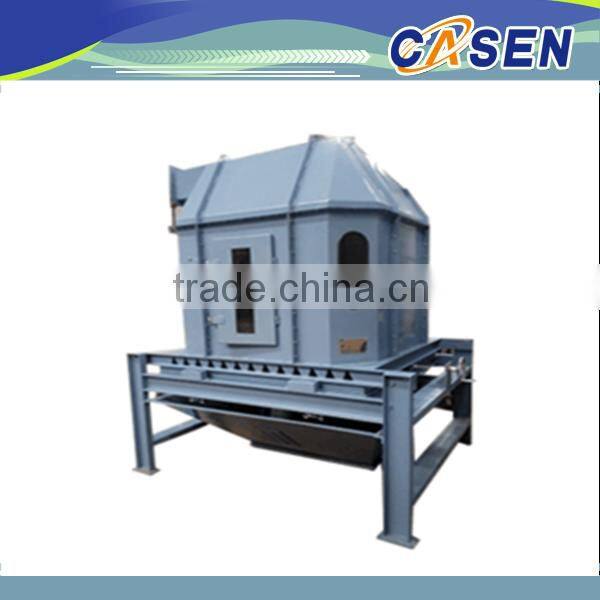

                                                                  SKLN Counter - Flow Cooler

Product Description

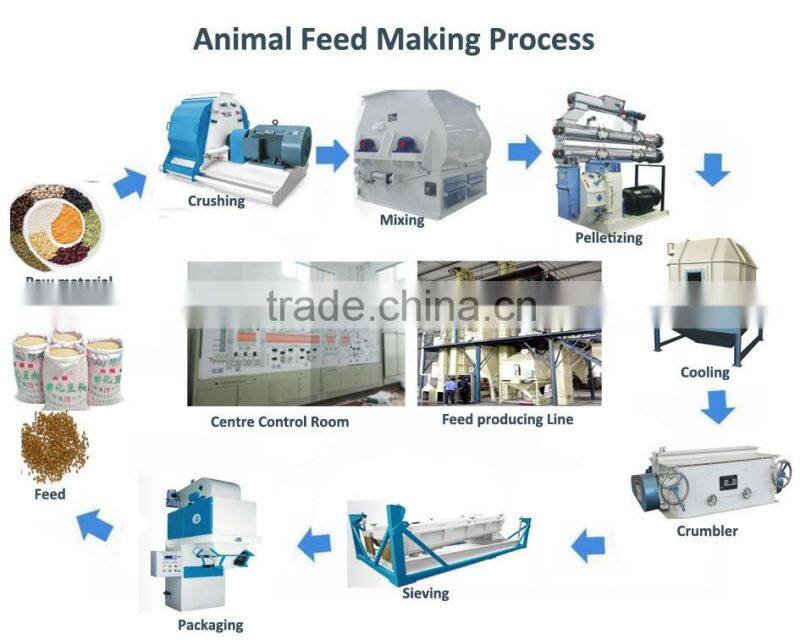

SKLN Series Counter flow Cooler is a kind of advanced cooler equipment for granule materials, mainly equipped in feed production line, used for cooling the granular materials produced from pellet which contain certain moisture and higher temperature, dry and cooling, meet the storage requirements.



Hot sale! SKLN series feed counter-flow cooler



Advantage

1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets;

2. Airlock feeder is used for feeding, with large air volume, good cooling effect;

3. The octagon cooling bin has eliminated dead cooling corner, which is beneficial to the cooling treatment of materials;

4. Multiple pressure-reducing plate is equipped with discharging device, can lighten the working load of discharging device, reduce the deformation, prolong the working life;

5. The gearbox drives eccentric shaft as transmission gear, smooth and reliable running, no material deposit, lower noise, easy to install and maintain.



Model Volume

product Temp.

after cooling

cooling time

(min)

Discharge motor

power(kw)

Airlock power

(kw)

SKLN1.0             1 Room Temp.+5°C 10~15       0.75        0.75
SKLN2.5      2.5 Room Temp.+5°C 10~15        1.1         0.75
SKLN4.0       4 Room Temp.+5°C 10~15        1.1        0.75





Hot sale! SKLN series feed counter-flow cooler





Hot sale! SKLN series feed counter-flow cooler

Hot sale! SKLN series feed counter-flow cooler
