Dual 12 Inch 3-Way Full Range Professional Horn Line Array System Speaker (L12)
US$ 1 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QSN OEM
Model Number:
L12
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10 Inch Outdoor Stereo Professional Line Array Speaker (L10)US$ 1 - 400MOQ: 1 Piece -
2016 Outdoor Concert System Loudspeakr Line Array Vrx 932 Lap Quality ChoiceUS$ 1 - 500MOQ: 1 Piece
-
500W Professional Tw Audio Horn Line Array Speaker Subwoofer (VR18) Quality ChoiceUS$ 200 - 350MOQ: 1 Piece
-
Dual 8" Professional Line Array SpeakersUS$ 200 - 300MOQ: 1 Piece
-
Professional tw Audio Horn Line Array SpeakerUS$ 200 - 380MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
QSN OEM
Model Number
L12
Product Description
Outdoor Speaker System 3-way Full Range Stacking Line Array
Description as follows:
Model:L-12
1)It has dual 12 inch LF, Four 6 Inch MF and dual two 2 inch LF
2)Rated power is 1000W
3)Peak power is 4000W
4) Snsitivity is 100 db
5)Net weight is 67.5Kg
6)Internal crossovers
7)case is birch plywood case
8)LF: neodymium Magnet is 190mm, voice coil is 50mm
MF:neodymium Magnet is 120mm, voice coil is 35mm
HF: neodymium Magnet is 120mm, voice coil is 44mm
9)We will send you the enough speakon connectors and some other spare parts for you free.
10)Frame and safe belts can be provided if needed.
Description as follows:
Model:L-12
1)It has dual 12 inch LF, Four 6 Inch MF and dual two 2 inch LF
2)Rated power is 1000W
3)Peak power is 4000W
4) Snsitivity is 100 db
5)Net weight is 67.5Kg
6)Internal crossovers
7)case is birch plywood case
8)LF: neodymium Magnet is 190mm, voice coil is 50mm
MF:neodymium Magnet is 120mm, voice coil is 35mm
HF: neodymium Magnet is 120mm, voice coil is 44mm
9)We will send you the enough speakon connectors and some other spare parts for you free.
10)Frame and safe belts can be provided if needed.
Product Description
Outdoor Speaker System 3-way Full Range Stacking Line Array
Description as follows:
Model:L-12
1)It has dual 12 inch LF, Four 6 Inch MF and dual two 2 inch LF
2)Rated power is 1000W
3)Peak power is 4000W
4) Snsitivity is 100 db
5)Net weight is 67.5Kg
6)Internal crossovers
7)case is birch plywood case
8)LF: neodymium Magnet is 190mm, voice coil is 50mm
MF:neodymium Magnet is 120mm, voice coil is 35mm
HF: neodymium Magnet is 120mm, voice coil is 44mm
9)We will send you the enough speakon connectors and some other spare parts for you free.
10)Frame and safe belts can be provided if needed.
Description as follows:
Model:L-12
1)It has dual 12 inch LF, Four 6 Inch MF and dual two 2 inch LF
2)Rated power is 1000W
3)Peak power is 4000W
4) Snsitivity is 100 db
5)Net weight is 67.5Kg
6)Internal crossovers
7)case is birch plywood case
8)LF: neodymium Magnet is 190mm, voice coil is 50mm
MF:neodymium Magnet is 120mm, voice coil is 35mm
HF: neodymium Magnet is 120mm, voice coil is 44mm
9)We will send you the enough speakon connectors and some other spare parts for you free.
10)Frame and safe belts can be provided if needed.
Now we have 3 Way L-12 line aray and 2 way L-12 line array.

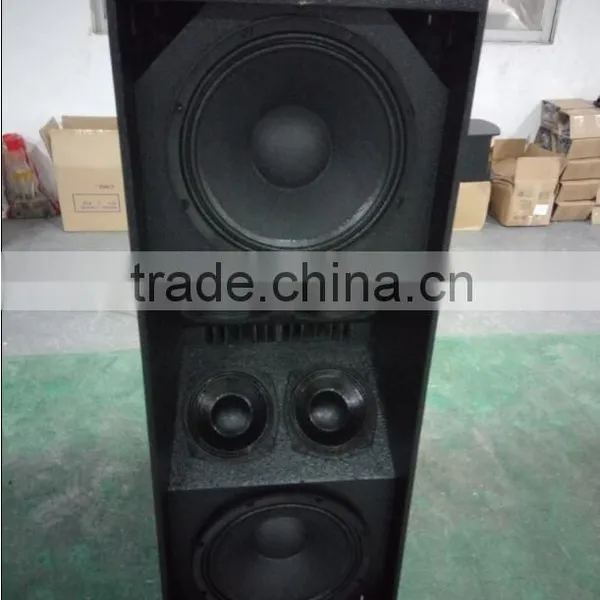

L-12 three way has double 12' woofer,4pcs 6" Middle and double 2" Compression driver.
L-12 two way has double 12' woofer,and double 2" Compression driver.
THREE YEARS WARRANTY
| Model | L12 |
L10 |
System |
3-WAY FULL RANGE |
2-WAY FULL RANGE |
Frequency response |
40Hz-18KHz |
45Hz-18KHz |
Driver |
LF:12”×2,HF:6”×4,HF:2"×2 |
LF:10”×2,HF:3”×1 |
Nomina limpedance |
8 Ohms |
16 Ohms |
System sensitivity |
100dB |
97dB |
Rated power |
1000W |
600W |
Peak power |
4000W |
2400W |
Maximum SPL |
136dB |
131dB |
| Disperion Angle | horizon:100° ,verticality:16° | horizon:100° ,verticality:15° |
Crossover mode |
Inside crossovers |
Inside crossovers/External divider |
Suspension |
Linear suspension |
Linear suspension |
Net weight |
67.5KG |
41.7KG |
Size(mm) |
1125W×563D×425H |
900W×505D×370H |
Package size(mm) |
1195W×625D×630H(flight case ) |
960W×565D×590H(flight case ) |
Contact information
my name is kevin , and my whatsapp is + 86 13794341339, pls add me to your whatsapp. my tel is +86 13794341339, you can call me anytime. wechat is h13794341339 if you have any questions, pls ask me free.

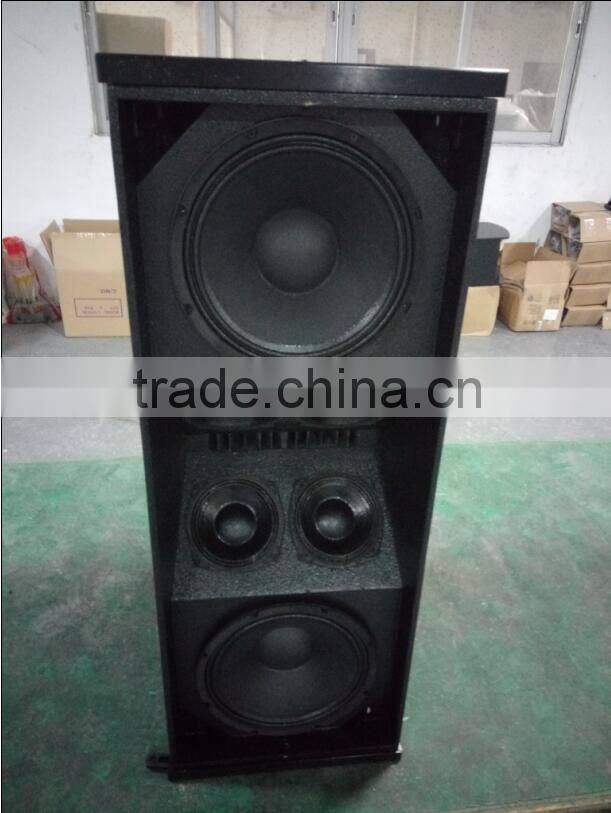

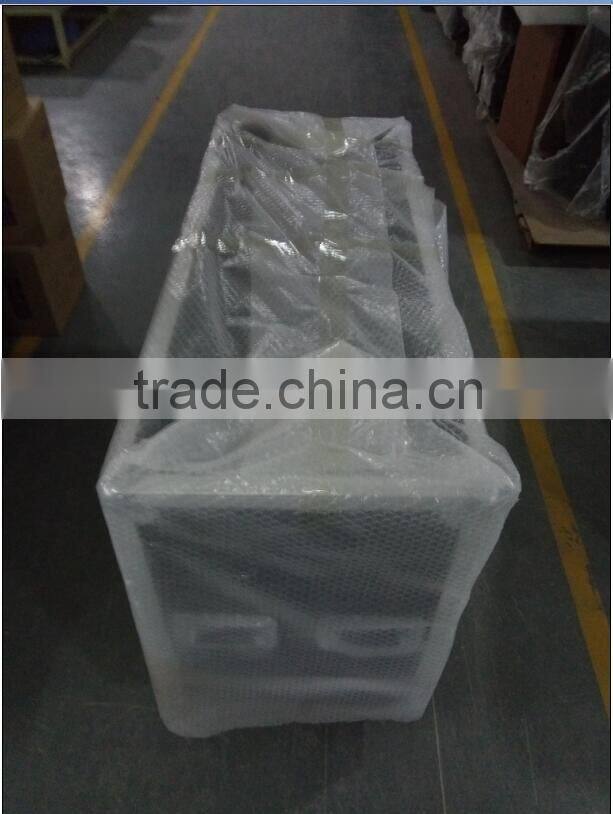

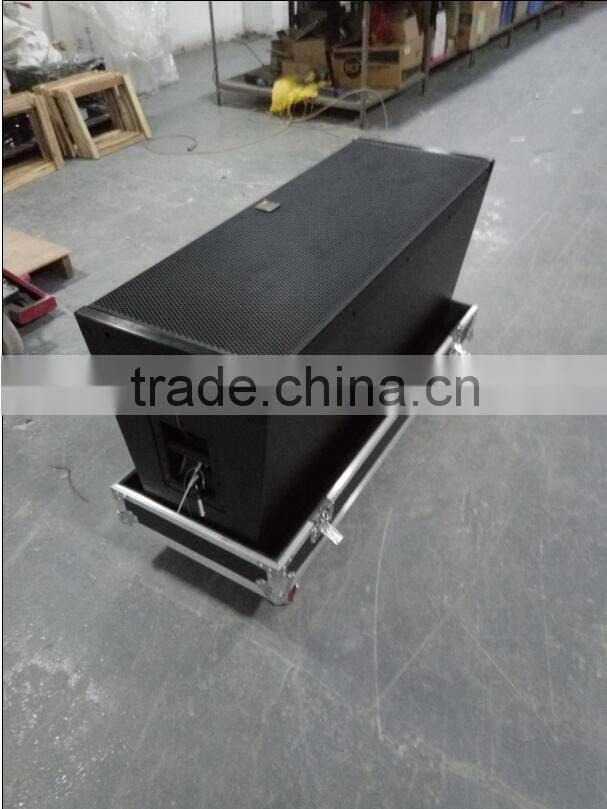

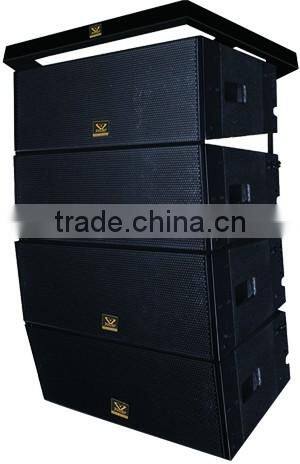

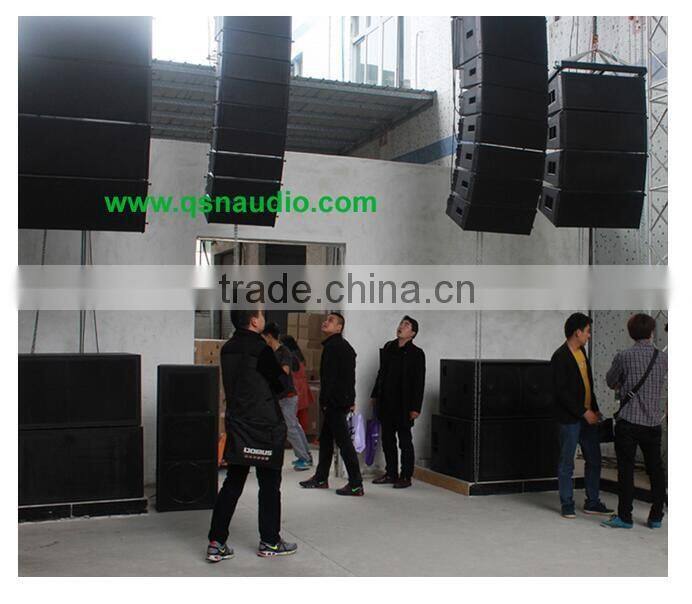

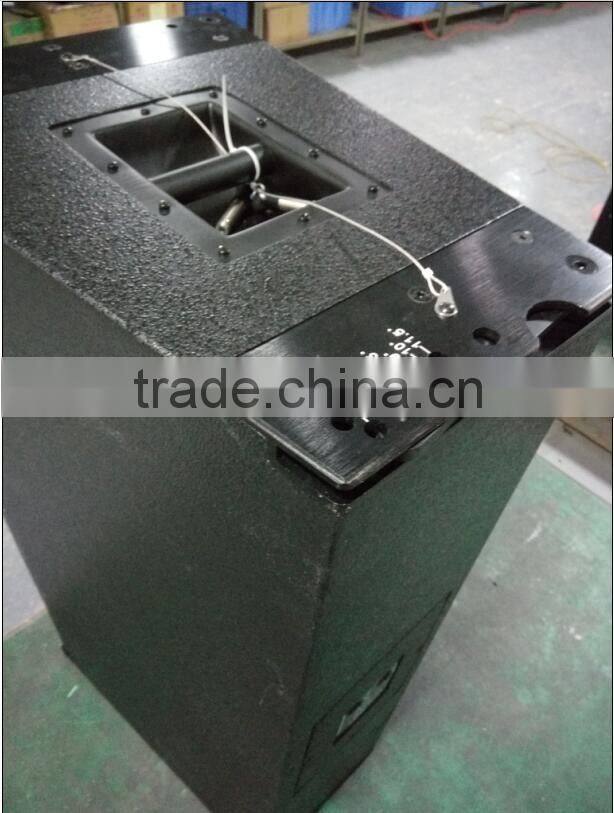

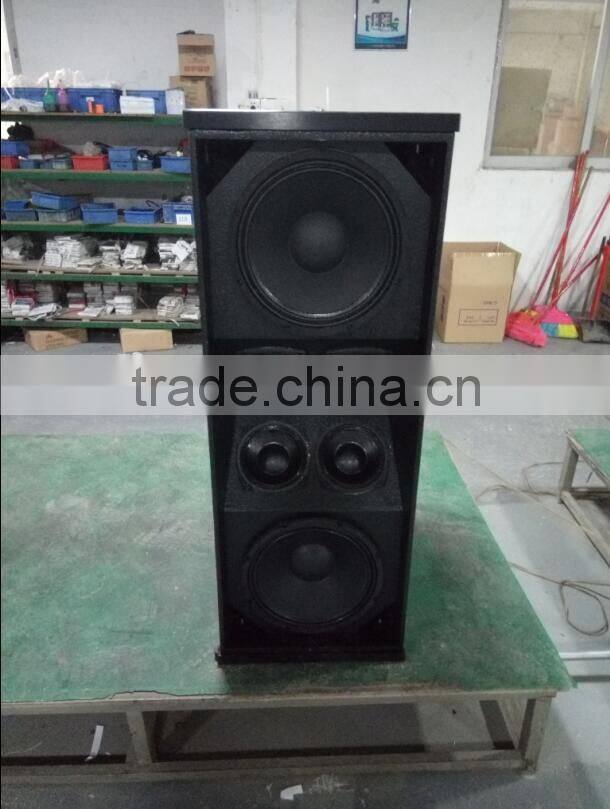

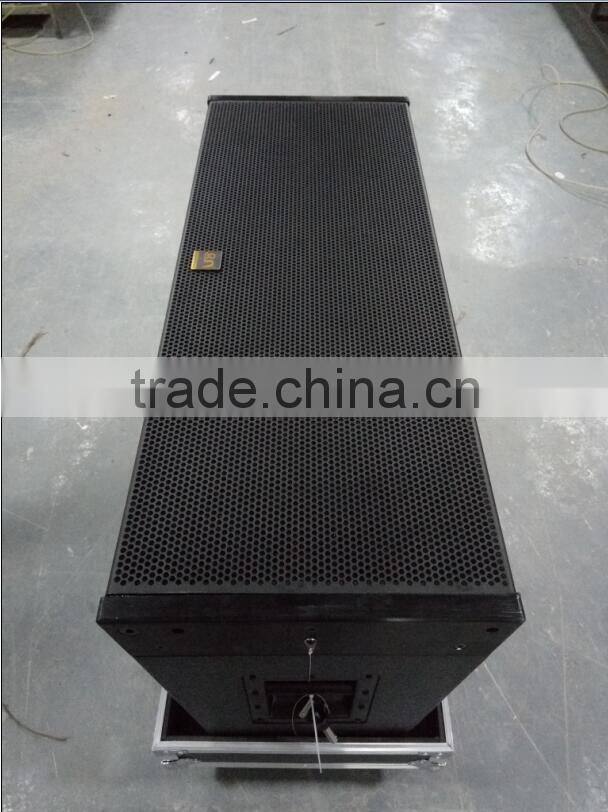

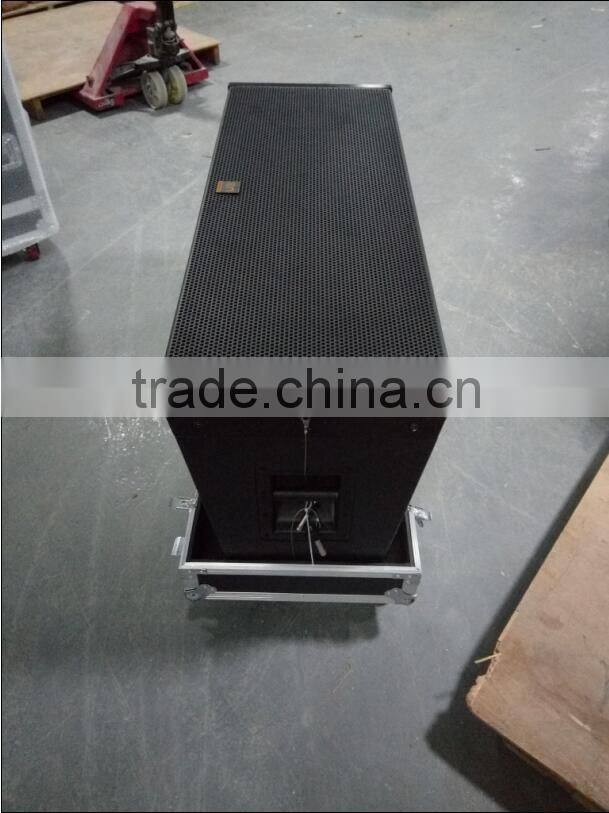

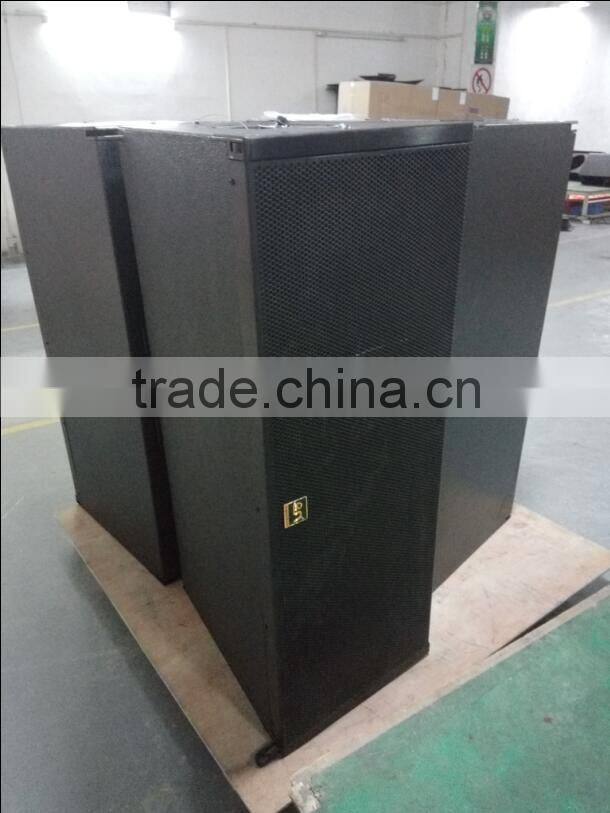

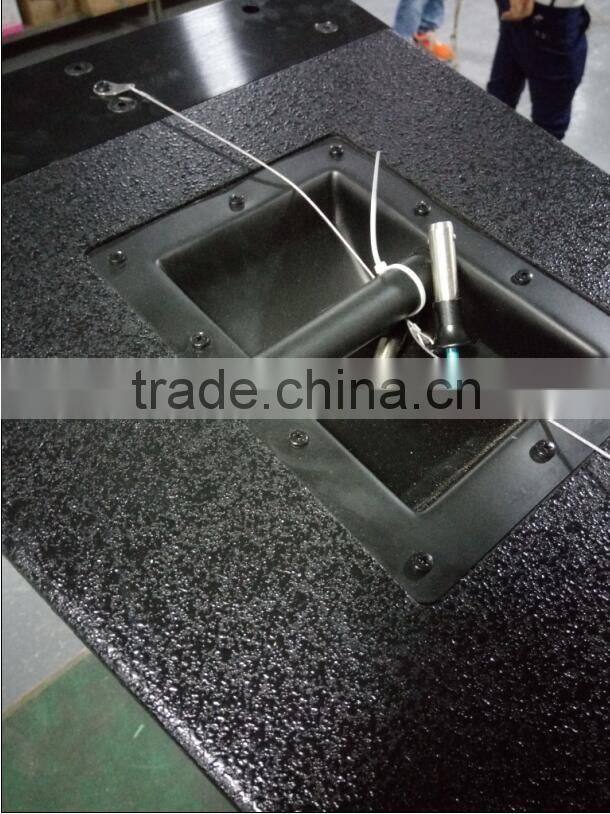

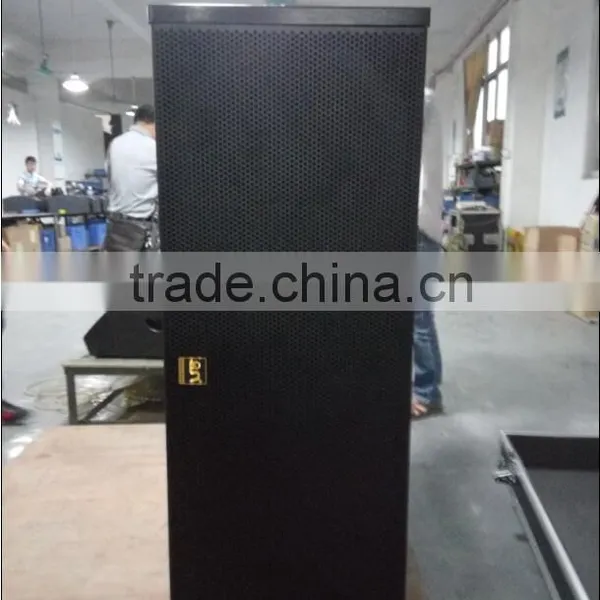

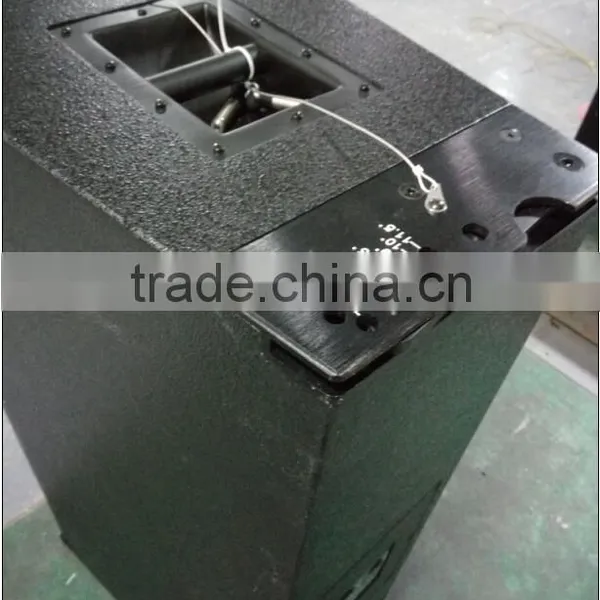

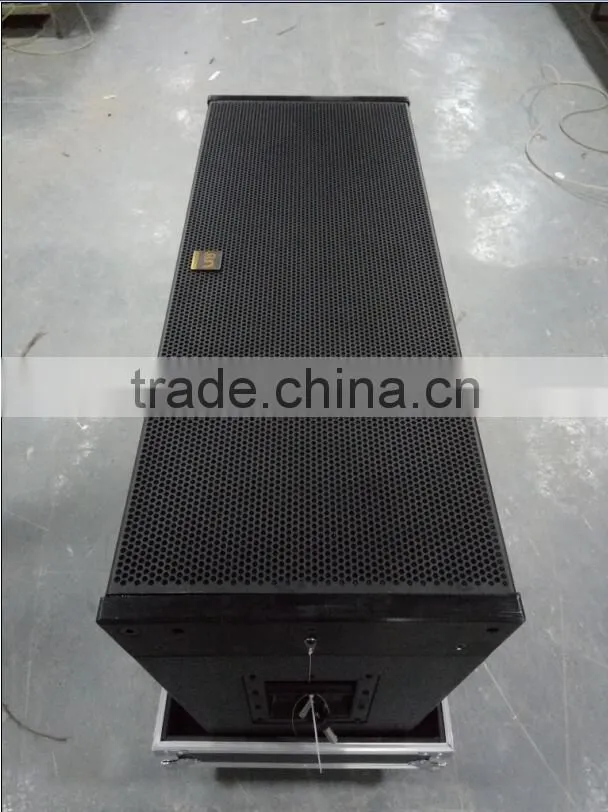

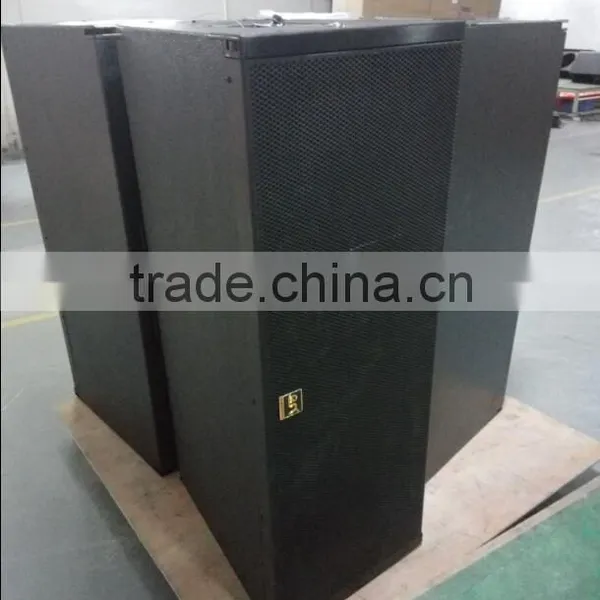

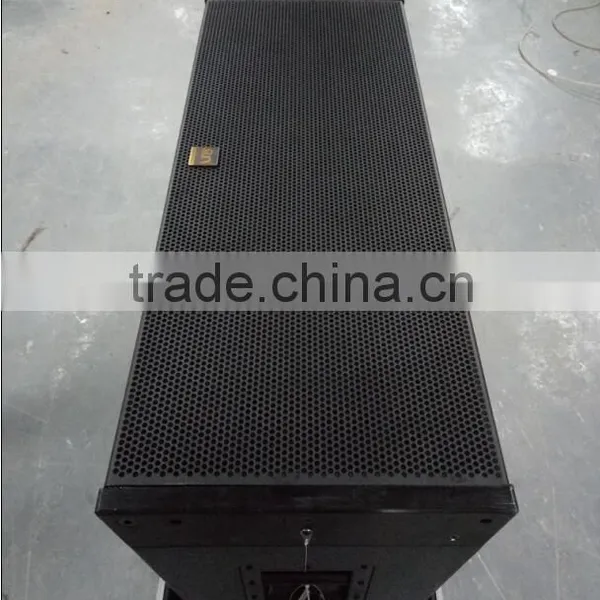

Real Products pictures as follow,
