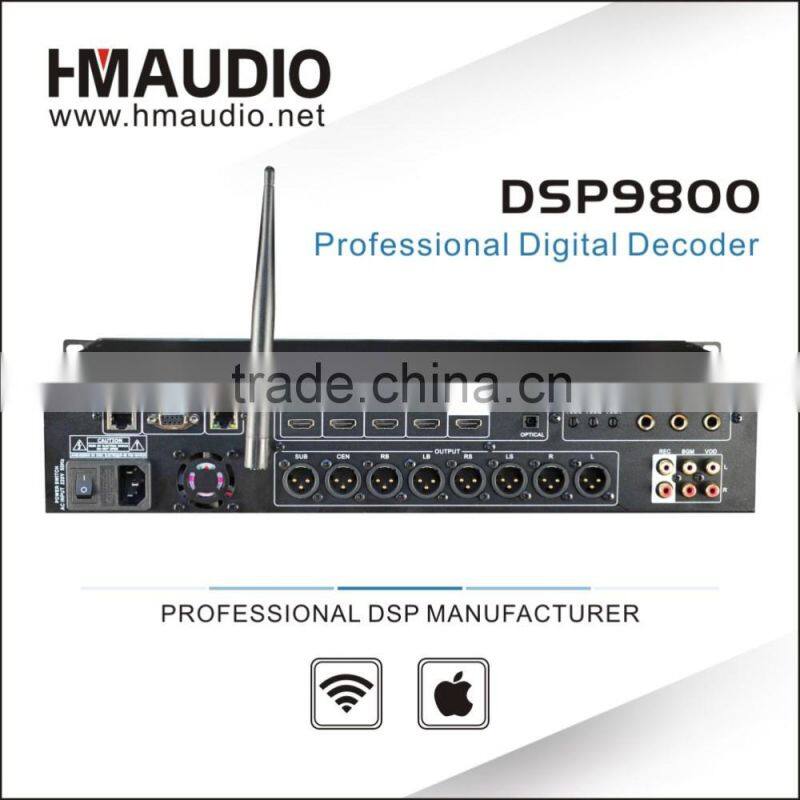

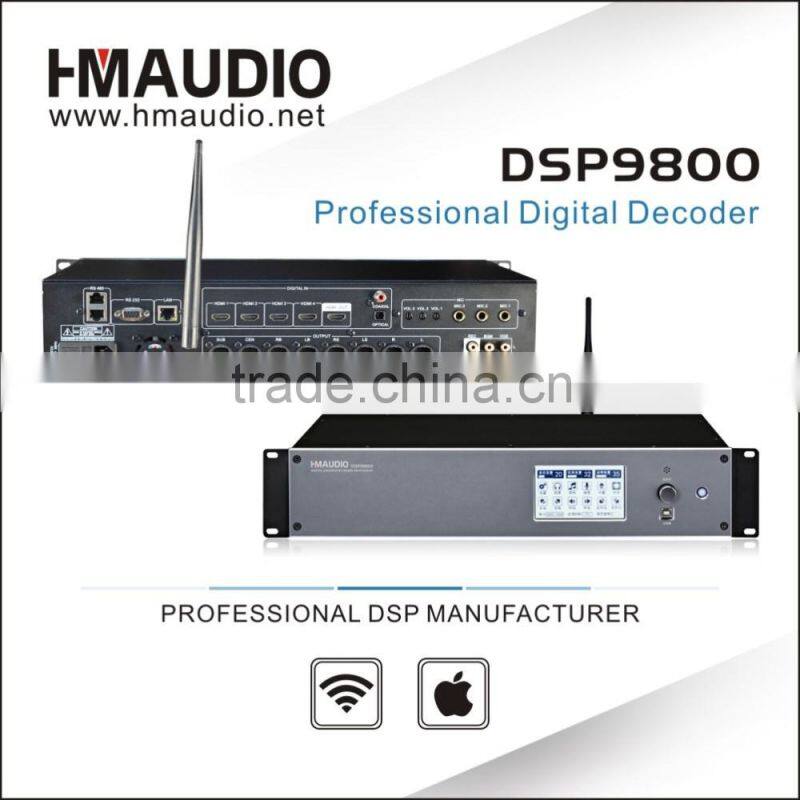

DSP9800 5.1 audio decoder Digital dolby dts decoder for Home theater system
Features

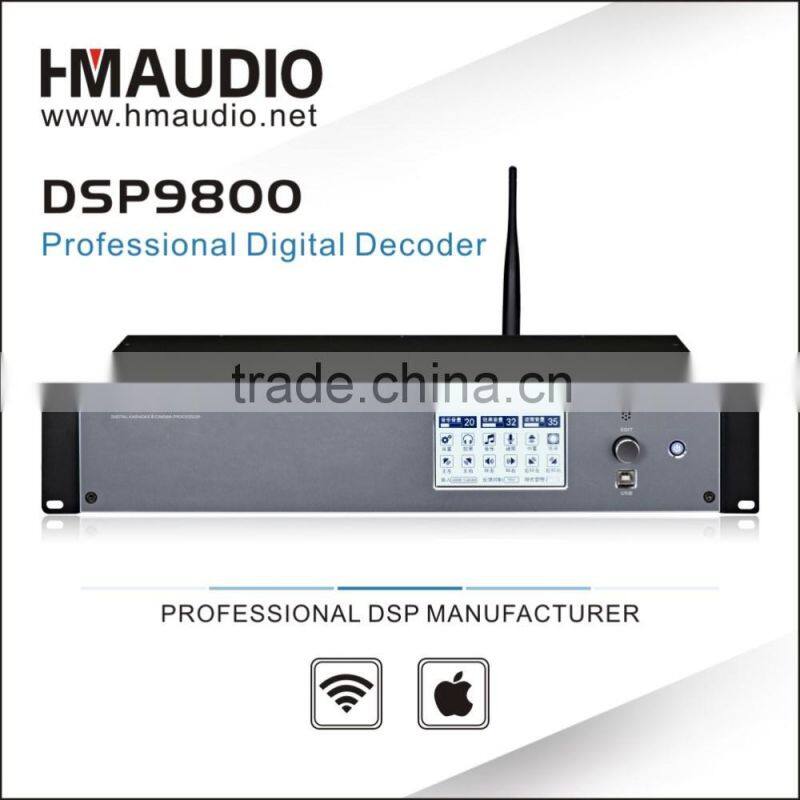

1, 4 inch/ 65.5Kpixel full color/ touch screen, EN / CN are optional.
2, Optional connectors, 4 ins 1 out HDMI, coaxial and optical.
3, All DOBLY / DTS 5.1 decoder are supported, 7.1 channels HDMI audio decoding input interface.
4, 13 bands PEQ are for Music and MIC.
5, Professional KTV effect, echo & reverb, 3 bands PEQ, 4 levels feedback.
6, 7 bands PEQ, LPF/HPF, polarity, delay, limiter and gain are for main output.
7, 5 bands PEQ, LPF/HPF, polarity, delay, limiter and gain are for center/SUB/surround outputs.
8, Double DSP chips, the latest ADI decoder chip,400MHz,32bit operation and TMS320VC67 series chip of TI are used.
9, 24 bit AD/DA converter.
10, USB, RS232, TCP/IP and wifi interface are housed.
11, Ipad and Iphone could get the access through wifi.
12, 10 presets and 10 user settings are available and 1 key to factory setting.
13, 2 levels lock function.
14,REC output.
Technical Parameter
Items |
Parameter |
Output channel |
Main Left, Main Right, Center, SUB, SURR Left, SURR Right |
S/N R |
MIC 85dB 1KHz 0dB |
Music 93dB Input | |
THD |
MIC / Music 0.01% 1KHz 0dB Input |
Max Input Level |
MIC 250mV 1KHz 0dB |
Music 6V Input | |
Max Output Level |
MIC/ Music 10Vrms 1KHz 0dB |
Sensitivity |
MIC 15mV Input |
Music 300mV | |
Input Impedance (Ω) |
MIC 10K ( Unbalanced ) |
Music 47K ( Unbalanced ) | |
Output Impedance (Ω) |
300 ( Balanced ), 1K ( Unbalanced ) |
Crosstalk of Channels |
85dB |
Feedback |
4 Levels |
Parameters of Channels |
MIC/Music Input 13 Bands PEQ, LPF, HPF, Gain:±20dB |
|
L/R Main Output Mixer, Polarity,7 bands PEQ, LPF, HPF, Limiter, Delay, Gain
| |
Center/SURR /SUB Mixer, Polarity,5 bands PEQ, LPF, HPF, Limiter, Delay, Gain | |
Decoding format |
Dobly AC-3. Dobly digital. Dobly pro-logic.DTS. DTS96/24 HDMI Audio and Video Seperation. |
Weight |
Gross Weight 6.3KG |
Dimensions (L*W*H) |
Package 560*310*130 (mm) |
FAQ:
Q1.Why us?
A.We specialize in R&D and manufacture of high-performance professional DSP audio products,such as professional audio processors,karaoke processors,professional amplifiers,karaoke amplifiers,power supply sequencer,power amplifier modules,mixer,equalizer,feedback exterminator and so on,with highly quality and competitive prices.
Q2.What’s your payment term?
A. We accept T/T,30% deposit at first and 70% balance needs to be paid before shipping.
Q3. How long is the delivery time?
A. Usually 25-35days for production. 1 day for sample delivery if it’s available in stock.
Q4. What’s your standard package?
A.Bubble wrap packaging inside and carton packaging outside.
Q5. How long is your product warranty?
A. 2years.
Q6. Could you do OEM/ODM for customers?
A. Yes,from the product design to packaging,our engineers can design exactly as your requirements.Any kind of logo printing or design is available ,If your order quantity is good .
Q7. What kind of certificates do you have ?
A.Our company has been awarded 3C, CQC, ISO,CE and ROHS.
