Specifications
1 Upcast plant2 free oxygen copper bar billet
3 Direct manufacturer from China
4 connect to rolling mill
5 upward method
Oxygen-free copper cast machine from China
I, Plant Introduction
The SYLZP series copper rod continuous casting line adopts the upward method continuous
casting process which the secondary machine is rolling mill, and is the special equipment to produce the rectangular casting oxygen free flat copper bar in high quality and long length.
II, Main technical parameters
| No. | Model | Size (thickness*width) MM | Copper bar billet Qty | Annual capacity | Operating power (KW) | Installed capacity (KVA) | furnace form |
| 1 | SYLZP-1500T | 6*150-20*600 | 2 | 1000-1500T | 80 | 150 | Combined type |
| 2 | SYLZP-2000T | 6*150-20*600 | 3 | 2000T | 120 | 150 | |
| 3 | SYLZP-2500T | 6*150-20*600 | 4 | 2500T | 140 | 220 | |
| 4 | SYLZP-3000T | 6*150-20*600 | 6 | 3000-4000T | 230 | 300 |
III, Machine flow chart
IV,The main spare parts brands
NO. | Spare part name | Brand |
1 | AC servo motor | YASKAWA |
2 | Servo driver | YASKAWA |
3 | Frequency converter | YASKAWA |
4 | High-precision reducer | NAIF |
5 | PLC controller | Mitsubishi |
6 | Human-computer interface | WEINVIEW |
7 | Control apparatus vigour pieces | Chengtai(Chinese famous brand) |
8 | Winding motor & reduction gears | Chengtai(Chinese famous brand) |

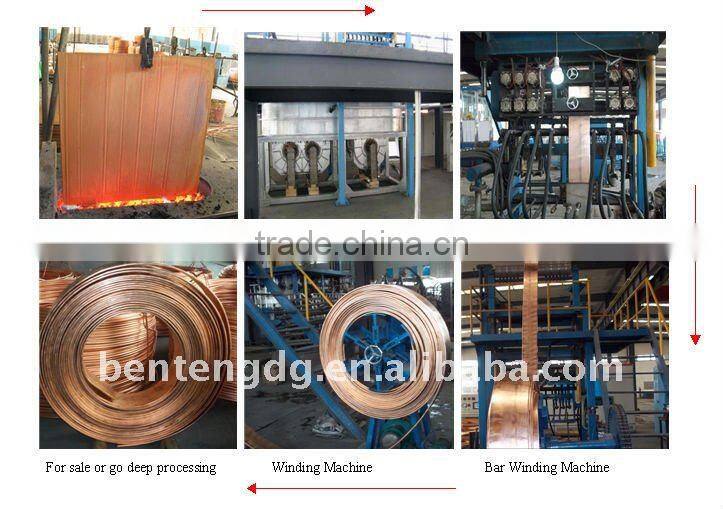

V, Machine unit image

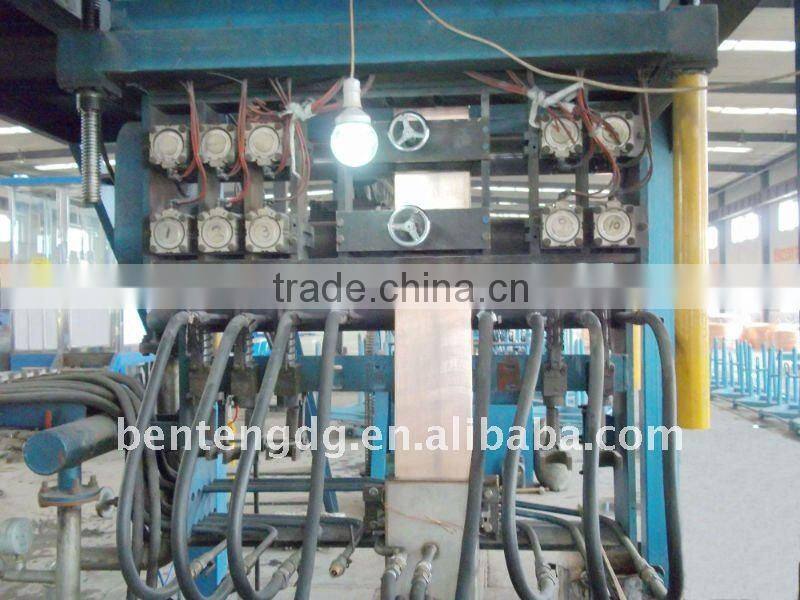

pulling unit
Take-up Machine
