Home > Products > Digital Karaoke Processor > With Professional PC Software Control Ktv Processor DSP9600
With Professional PC Software Control Ktv Processor DSP9600
- Guangzhou Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
With Professional PC Software Control Karaoke Mixer DSP6900
-
With Professional PC Software Control Karaoke Speaker Processor DSP6900
-
With Professional PC Software Control Karaoke Effect Audio Processor DSP6900
-
With 2levels Panel Lock Function Ktv Processor DSP6900
-
With 2levels Panel Lock Function Karaoke Sound Processor DSP6900
-
With 2levels Panel Lock Function Karaoke Processor DSP6900
Product Details
| Place of Origin | Guangdong, China | Brand Name | HMAUDIO | |
| Model Number | DSP9600 |
Product Description

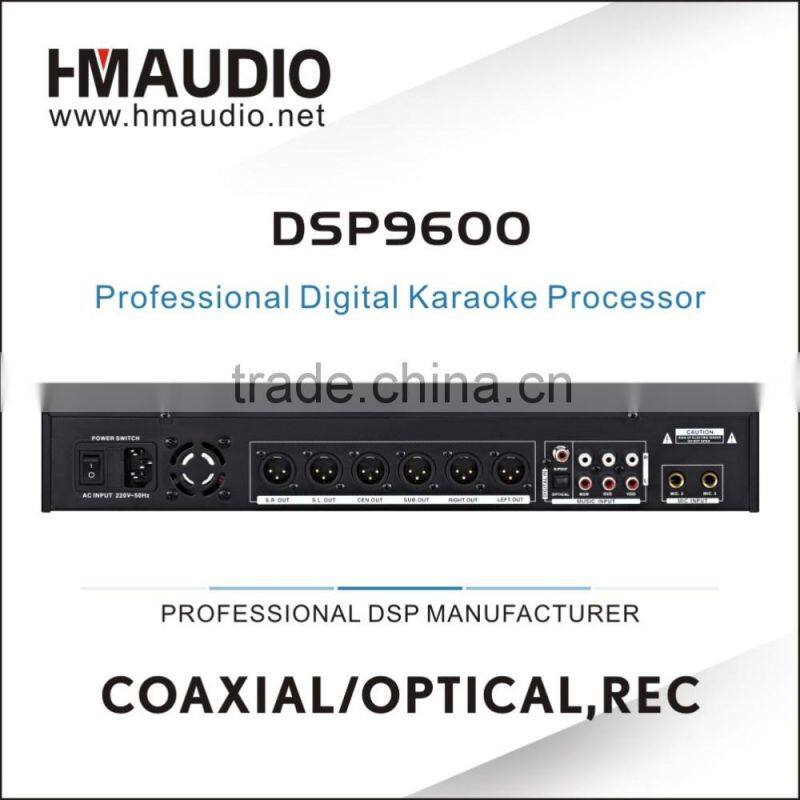

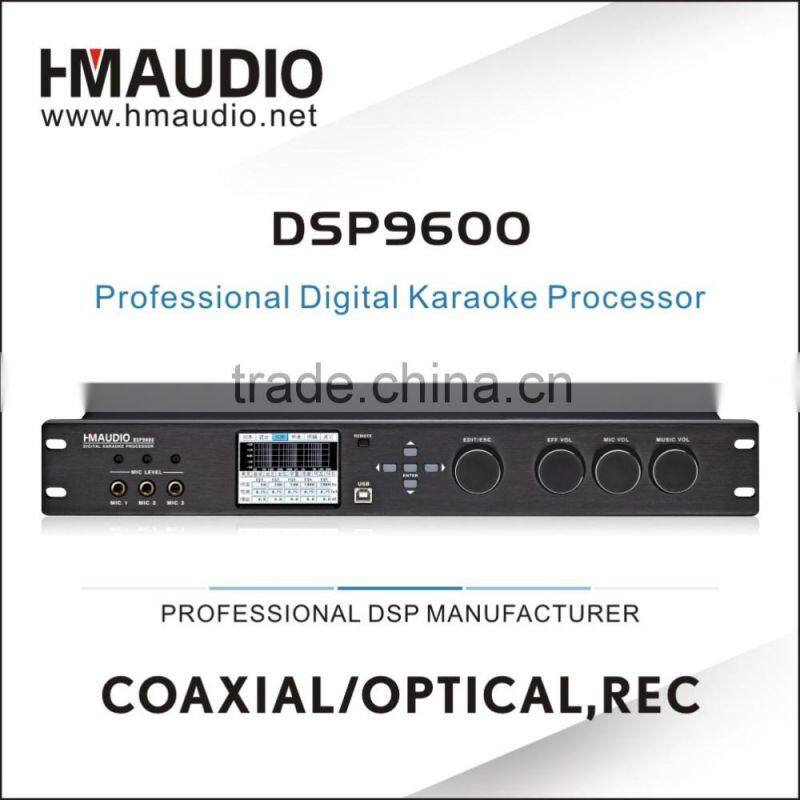

with Professional PC software control ktv processor DSP9600
Features for ktv Processor:
1.3.2 inch/ 320*240 pixel full color screen, EN / CN are optional.
2.5.1 balanced outputs, 4 levels feedback.
3.Singing and hot-dancing mode can be switched automatically.
4.HPF and LPF are for MIC channels, 13 bands PEQ is for MIC and music.
5.7 PEQ, crossovers, polarity, delay, limiter and gain are for main outputs.
6.5 PEQ, crossovers, polarity, delay, limiter and gain are for center, SUB and surround outputs.
7. USB and wifi interfaces are housed, ipad / iphone could get the access through wifi.
8. 10 preset and 10 user settings are available and 1 key to factory setting.
9. 3 levels lock function.
10.SUB channel is with auto decay when microphone inputs.
11.Coaxial and optical are available. REC output.
Technical parameters for ktv Processor:
Items | Parameters | Test | ||
Output Channel | Main (L/R) / Center / SUB / SURR (L/R) | |||
S/N R | MIC | 85 dB | 1KHz 0dB | |
| Music | 93 dB | Input | |
THD | MIC / Music | 0.01% | 1KHz 0dB Input | |
MAX Input Level | MIC | 250mv | 1KHz 0dB | |
| Music | 6 V | Input | |
MAX Output Level | MIC / Music | 10Vrms | 1KHz 0dB | |
Sensitivity | MIC | 15mV | Input | |
| Music | 300mV |
| |
Input Impedance | MIC | 10K unbalanced |
| |
| Music | 47K unbalanced |
| |
Output Impedance | 300Ω balanced, 1K unbalanced |
| ||
Crosstalk of Channels | 85dB |
| ||
Feedback | 4 Levels |
| ||
Parameters of Channels | MIC / Music Input | 13 bands PEQ+LPF+HPF, Gain: ±20dB.
|
| |
| L/R Main Output | Mixer+Polarity+7 Bands PEQ+LPF+HPF+Limiter+Delay+Gain |
| |
| Center / SURR / SUB
| Mixer+Polarity+5 Bands PEQ+LPF+HPF+Limiter+Delay+Gain |
| |
Gross Weight | 5.0 KG |
| ||
Package Dimensions(W*H*D) | 534*306*126mm | |||
FAQ:
Q1.Why us?
A.We specialize in R&D and manufacture of high-performance professional DSP audio products,such as professional audio processors,karaoke processors,professional amplifiers,karaoke amplifiers,power supply sequencer,power amplifier modules,mixer,equalizer,feedback exterminator and so on,with highly quality and competitive prices.
Q2.What’s your payment term?
A. We accept T/T,30% deposit at first and 70% balance needs to be paid before shipping.
Q3. How long is the delivery time?
A. Usually 25-35days for production. 1 day for sample delivery if it’s available in stock.
Q4. What’s your standard package?
A. Bubble wrap packaging inside and carton packaging outside.
Q5. How long is your product warranty?
A. 2years.
Q6. Could you do OEM/ODM for customers?
A. Yes,from the product design to packaging,our engineers can design exactly as your requirements.Any kind of logo printing or design is available ,If your order quantity is good .
Q7. What kind of certificates do you have ?
A. Our company has been awarded 3C, CQC.
