Overseas Third Party Support Available Wood Granulator Processing Line
1. We can undertake construction of automatic pellet line of various sizes;
2. Advanced design, compact structure, beautiful appearance;
3. Centralized control, printing, automatic control and automatic protection in real time, safe and reliable;
4. Fully intelligent control system;
5. Technical experts with rich experience can provide you with first-class technology and equipment.
Wood Pellet Making Process & Success Cases
Wood Pellet Machine
Specification of Wood Pellet Mill
1.Unique Design.
6. Wide applicable scope:It can process different materials such as biomass materials like wood, sawdust, sugar cane, bamboo, rice husk, grass, straw,etc, and some special raw materials like rubber, clay and plastic as well.
Characteristics of Ring Die Wood Pellet Mill
• Feeding vertically and directly to pelletizing room.
• Die static, rollers rotating, materials centrifugal, evenly distributed around.
• Double-layer dies, up and down dual use, high capacity and energy saving.
• Ring die, vertical structure, conducive to the pelletizing room cooling.
• Independent output device, ensure formation rate of pellets.
• Independent lubrication system, bring precise & automatic lubrication to bearings.
• Feeding system is equipped with inverter which can bring stepless adjustable feeding speed.
Technical Index of Wood Pellet Mill
| MODEL | LGX-900 | LGX-550 | |
| Power | Host Machine | 90 | 55 |
| (kw) | |||
| Pellet Pusher | 1.5 | Spindle drive | |
| Electric Grease Pump | 0.37 | 0.37 | |
| Host Machine | 2300*1250*2650 | 2160*1000*1900 | |
| External Dimension (mm) | |||
| Machine Weight ( t ) | 6.8 | 3.6 | |
| Rotation Speed (r/min) | 1450 | 1450 | |
| Voltage (v) | 380,3phase or customized | 380,3phase or customized | |
| Mould Diameter (mm) | 550 | 450 | |
| Pellet Size (mm) | 4~12 | 4~12 | |
| Palletizing Temperature (°C) | 80-100 | 80-100 | |
| Raw Material | 15-25 | 15-25 | |
| Moisture Content (%) | |||
| Capacity (t/h) | 1.5 | 0.8--1.0 | |
Rotary dryer machine is also called roll dryer, which is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube.
The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
Hammer Mill
This kind of hammer mill is widely used in crushing all kinds of crop stalk, cotton firewood, willow, straw, clover, peanuts shells, cotton seed, wood chip and etc.
This machine has advantages of compact structure, strong and durable design, safe and reliable performance, easy operation, lowers noise & vibration, high efficiency & low energy consumption and etc. And spare parts of the machine completely adopt quality material, outsourcing parts adopting domestic optimal product, the whole machine’s quality is reliable, long-lived.

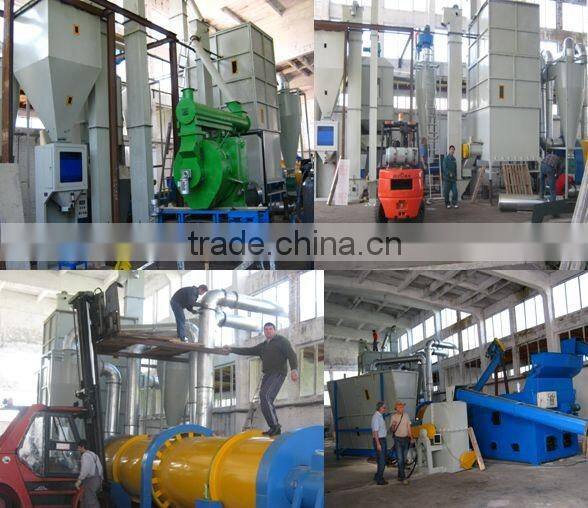

Successful Cases
In Hungary
In Vietnam
In Newzealand
