The Second Generation Game Consoles PS3 Joystick Timer Board

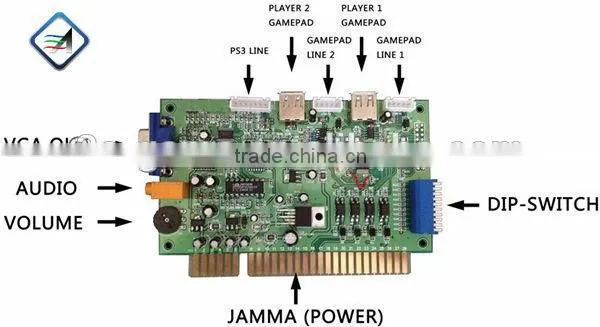

1.Connection Description:

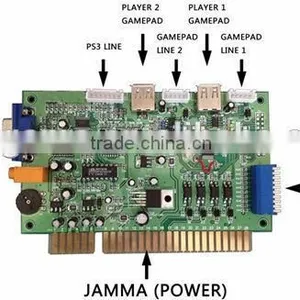

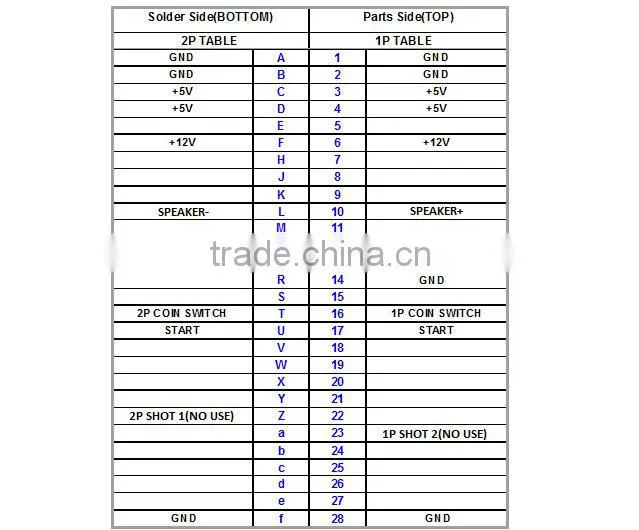

1) PS3 TIMER JAMMA PINOUT (Picture1)
Picture 1

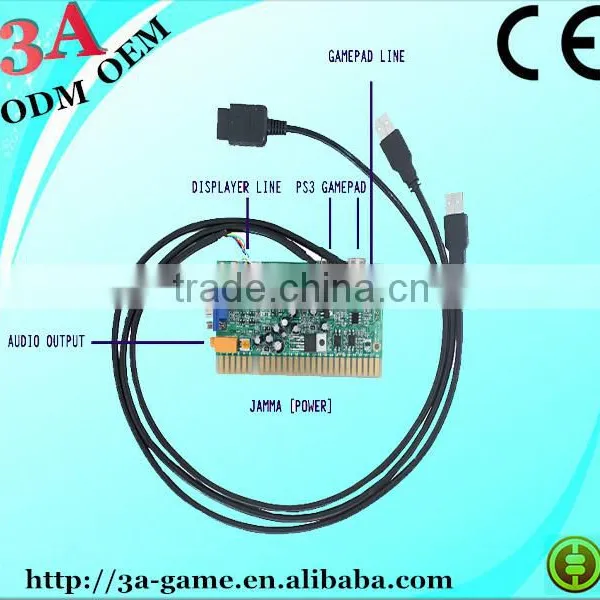

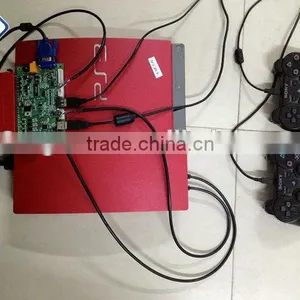

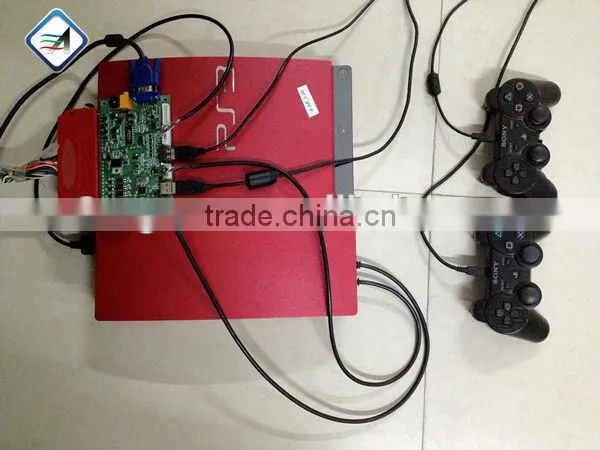

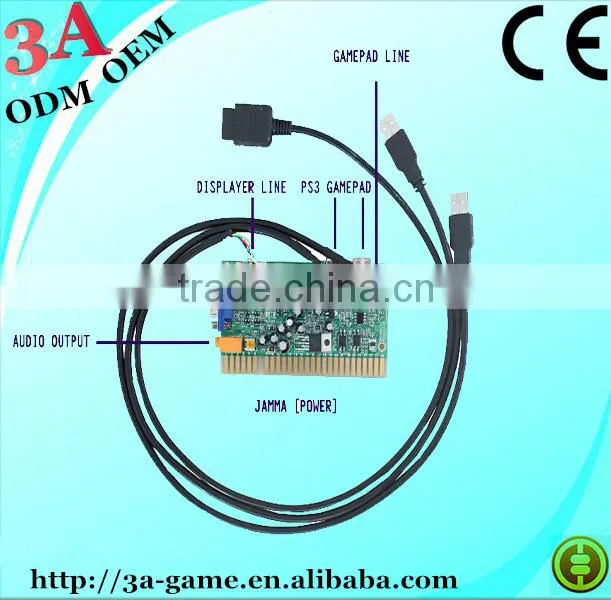

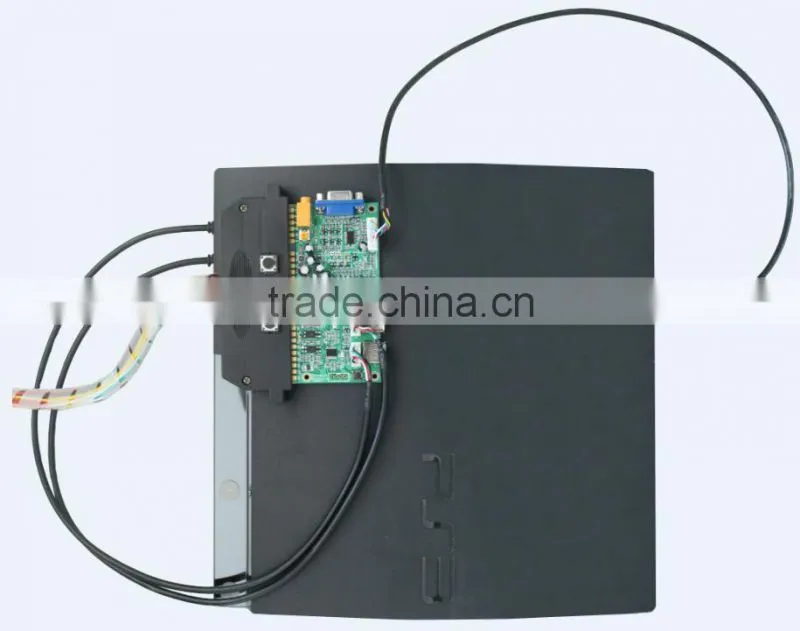

1) Original cable PS3 gamepad and JAMMA are available, the connecting schematic diagram of IO board, Motherboard and gamepad(P2)
- Specifications
timer board,timer interface for arcade coin operated machine,support copy games from hard drivers to play more mulit games
- Description
PS3 console Time control timer board for PS3 console to Jamma cabinet game. Add new games by yourself;
1 |
1P/2P time counter inderpendent ( 2 coin slots), 1P/2P use one time counter (one coin slot), or 1P/2P time counter certral control (one coin slot) |
2 |
1P / 2P time counter displayed on screen independent |
3 |
[ Insert coin ] – prompt on screen |
4 |
[ Time out ] – and [ continue ] – prompt on screen withnd alert |
5 |
One coin play-time can be adjusted from 1~60 minutes by Settings menu |
6 |
Attract sound can be enabled or disabled by Settings menu |
7 |
Free-play mode can be selected by Settings menu |
8 |
Can be connected to the TV with VGA Input |
2.Instructions:

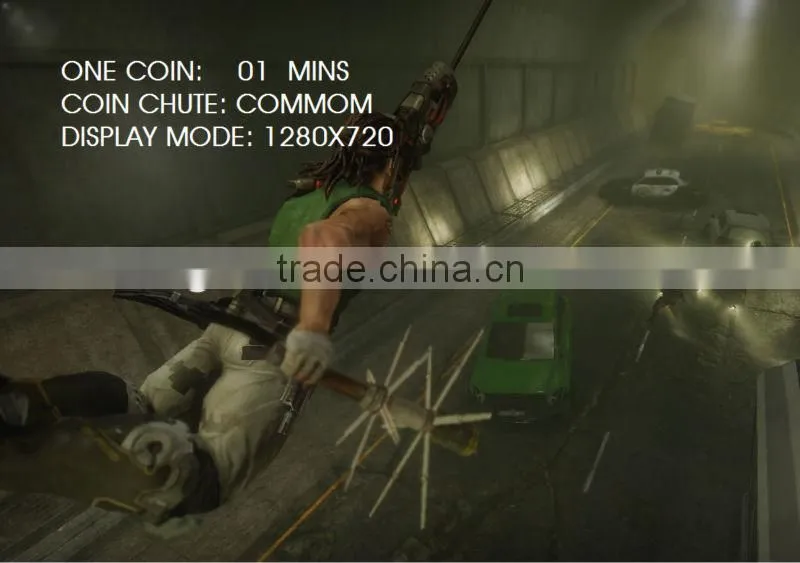

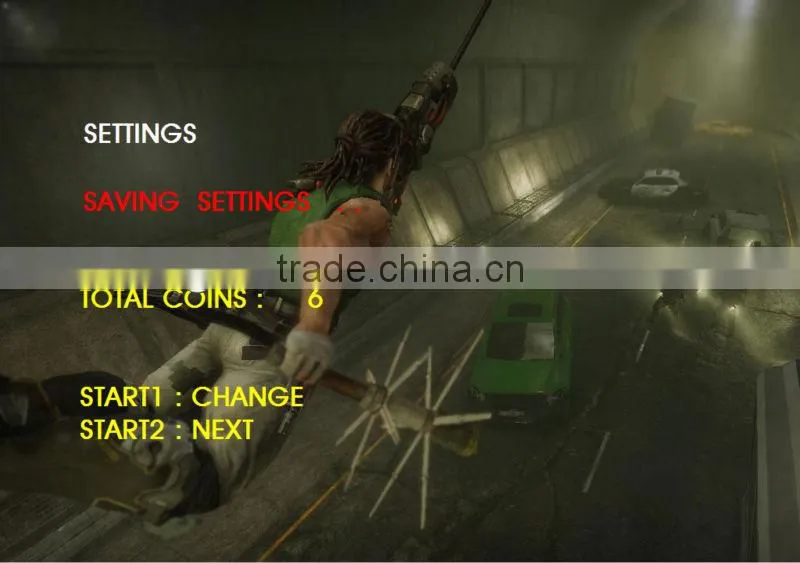

1) Suggested TIMER BOARD and host start at the same time with electricity, after successful start up, the screen will display the following text, shows the current setting state.( Picture3)

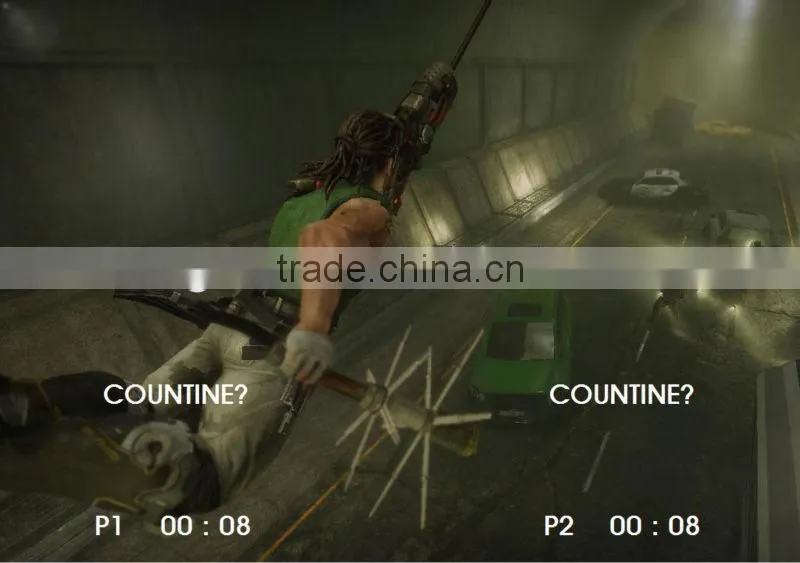

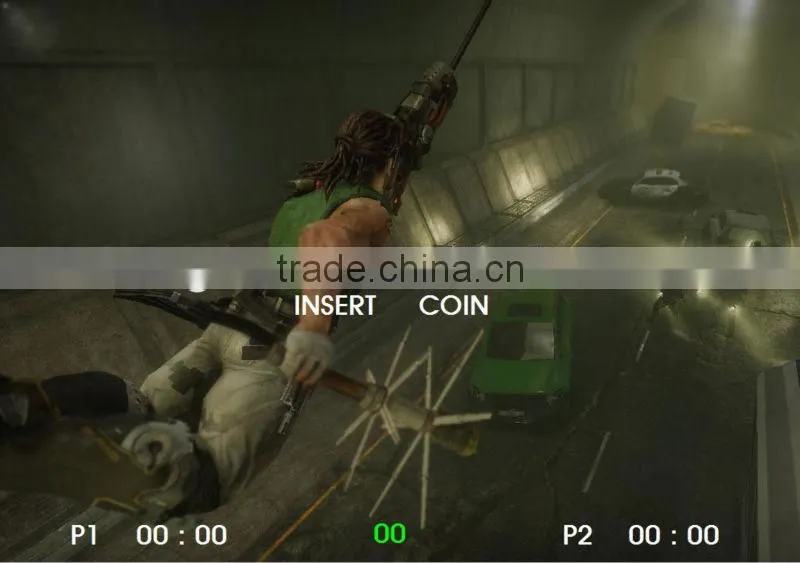

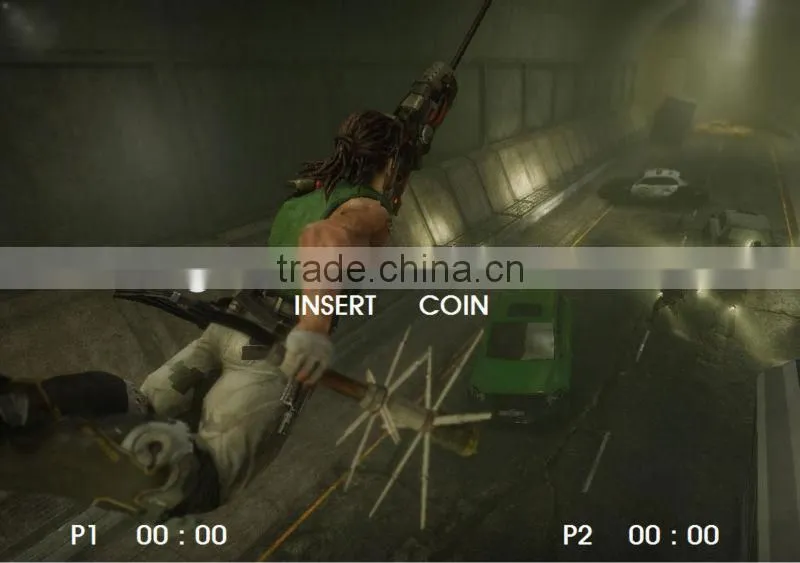

2)After 5 seconds will shows the following text(Picture4), now can pay to start the game with gamepad. P1/P2 displays the Playtime, Playtime will be hidden after 5 seconds, When the coin 1P or 2P again or press the start button again to display five seconds, Do not insert coins or no playtime, will always show. When the playtime remaining 10 seconds, Will be prompted COUNTINE?, Then do not insert coins will be return to [INSERT COIN] screen (Picture5)
3.Settings:

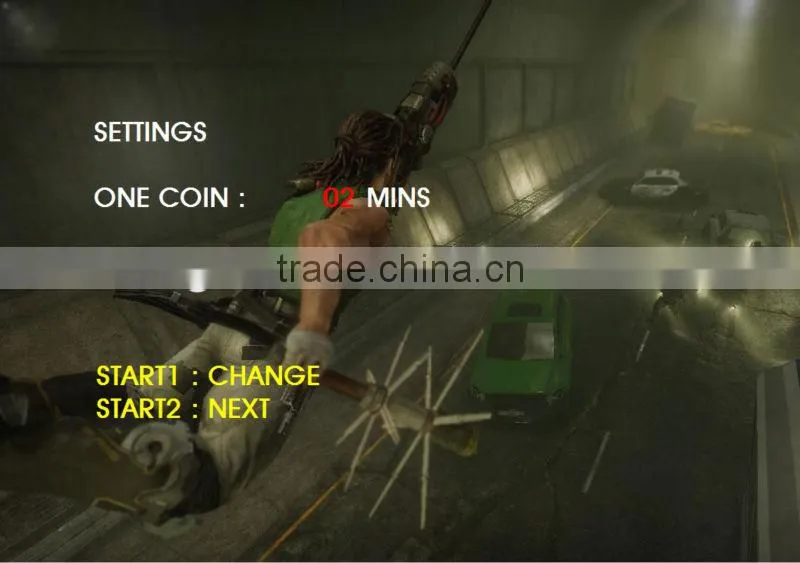

1) playtime setting>>Press [SET BUTTON] on Picture2, will displays setting text(Picture6), the red 02 represent the playtime of one coin, can choose from 01~60 minutes, use the JAMMA START1 BUTTON to change, finished to press JAMMA START2 BUTTON to the next page:[coin chute setting].

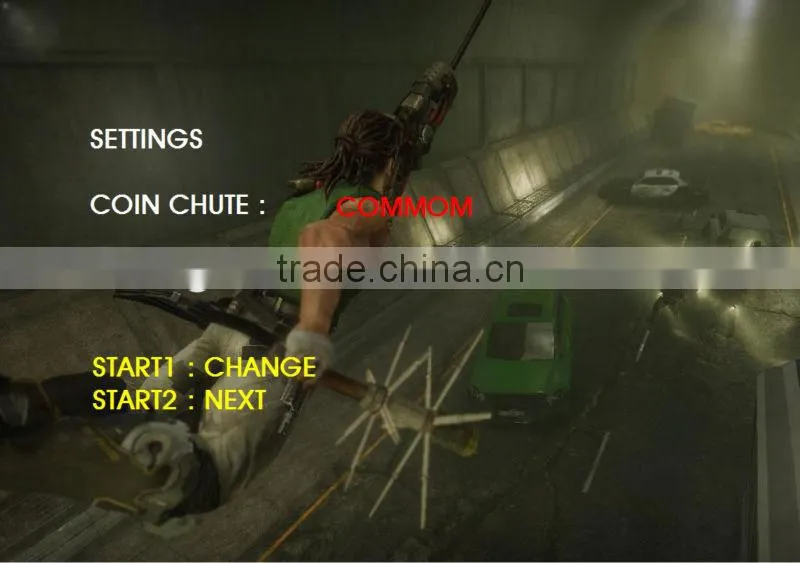

2) 2Coin chute setting>> use the JAMMA START1 BUTTON to change the coin chute, there are three types: COMMOM,INDIVIDUAL(Picture7),CENTRAL(Picture8), finished to press JAMMA START2 BUTTON to the next page:[ Text and host resolution match setting]

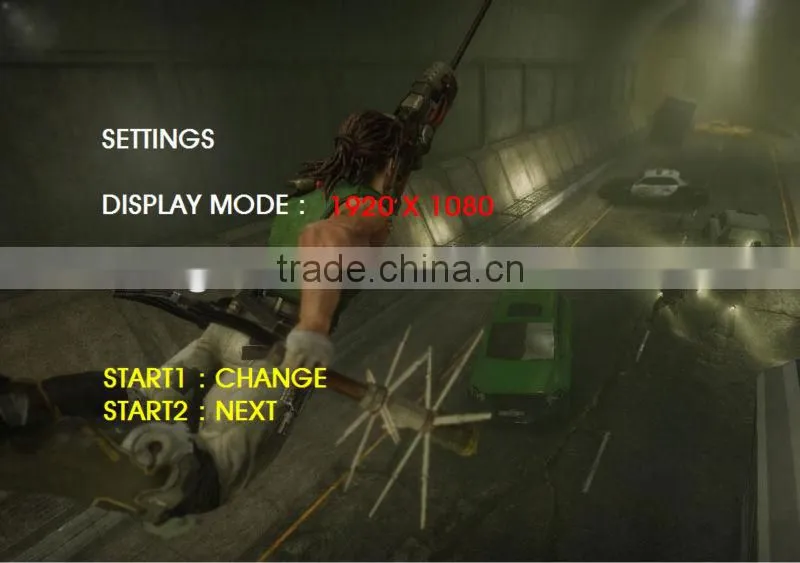

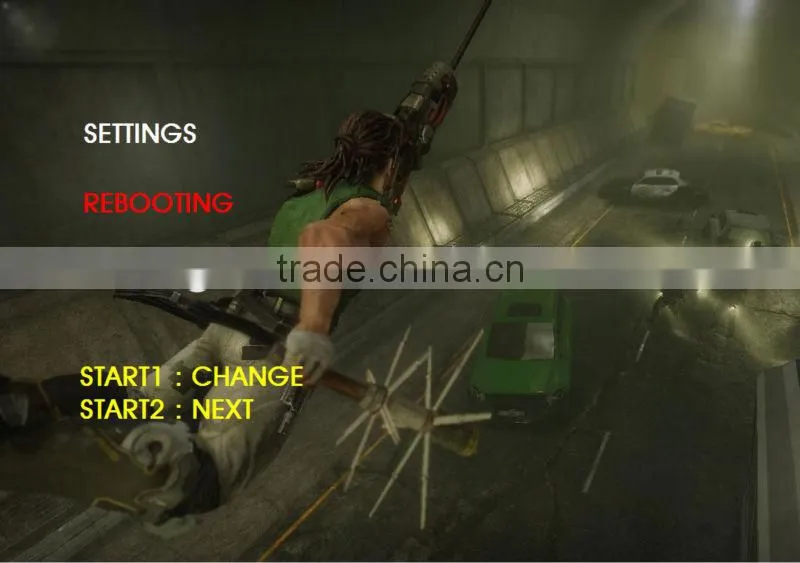

3) Text and host resolution match setting>> use the JAMMA START1 BUTTON to change the resolution which match text and host, there are 6 kinds of display resolution setting: 1920X1080,1440X900,1280X768,1280X720, 1024X768,640X480(Picture9), finished to press JAMMA START2 BUTTON will be auto save and reboot. (Picture10)
4) Total Coins record clear >>TIMER BOARD can records coins, see TOTAL COINS in the setting menu.To clear this record, please press SET BUTTON when power-off; release the button after power-on three seconds, then keep pressing JAMMA START1 BUTTON, wait until screen displays COINS CLEAR,clear success.
