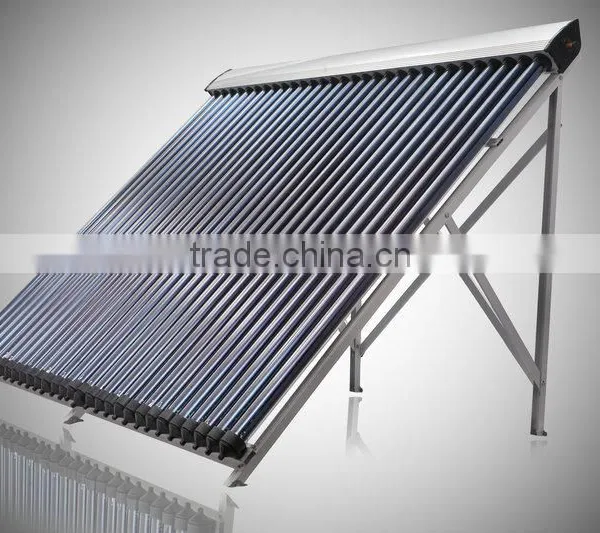

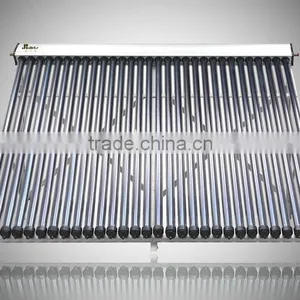

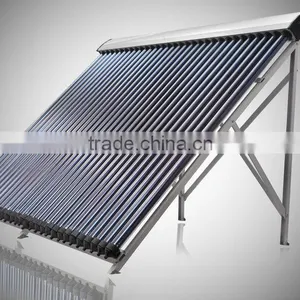

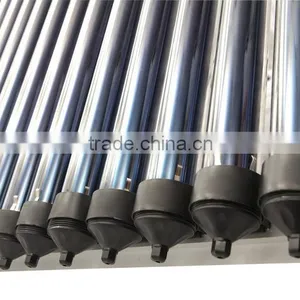

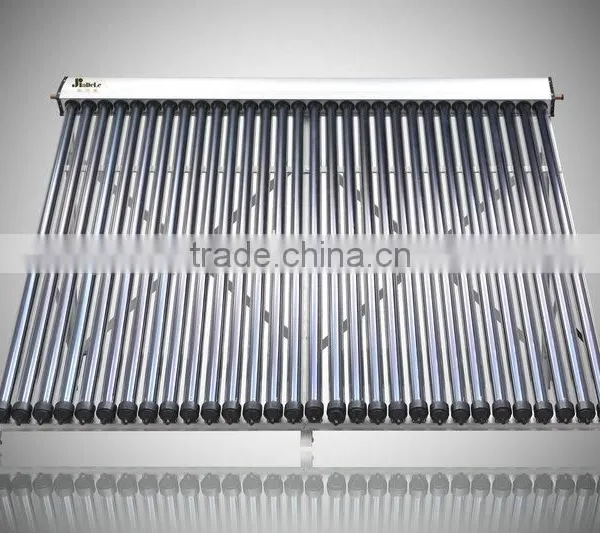

Help CenterJiadele Pressurized Solar Collector
Related Products
Specific data of the solar collector
Gross area: 25 tubes =4.06m2
Absorber area: 25 tubes = 2.01m2
Weight empty: 90Kg
Number of absorber elements: 25
Length of the tubes: 1800mm
Absorber pitch: 75mm
Type: Evacuated tube collector with heat pipe
Material of the cover: aluminum
Material of the cover tube: borosilicate glass
Transmission of the cover tube: 86%
Outer diameter of the cover tube: 58mm
Outer diameter of the inner tube: 47mm
Thickness of the cover tube: 1.6mm
Heat transfer fluid: water
Absorber
Material of the absorber: Glass
Absorber coating: AL-SS/CU
Absorptive coefficient: 92%
Emissivity coefficient: 6%
Material of the absorber pipes: Copper
Layout of the absorber pipes: heat pipe
Material of the header pipe: copper
Outer diameter of the header pipe: 14mm
Insulation
Thickness of the insulation in the header: 50mm
Material of the insulation in the header: cock wool
Limitations
Max.temperature: 99°C
Max: operating pressure: 6 bar
Specification
Material of inner manifold: copper, with stand pressure up to 0.6Mpa for pressurized system.
Outer of Manifold: Aluminum Alloy, thickness: 2.0mm
Frame: Aluminum Alloy, thickness: 2.0mm
Zhejiang Jiadele Solar Energy Co.,Ltd, is established in 1998. We are one of leading manufacturer and supplier of solar water heater in China. Non-pressurized solar water heater, pressurized solar water heater, split solar water heater, copper coil solar water heater, pressurized solar collector, non-pressurized solar water heater, U-type pressurized solar water heater .
For more products information, please go ahead to visite our website or contact with me directly.
