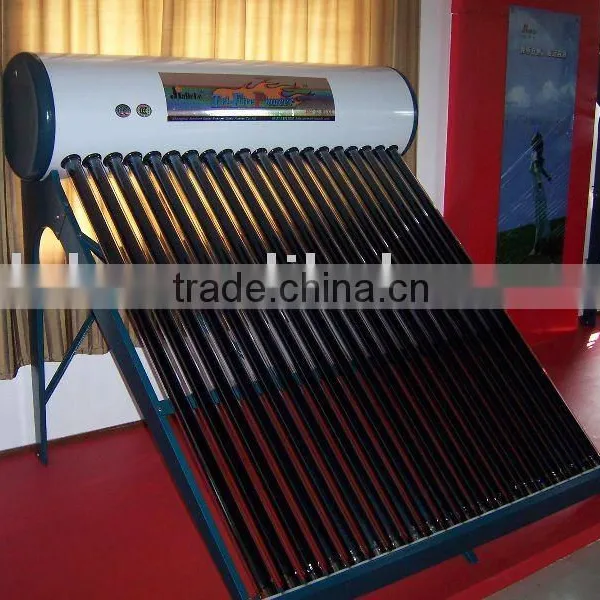

Copper Coil Pressurized Solar Water Heater

Copper Coil Pressurized Solar Water Heater photo-1
US$ 300 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai hangzhou ningbo
Delivery Detail:
Delivery time depends on order quantity.
Type Evacuated Tube
Pressure Pressurized
Circulation Type Direct / Open Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Direct-Plug
Installation Wall Mounted
Housing Material Plastic
Certification CE, Other, CE, SK RSCC ISO9001 CCC
Capacity 200240300
Place of Origin Zhejiang, China
Brand Name JIADELE
Model Number JDL-CC

Specifications

1) Copper coil pressurized solar water heater
2) Best quality
3) SK SRCC CE ISO9001 approved
4) Clearn and safe
5)

Copper coil pressurized solar water heater



Characteristics

1.Instant heat exchange; plentiful warm water for use

2.Fresh water quality

3.Works with pressure

4.Output water temperature is stable, so it is very comfortable and safe to use

5.Hot&cold water flow is separated

6.Seamless Copper coil is tested and does not break;high grade materials are used

7.Works easy and intelligently, very reliable

8.Perfect operation

9) With 5L assistant tank to keep tank always full of water;

10) Offer exhaust pipe lenger than the vertial assistant tank;



Material:

1.Inner tank:stainless steel SUS304--0.50mm.
2. Vacuum tube:QB-AL-CU/SS Coating, size:58-1900mm
3. Outer tank:painted steel-0.35mm;stainless steel SUS304
4. Frame:coated galvanized steel-1.5mm; AL-Alloy steel-2.00mm

5. The masterial of insulation:polyurethane

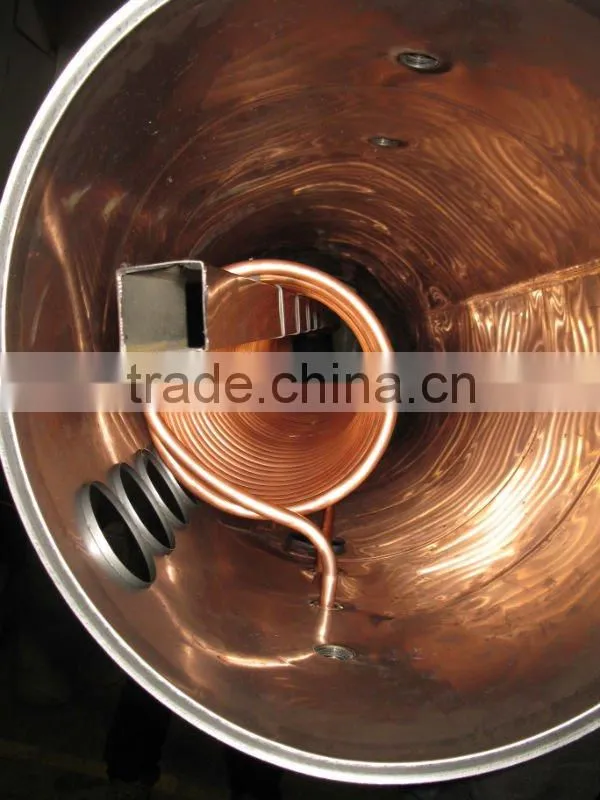

6. Copper coil:Ø12mm,thickness 0.8mm.



Model:JDL Copper Coil Water Heater(new model with varies cap

Model No Gross Absorber Area (Sqm)       Tube diatemer Tube Length Tubes No. tank Capacity weight volume/set
(mm) (mm) (unit litre) (Kg) (Cbm)
JDL-CC20-58/1.9 2.80 58 1900 20 170 100 0.82
JDL-CC24-58/1.9 3.3 58 1900 24 205 110 0.93
JDL-CC30-58/1.9 4.1 58 1900 30 255 130 1.12



More details please contact Sophia Zhu

Tel: 0086-13656623008



Copper coil pressurized solar water heaterCopper coil pressurized solar water heaterCopper coil pressurized solar water heater
