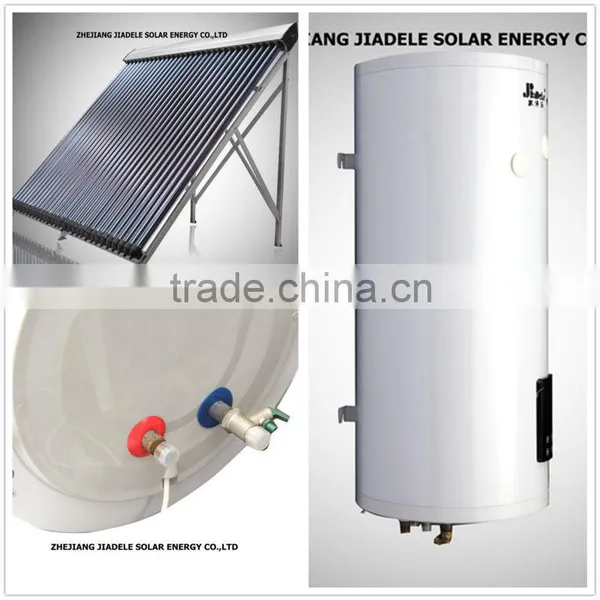

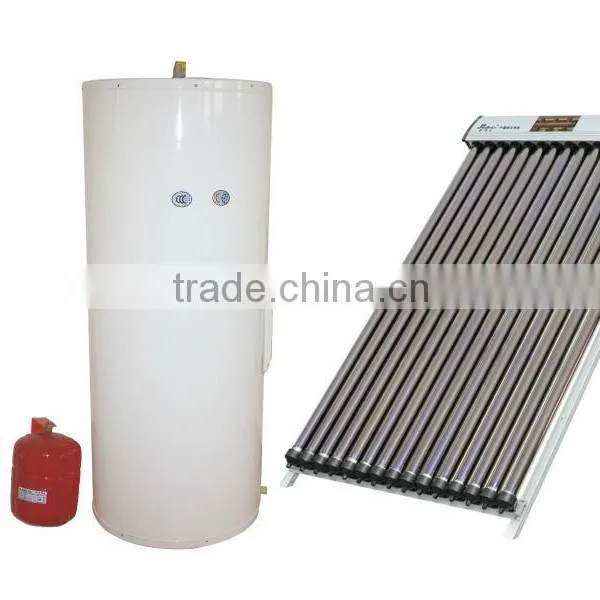

Jiadele split pressurized solar water heater

Jiadele split pressurized solar water heater

Specification

Solar collector

Length of the tubes: 1800mm

Type: pressuirzed solar water heater

Material of the cover: aluminum

Material of the cover tube: borosilicate glass

Transmission of the cover tube: 86%

Outer diameter of the cover tube: 58mm

Outer diameter of the inner tube: 47mm

Thickness of the cover tube: 1.6mm

Heat transfer fluid: water

Absorber

Material of the absorber: Glass

Absorber coating: AL-SS/CU

Absorptive coefficient: 92%

Emissivity coefficient: 6%

Insulation

Thickness of the insulation in the header: 50mm

Material of the insulation in the header: polyurethane

Specification

Material of inner manifold: stainless steel

Outer of Manifold: Aluminum Alloy, thickness: 2.0mm

Frame: Aluminum Alloy, thickness: 2.0mm

Water tank

capacity: 150L ,200L, 250L, 300L, 350L, 400L, 500L

Material of inner tank: SUS304

Material of outer tank: galvanized steel

insulation: polyurethane 45mm or 50mm

diameter of water tank: 470mm, 560mm, 700mm

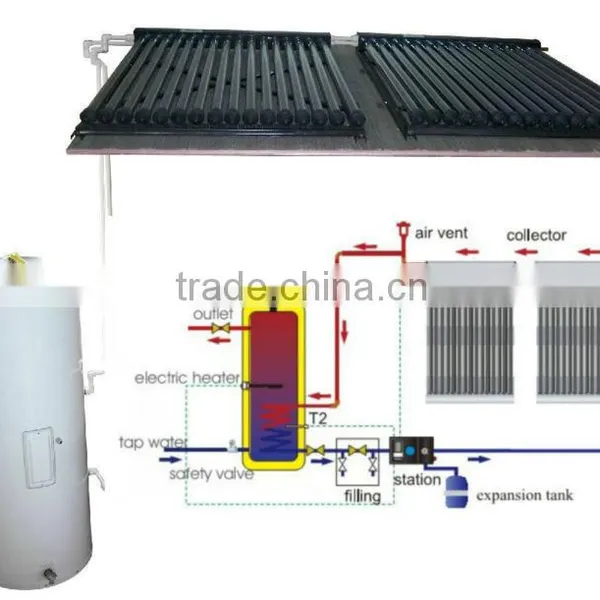

Work station:

velo circulation pump

flometer

expansion pump

 manometer

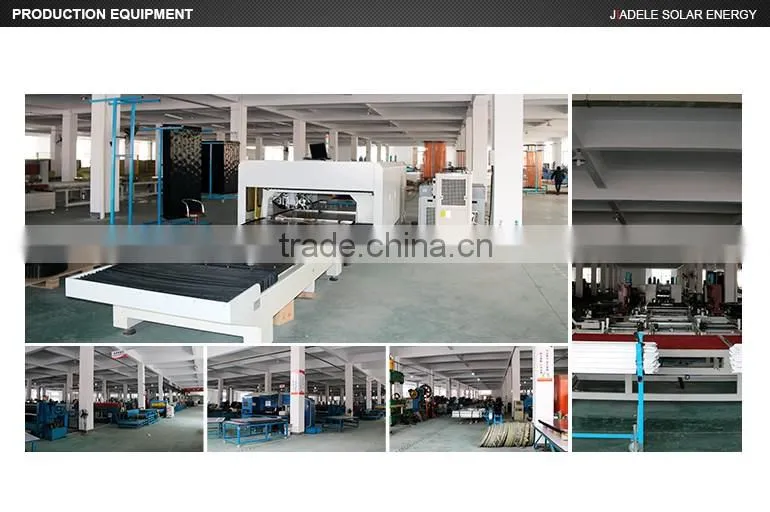

Zhejiang Jiadele Solar Energy Co.,Ltd, is established in 1998. We are one of leading manufacturer and supplier of solar water heater in China. Non-pressurized solar water heater, pressurized solar water heater, split solar water heater, copper coil solar water heater, pressurized solar collector, non-pressurized solar water heater, U-type pressurized solar water heater .

For more products information, please go ahead to visite our website or contact with me directly.
