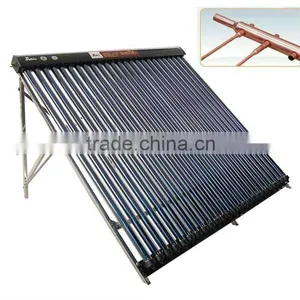

Solar Collector with heat pipe

Specifications

Solar Collector with heat pipe
2) SK SRCC CE ISO9001approved
3) highest efficiency
4) best quality
5) special

Solar Collector with heat pipe







Key Specification:



Water is rapidly heated by the heat pipe



There is no water in the vacuum tube, so the tube will not break in winter



The small size of the collector allows for versatile architectonic integration



Collector can be combines with existing pipeline



The collector can operate even in case of a broken tube. A single tube can if necessary be exchanged without interruption of the heating cycle.







Material:



Outer tank: aluminum alloy 2.0mm



Frame if made of aluminum alloy.







Remark:



Manifold connection(inch):1/2 3/4



Test pressure(pa):1MPa



Operating fluid ppressure(pa):0.6MPa



Max. service temperature:95



Max. stagnation temperature:242



Distance from tube to tube:75



Flow range recommendation:50-150l/m2h



Insulation thickness(mm):40



Min. collector angle(degree):15



Max. collector angle(degree):75



Payment:T/T
Delivery time:10 days
Minimum order:1 set
Shipping port:Shanghai or Ningbo
