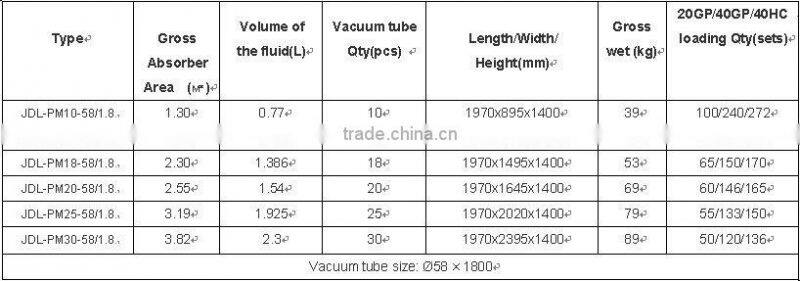

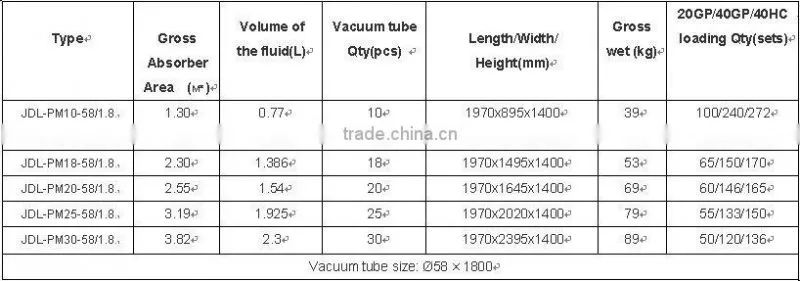

Specifications
1) Solar collector module2) SK SRCC CE ISO9001approved
3) highest efficiency
4) best quality
5) special for project

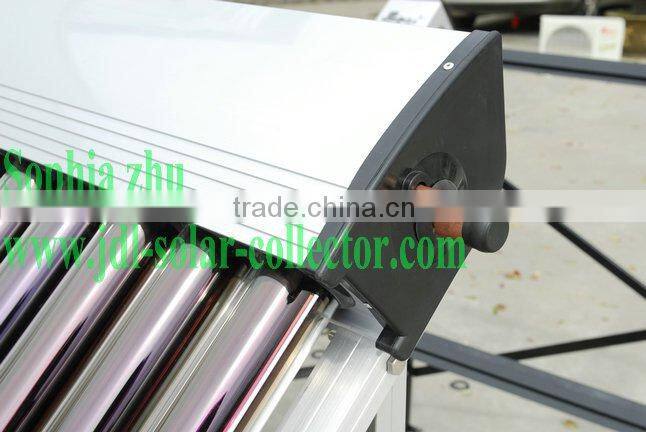

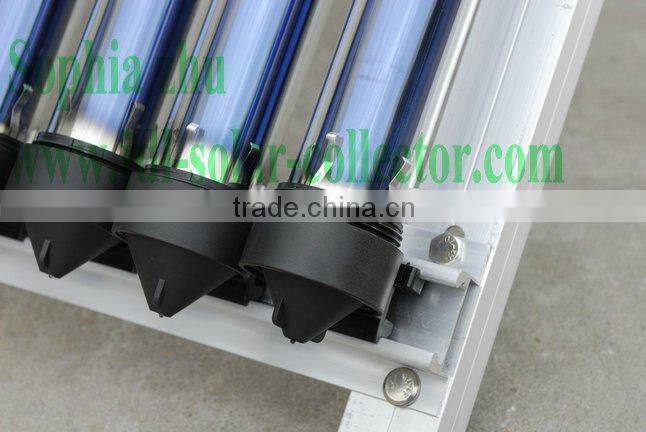

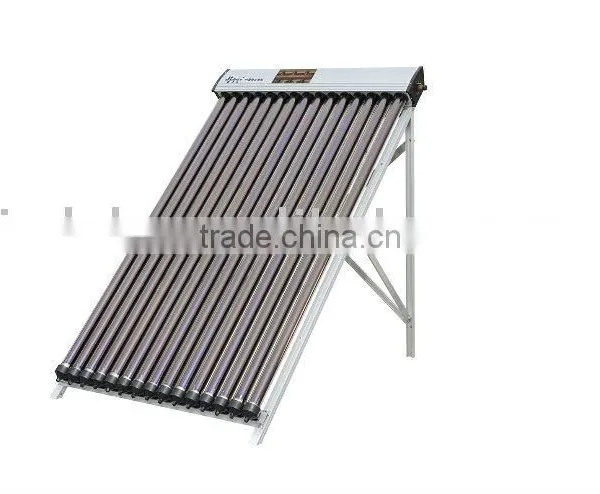

Pressurized solar collector
Characteristics
1.Water is rapidly heated by the heat pipe
2.There is no water in the vacuum tube, so the tube will not break in winter
3.The small size of the collector allows for versatile architectonic integration
4.Collector can be combined with existing pipeline
5.The collector can operate even in case of a broken tube. A single tube can, if necessary, be exchanged without interruption of the heating cycle.

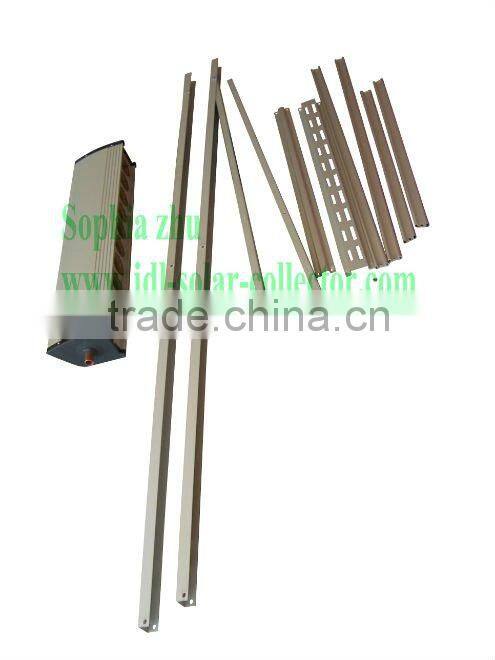

Material:
1.Outer header box: AL-Alloy, 2.00mm.
2.Inner manifold: Pure copper, thickness: 1.00mm, Dia. 35mm(middle);
3. Frame: AL-Alloy, 2.00mm thickness
4.Vacuum tube with heat pipe;
