Changeover Rotary Cam Universal Switch LW42 LW40 Series 100A 3 Poles Panel Installation Electrical High Voltage Control Machine
- NINGBO YIWU SHANGHAI
- Credit Card
You May Like
-
Changeover Rotary Cam Universal Switch LW5-30A 3 Poles Ironclad Electrical High Voltage Control Machine
-
Rotary Switch LW26-125/2 Special Red Copper Connection Straps Universal Switch Two Poles 4 Position Switch Changeover Switch
-
Rotary Switch YMZ12-20/2GS Pad Lock On-off 2 Poles 2 Position Universal Changeover Switch Ith 20A Ui 690V 50/60Hz 5.5/7.5kw
-
Rotary Switch LW42 LW40 20A 2 Poles With Lock Changeover Cam Universal Switch High Voltage Control Machine AC 7.5 KW
-
Rotary Switch YMW26-20/3 6 Position 3 Poles 660V 10 Terminals 20A Automatic Universal Changeover Switch Silver Contact LW26-20/3
-
Rotary Switch YMW26 20A-63A With Protecting Mask Wahterproof 1-3 Poles 3 Position Changeover Cam Switch Sliver Contact
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YAMING | |
| Model Number | LW42 | Max. Current | 100A | |
| Max. Voltage | 690V | Mechanical Life | 300000 |
Product Description

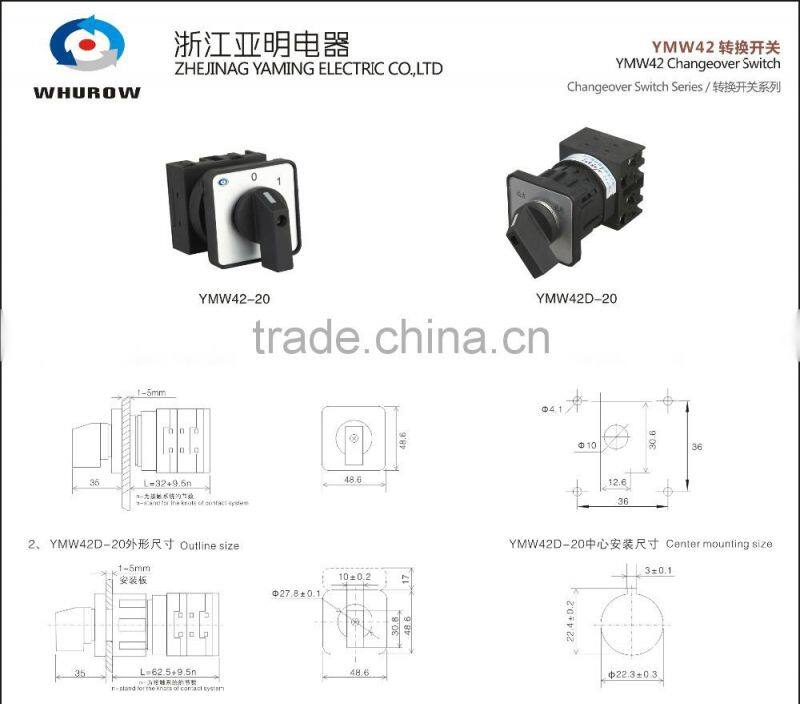

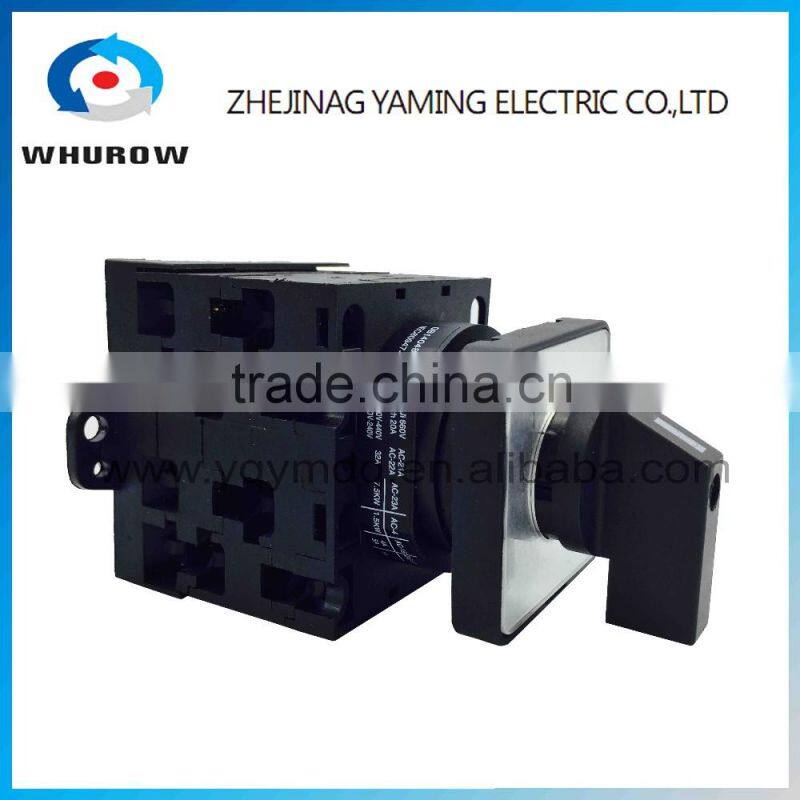

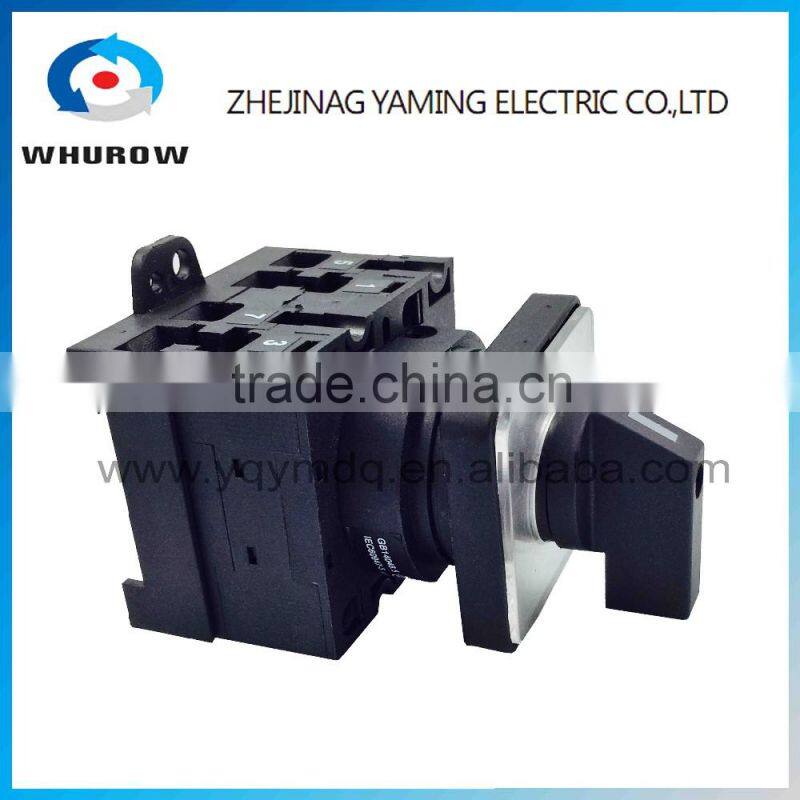

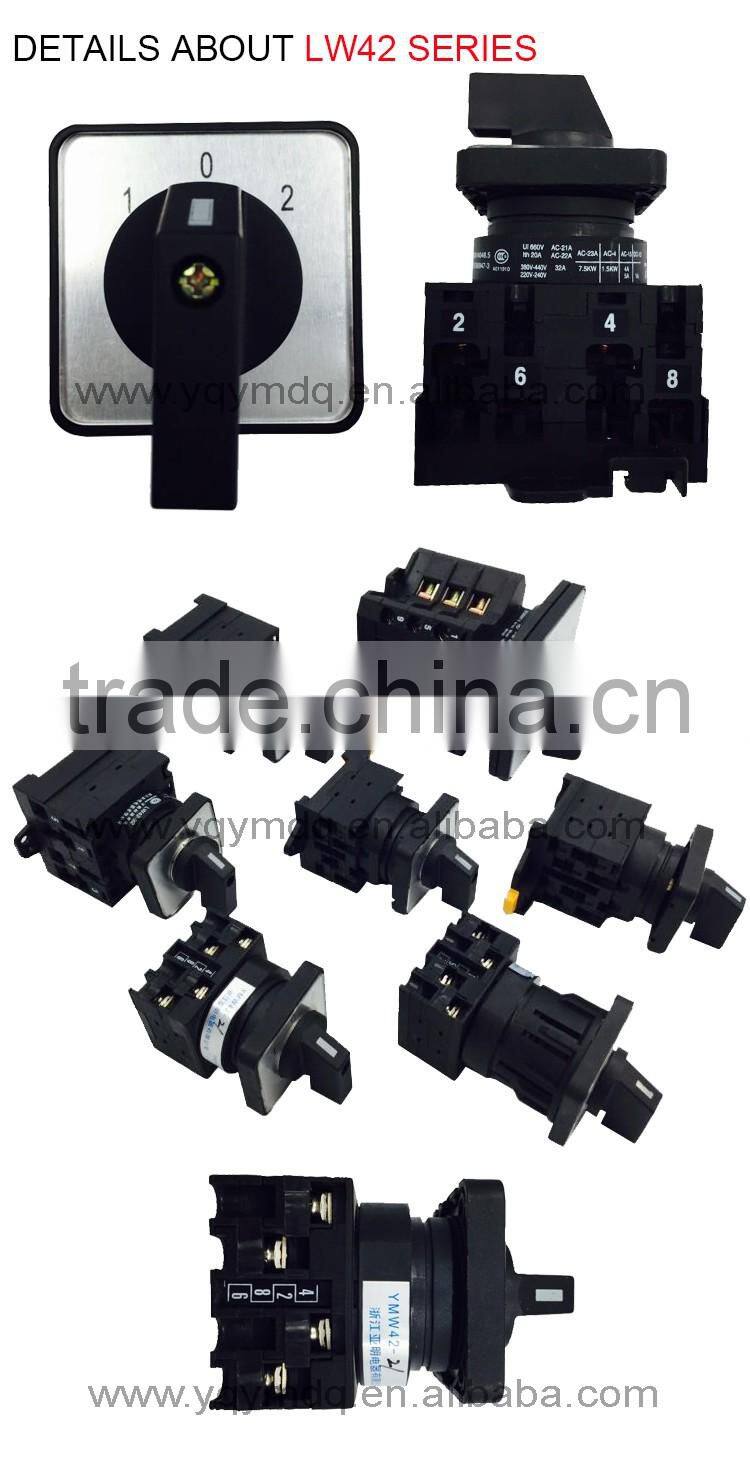

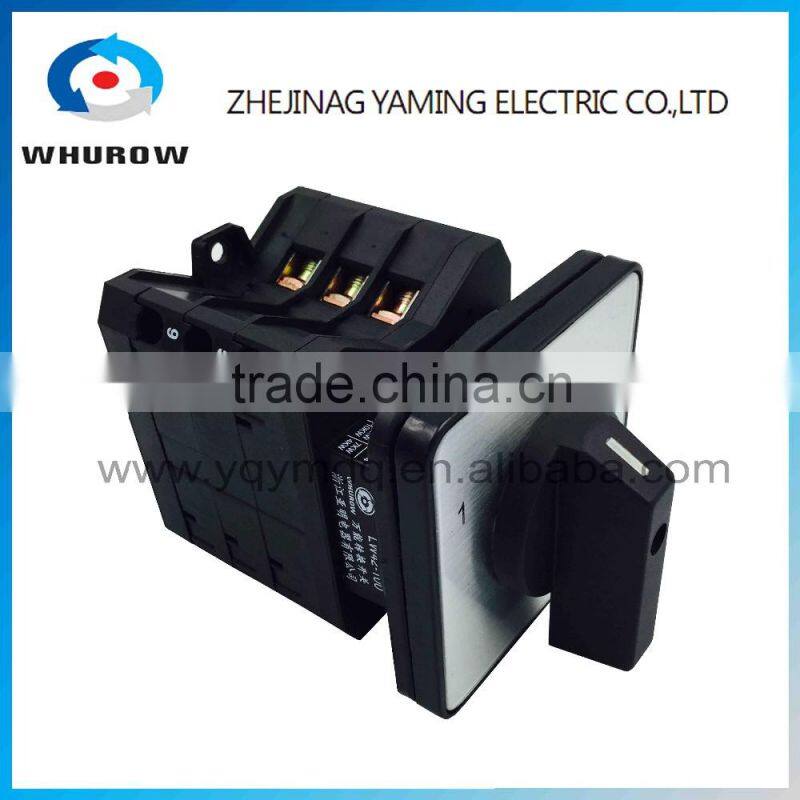

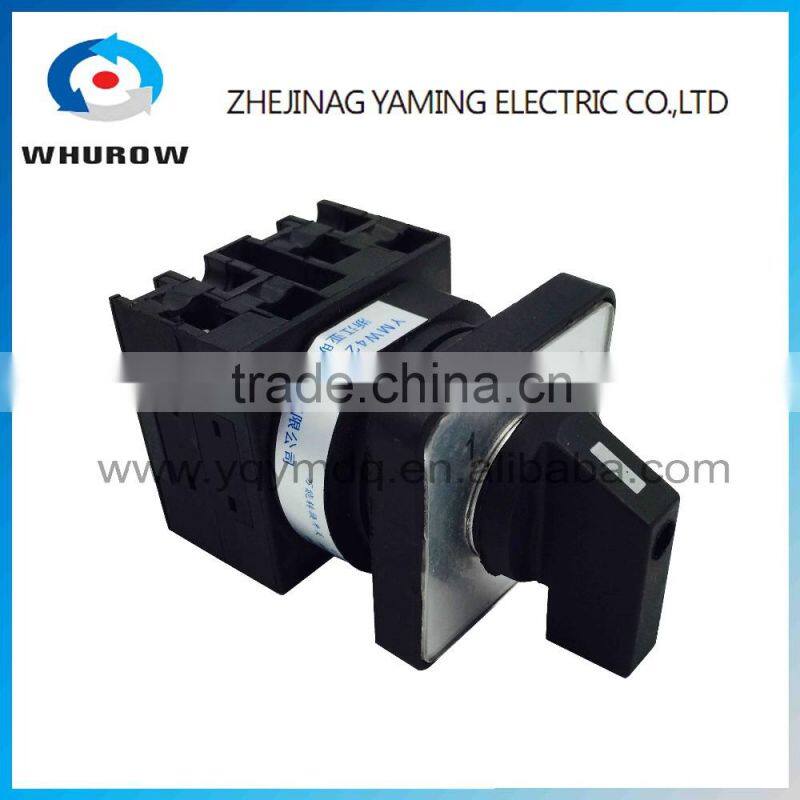

Rotary switches LW42 (YMW42) series
Application:
YMW42 series changeover switch is used in the circuits of AC 50Hz,rated voltage up to 690V,DC voltage up to 240V,rated current up to 16A, to manually transfer the control circuits and electric meters non-frequently, also it can directly control small capacity alternating motor,used as master control and electric measurement.
Classification:
1.According to application,the switch divided into the types of changeover of main cricuit,direct control motor,master control and measurement.
2.As per operating mode,it divided into positioned type,self-recover type,postioned self-recover type
3.According to knots of contact system:The positioned type:1-12knots,self-recover type: 1-4knots,type of direct controlling motor:1-6 knots
4.According to rotation angle:30°,45°,60°,and 90°
5.According to installation points:screw installation and center installation.
Technical Parameters:
| Rated insulation voltage Ui(V) | 690V |
| Hot current contract lth(A) | 20A,32A,63A,100A |
| AC3(3 X 380V) | 4KW |
| AC23(3 X 380V) | 7.5KW |
| AC21 | 20A |
| DC1(24V) | 20A |
If you want to know more about rotary switch, please contact us.

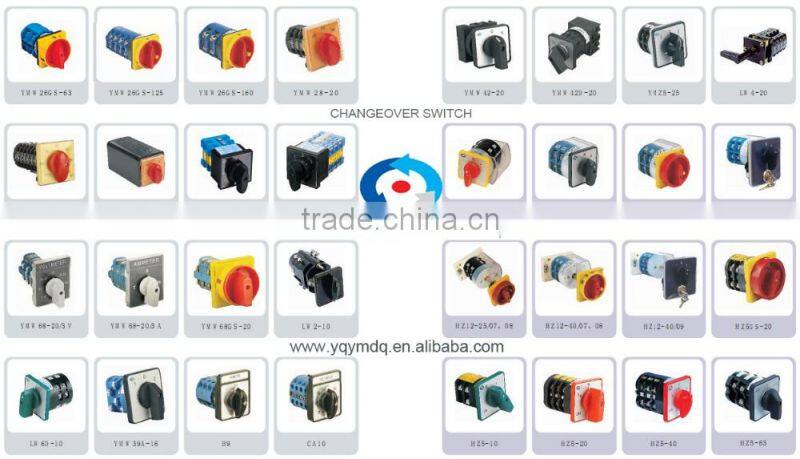

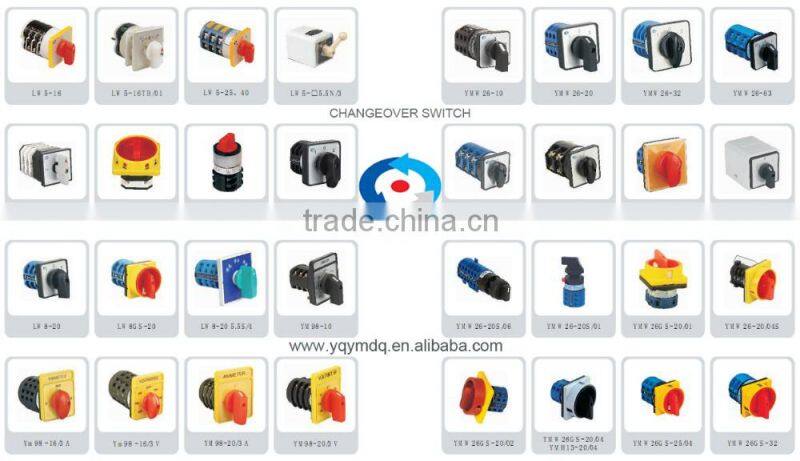

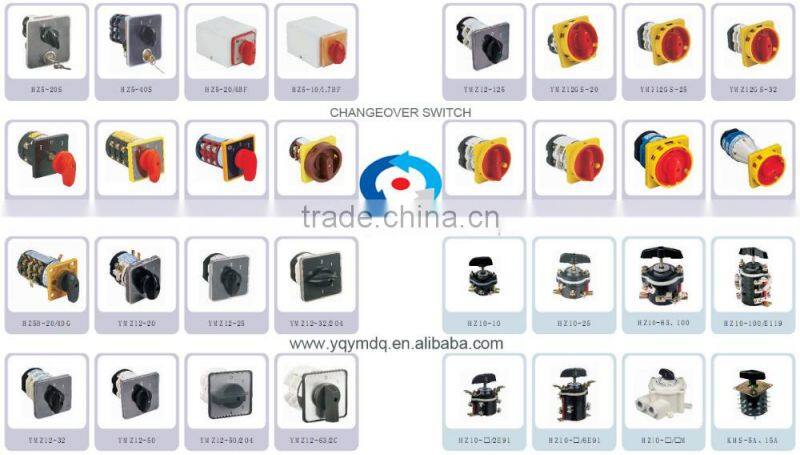

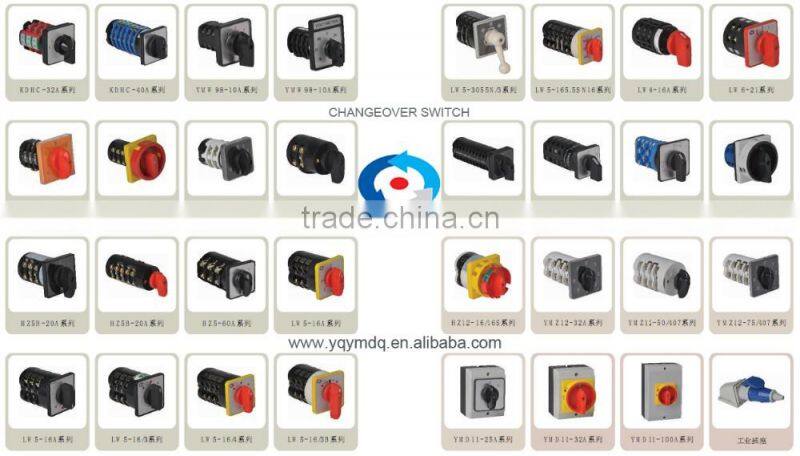

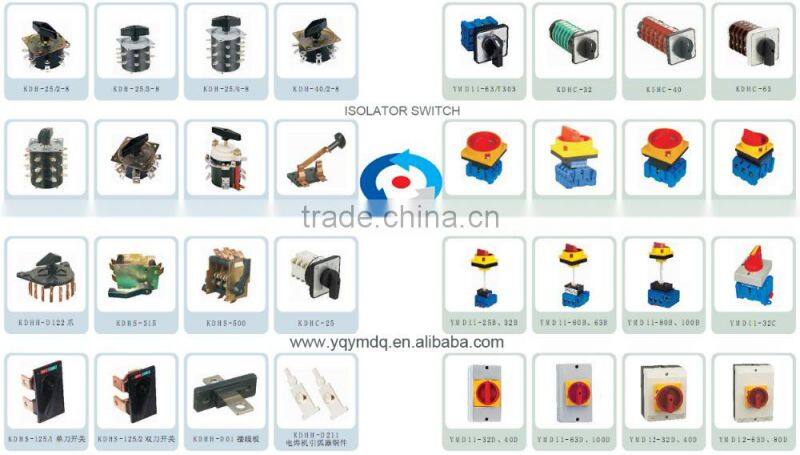

HERE IS THE SERIES OF OTHER ROTARY SWITCHES:
