Specifications
Stone production line1.Customerized design
2.High efficiency & low cost
3.Standard component
4.Factory, welcome to visit
Usage and Application of Stone Production Line

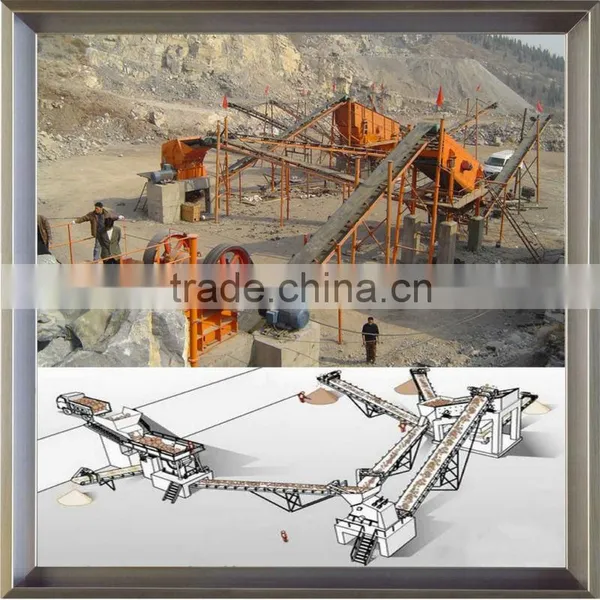

This Stone production line mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
Working Principle of Stone Production Line
Large stone materials from the storage hopper are evenly and continuously fed into jaw crusher through vibrating feeder for primary crushing; the crushed materials are transported to cone crusher or impact crusher for fine crushing through belt conveyor; then the materials are transported to vibrating screen to be separated into different sizes. The end products with desired sizes will be transported to the final product pile and those with big sizes will return to the cone crusher or impact crusher for re-crushing. This forms closed and continuously automatic cycles. The plant can be equipped with dust removing facilities to protect environment according to customers' requests.
Stone Production Line Features
1.High degree of automatic operation; the entire production line requires almost no manual operation except for machine starting and stopping, routine maintenance.
2. High productivity, low investment, and good appreciation.
3. Regular end product granularity, good grain shape, and low powder output.
4. Adopting high advanced control system to ensure security and reliable operation of the entire production line.
Stone Production Line Configurations for Referance
20-30t/h stone production line configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD750×2500 |
1 |
5.5 |
2 |
Jaw crusher |
PE250×400 |
1 |
18.5 |
3 |
Impact crusher |
PF0807 |
1 |
45 |
4 |
Vibrating feeder |
3YK1235 |
1 |
5.5 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) | Power(kw) |
1 |
belt conveyor |
B500×12/m |
1 |
4 |
2 |
belt conveyor |
B500×15/m |
1 |
4 |
3 |
belt conveyor |
B400×16/m |
1 |
4 |
4 |
belt conveyor |
B400×15/m |
3 |
3×3 |
Note: the belt conveyor may have slight changes according to the site situation.
30-50t/h stone production line configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD850×3000 |
1 |
7.5 |
2 |
Jaw crusher |
PE400×600 |
1 |
30 |
3 |
Impact crusher |
PF1008 |
1 |
55 |
4 |
Vibrating feeder |
3YK1235 |
1 |
5.5 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) |
Power(kw) |
1 |
Belt conveyor |
B650×15/m |
1 |
5.5 |
2 |
Belt conveyor |
B650×12/m |
1 |
5.5 |
3 |
Belt conveyor |
B500×16/m |
1 |
4 |
4 |
Belt conveyor |
B500×15/m |
3 |
3×4 |
Note: the belt conveyor may have slight changes according to the site situation.
50-70t/h stone production line configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD850×3000 |
1 |
11-15 |
2 |
Jaw crusher |
PE500×750 |
1 |
55 |
3 |
Impact crusher |
PF1010 |
1 |
75 |
4 |
Vibrating feeder |
3YK1545 |
1 |
15 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) |
Power(kw) |
1 |
Belt conveyor |
650×20m |
1 |
7.5 |
2 |
Belt conveyor |
650×20m |
1 |
7.5 |
3 |
Belt conveyor |
500×20m |
1 |
7.5 |
4 |
Belt conveyor |
500×15m |
3 |
3×4 |
Note: the belt conveyor may have slight changes according to the site situation.
There are more configurations of stone production line, 70-120t/h, 130-180t/h, 160-250t/h and 260-360t/h. Welcome your inqury.
Vibrating feeder
Jaw crusher
Impact crusher
I
Vibrating screen
Belt conveyor
Stone Production Line Price And Manufacturers?
Stone production line in different areas has the different price and the price of different stone production line models is also different.Libo is a professional manufacturer of mining equipment, we have different types of Stone production line machines and the price is very reasonable.There is always a right for you.
Henan Libo Mining Machinery Co.,Ltd. provides complete pre-sales and after sales support both home and abroad for our customers across all products lines through a comprehensive, multilingual technical support service.
Quality:
Henan Libo Mining Machinery Co.,Ltd. enforces the strictest in quality standard products , ensuring the highest level of operation and service from product design and manufacture to customer delivery and after sales services.
Henan Libo Mining Machinery Co.,Ltd is a joint-stock enterprise that produces industrial forming R&D, production and sales into an integral system. Our main products are crushing plans,grinding mill machines,drying equipments and other mining machines.
