Shanghai Changzeng Metal Co., Ltd.: Shanghai, China; Main products: Galvanized Angle, Steel Channel, Rectangular Pipe, Rebar, Flat Steel Plate

Home > Products > Steel Channel > c strut channel/electrical strut channel/uni strut channel/slotted strut channel/u channel steel/c channel steel/c channel

c strut channel/electrical strut channel/uni strut channel/slotted strut channel/u channel steel/c channel steel/c channel

FOB Price

US$ 412 - 450 / Ton

3 Tons(Min. Order)

Port Shanghai Ningbo Shenzhen Tianjin Qingdao Dalian Lianyungang Zhongshan Xiamen OR any Port in China.
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, BS, DIN, GB, JIS	Dimensions	50374.5mm-40010414.5mm
Grade	Q235B, Q345B, SS400, S275JR, S235JR, S355JR, ASTM A53, A573, A283/Gr.D	Place of Origin	Shanghai, China
Brand Name	Masteel, Ansteel, Jinxin Steel	Model Number	CZ-SC01
Shape	U Channel	Application	construction,project,industry..etc.
Perforated Or Not	Not Perforated

Product Description

Product Description

Product	Hot rolled U type steel channel, structural steel u channel with GB JIS standard
Size	50374.5-40010414.5(Check all size we can provide as U channel steel size list shown below)
Thickness	4mm~25mm
Length	6M/9M/10M/12M, OR Cut as your demands
Technique	Cold Drawn/ Cold Pilfered/ Cold Rolled/ Hot Rolled/ Forged
Other processing service	Hot dip Galvanized, Pre-galvanized, Color Painting, Coated, Cutting, Bending, Punching as long as you can tell us your requirement.
Offer Standards	ASTMA53/ASTM A573/ASTM A 283/ASTM A36 BS1387-1985/BS EN10025/BS970 GB/T3091-2001, GB/T13793-92, ISO630/E235B/ JIS G3101/JIS G3136/JIS G3106 DIN17100/DIN1.0038
Materials	We can offer Carbon, Alloy, Stainless steel
	A36
	Q215/Q235/Q235B/Q345/Q345B/
	S235JR/S235/S355JR/S355/ST37-2/ST52-3/
	SS400/SM400A/SM400B/SS490/SM490/SS540
	stainless: 200/300/400 series
	MTC Report or any other requested test can be offered together with shipping document
Packing	1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers
Application	Building structure, building frams and suppourt, industrial frams and suppourt, vehicle manufacturing,grandstands.
Main market	China, Korea, Philippine, Malaysia, Indonesia, Singapore, India, Pakistan, Bangladesh; Ukraine, UAE, Lebanon, Iran, Turkey, Saudi Arabia; USA, New Zealand, Australia, UK, German, Canada, Mexico, Brazil, Argentina; South Africa, Ghana, Nigeria, Kenya, Tanzania, Egypt;
PAYMENT TERMS :	1.100% irrevocable L/C at sight. 2.30% T/T prepaid and the balance against the copy of B/L. 3.30% T/T prepaid and the balance against L/C.
Certificate	ISO, SGS, CE, CQC and third part inspection.
Brand	Jinxi steel ,Ma Steel,Laiwu steel,Rizhao steel,Tang Steel.

Steel Channel Size

European Standard

Type	Size [(h*b)mm]	D (mm)	T (mm)	Weight (kg/m)
UPE80	80*40	4.5	7.4	7.05
UPE100	100*46	4.5	7.6	8.59
UPE120	120*52	4.8	7.8	10.4
UPE140	140*58	4.9	8.1	12.3
UPE160	160*64	5	8.4	14.2
UPE180	180*70	5.1	8.7	16.3
UPE200	200*76	5.2	9	18.4
UPN80	80*45	6	8	8.64
UPN100	100*50	6	8.5	10.6
UPN120	120*55	7	9	13.4
UPN140	140*60	7	10	16
UPN160	160*65	7.5	10.5	18.8
UPN180	180*70	8	11	22
UPN200	200*75	8.5	11.5	25.3

Japanese Standard JIS3192

Type	Size [(h*b)mm]	D (mm)	T (mm)	Weight (kg/m)
JIS50	50*25	3	6	2.37
JIS75a	75*40	3.8	7	5.3
JIS75b	75*40	4	7	5.6
JIS75c	75*40	4.5	7	5.85
JIS75d	75*40	5	7	6.92
JIS100a	100*50	3.8	6	7.3
JIS100b	100*50	4.2	6	8.03
JIS100c	100*50	4.5	7.5	8.97
JIS100d	100*50	5	7.5	9.36
JIS125a	125*65	5.2	6.8	11.66
JIS125b	125*65	5.3	6.8	12.17
JIS125c	125*65	5.5	8	12.91
JIS125d	125*65	6	8	13.4
JIS150a	150*75	5.5	7.3	14.66
JIS150b	150*75	5.7	10	16.71
JIS150c	150*75	6	10	17.9
JIS150d	150*75	6.5	10	18.6
JIS200	200*80	7.5	11	24.6
JIS250	250*90	9	13	34.6
JIS300	300*90	9	13	38.1

Chinese Standard GB707

Type	Height	Width	Thickness	Theoretical weight
5#	50	37	4.5	5.438
6.3#	63	40	4.8	6.634
8#	80	43	5.0	8.045
10#	100	48	5.3	10.007
12#	120	53	5.5	12.059
12.6	126	53	5.5	12.319
14#a	140	58	6.0	14.535
14#b	140	60	8	16.733
16#a	160	63	6.5	17.24
16#b	160	65	8.5	19.752
18#a	180	68	7	20.174
18#b	180	70	9	23
20#a	200	73	7	22.637
20#b	200	75	9	25.777
22#a	220	77	7	24.999
22#b	220	79	9	28.453
25#a	250	78	7	27.41
25#b	250	80	9	31.335
25#c	250	82	11	35.26
28#a	280	82	7.5	31.427
28#b	280	84	9.5	35.832
28#c	280	86	11	40.219
30#a	300	85	7.5	34.463
30#b	300	87	9.5	39.173
30#c	300	89	11.5	43.883
32#a	320	88	8	38.083
32#b	320	90	10	43.107
32#c	320	92	12	48.131
36#a	360	96	9	47.814
36#b	360	98	11	53.466
36#c	360	100	13	59.118
40#a	400	100	10	58.928
40#b	400	102	12.5	65.208
40#c	400	104	14.5	71.488

Products Show

Size&Customize	Any size we accept,follow your size and grade manufacture it (large quantity)OEM welcomed.
MOQ(small Qty accept)	1-5-10-50-100-200-500-1000-2000-3000 tons depend on different size,itme,material grade and technique.MIN and small quantity accept
Price(competitive price)	We have copperative factory,ensure lowest price and good quality and best service for you, we best service 24 hour online.
Production line	sample : stock goods only within 2 days send out samples for you. other process sample time:2-7days,mass good time:7-15days , biggest order depend quantity
Warm tips	More details,our advantage,package ways,compatitive price etc pls check next details and contact us(Phone&whatsapp:+8613651652591 Tel:+86-21-66873700802 Skype:Chelsea Shao )It's our honor to service for you always.

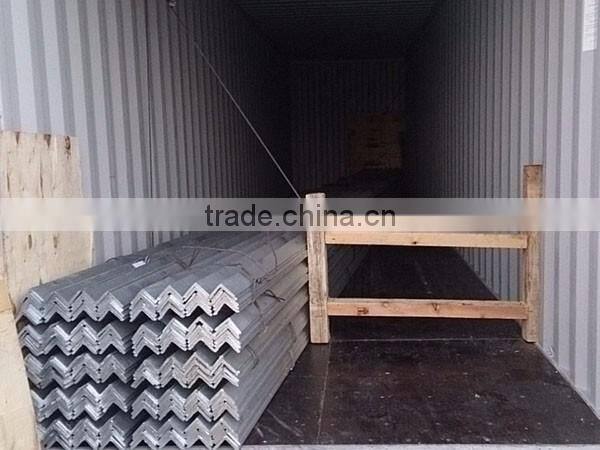

Packing & Delivery

Packing	1.By steel strips in bundles
	2.By woven cloth with 7 slats
	3.By woodenn pallet
	4.Accorging to the requirements of customers
Delivery	By sea	1.In bulk ( based on 200tons)
		2.20ft container: 25tons (Length limted 5.8m MAX)
		3.40ft container:(Length limted 11.8m MAX)
	By air	UPS/DHL/FEDEX
	By truck	As customer requests

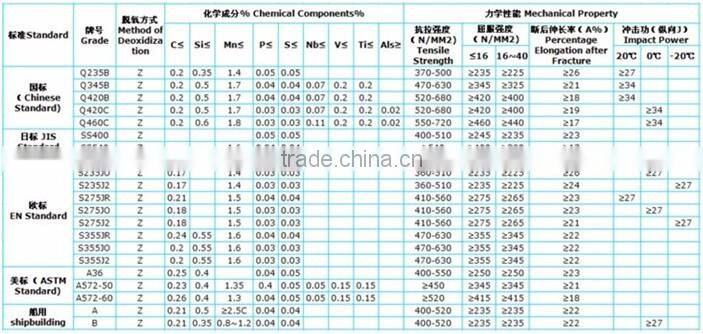

Steel Grades

Standard Equivalent
China GB/T,YB	America ASTM	Japan JIS	Germany DIN EN	England BS EN	France NF EN	ISO	Korea KS	India IS
Q195	Grade B	SS330 SPHC	S185(1.0035)			E185 Fe(310)		D
Q215	Grade C CS Type B						SS330 (SS34)	Fe-330
Q235-A	Grade D	SS400	S235JR (1.0038)			E235 A E235 B E235 C E235 D	SS400 (SS41)
Q235-B			S235J0(1.0114)					Fe-410
Q235-C			S235J2(1.0117)
Q235-D			S235JR(1.0038)
Q275	SS Grade 40 (275 )	SS490	S275JR(1.0044) S275J0(1.0143) S275J2(1.0145)			E275 (Fe430)	SS490	Fe-490
Q345-A	Grade 50 (345)	SPFC590	E355(1.0060)			E355
Q345-B			S355JR(1.0045)
Q345-C			S355J0(1.0553)
Q345-D			S355J2(1.0577)
Q345-E			S355NL(1.0546)

Our Advantage & Why Choose Us?

1.We ,can supply a wide range of steel products(any size,any quantity,anytime)

1)The packers skilled more 10years experience

2)We have strong after sale service team best service for you

3)We accept min order and interational standard with sample and batch for your many choose get client and market.

2.Low MOQ:small quantity we accept it,it can meet your business very well,EG: 1ton,3.tons,5tons,10tons,20tons different quantity for your choose.We believe that our price and quanlity will be give you an edge over your competitors.And you will be winner in this business in your country.

3.Low Prices:We try our best to make sure our prices are the most compatitive anywhere.We can get you a better deal almost every time.We are proud to help ou save money on the products you want.

4.Good Quality and we passed CE certification

5. Fast Delivery&Cheap shiping cost and best service team

1)We have larger standard size steel materials.When you choose item and and the size,we can delivery very fast only three days.

2)We have ourself forwrder and we have big discount from forwarder(long contract).We have big warehouse for your order.

3)We have professional sales team for you service 24 hour online.Also more than 9 years export experience all over the world.

Customer Visit Our Company

FAQ

Q1. Are you trading company or manufacturer ?
A: We are processing factory. our factory locates in Songjiang Steel City. if you would like to visit our factory, just inform us in advance, we will pick you up at the airport. we warmly welcome all of our clients to visit us.

Q2: How long is your delivery time?
A: Generally, it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply free samples if we have ready parts in stock, but the courier cost are charged.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit .
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter
where they come from.

Q9: what is your main products?
A: our main products is hot rolled carbon steel, including angle steel, H beam, I beam, channel steel, rebar, square pipe, round pipe, steel plate/coil. we can also have them galvanized.

Check below for more information on placing an order:

1. Inquiry-Professional quotation.

2. Confirm the price,size,grade,length, lead time, technique, payment term etc.

3.our sales send the Proforma Invoice with our seal.

4. Customer make the payment for deposit and send us Bank receipt

5. Initial Production Stage-Inform the clients that we have got the payment,And will make arrange the production & inform the estimated time

6. Middle Production-send photos to show the production line which you can see your products in.Confirm the estimated delivery time again.

7. End Production-Mass production or stocks,products photos will send to you for approval. You can also arrange the third party Inspection .

8. Clients make payment for deposit and Ship the goods , Inform the tracking number and check the status for clients.

9. Order can be say “finish” when you receive the goods and satisfy with them, pay the balance too.

10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better .

Phone:+8613651652591 Tel:+86-21-66873711802 transfer chelsea

Pls feel free to contact us anytime,it's our honor to service for you.We are together.
