1,This equipment is mainly suitable for paint drying after UV coating of panel-type furniture,cabinet plates,flooring,metal plates and bamboo and wood blinds.
2,This machine uses imported high mercury UV light tubes with adjustable lighting intensity,and meanwhile,it is equipped with high strength capacity and transformers,which has greatly increased the stability of UV light tubes.

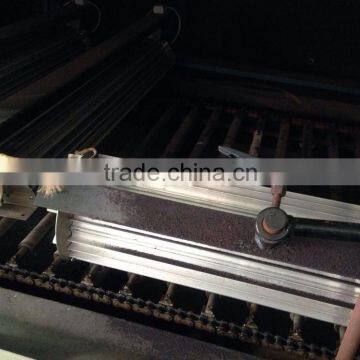

3,The conveyor belts adopt stainless steel conveying network equipped with cooling system.And the inside temperature is controlled by the temperature control instrument.
4,It can dry products in a very short time,which greatly reduce the time of coating process;
5,The hardness of the surface of the coated products is improved.And the surface has bright colors.
| Model | TS-760# | TS-1100# | TS-1420# |
| Working width | 650MM | 1000MM | 1320MM |
| Feeding speed | 0-30M/MIN | 0-30M/MIN | 0-30M/MIN |
| Feeding power | 0.75KW | 0.75KW | 0.75KW |
| Tube power | 5KW*2-3 | 5KW*2-3 | 9.6KW*2-3 |
| Fan power | 0.75KW*2-3 | 0.75KW*2-3 | 9.6KW*2-3 |
| Paint type | UV | UV | UV |
| Electric supply | 380V50HZ | 380V50HZ | 380V50HZ |
| Machine dimension | 3000*1060*1860 | 3000*1360*1860 | 3000*1960*1860 |
| Machine weight | 500KG-700KG | 600KG-900KG | 700KG-1100KG |
