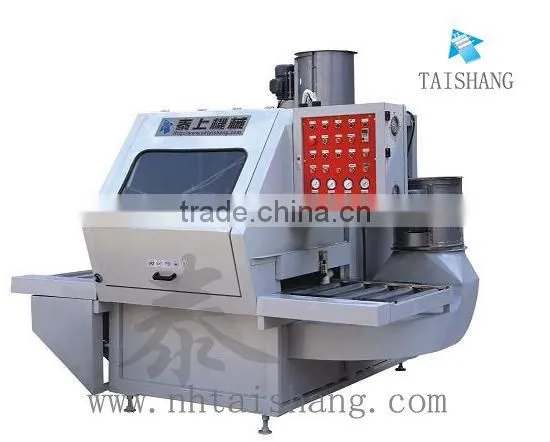

Automatic Spraying Machine for Door Brackt
US$ 200 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TISAN
Model Number:
400#,600#,13203
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Arc Spraying Machine of TaishangUS$ 200 - 10,000MOQ: 1 Set -
Spraying Machine of Painting Machine for WoodUS$ 200 - 10,000MOQ: 1 Set
-
Woodworking of Automatic Spraying Machine for Play BaseUS$ 200 - 10,000MOQ: 1 Set
-
Spraying Machine for Real Wood Play a Base LineUS$ 200 - 10,000MOQ: 1 Set
-
Automatic Spraying Machine for Pvc Play a Base LineUS$ 200 - 10,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
TISAN
Model Number
400#,600#,13203
Voltage
380V/220V
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Type
Other, spraying machine
Specifications
This equipment is mainly used for five-side coating at one time in flat ,curve or arc surface.1,This equipment is mainly used for five-side coating at one time in flat,curve or arc surface.
2,The equipment is equipped with 4 to 8 automatic spray guns imported from lwata of Japan with good atomization.
3,The paint amount ,height and angle of the automatic spray gun can be pre-adjusted and every gun is controlled independently.
4,The paint supply system is controlled by a high power pump to provide stable flow of paint and part of the paint can be recycled;
5,The conveying is controlled by a frequency speed controk with a range of 0-30meters per minutes;
6,It is also equipped with one water washing device that can extract excessive atomized paint and clean the production environment.
| Model | TS-400# | TS-600# | TS-1320# |
| Working width | 400MM | 600MM | 1320MM |
| Feeding speed | 0-30M/MIN | 0-30M/MIN | 0-30M/MIN |
| Feeding power | 0.75KW | 0.75KW | 1.5KW |
| Fan power | 1.5KW | 1.5KW | 3KW |
| Water pump power | 0.75KW | 1.5KW | 4KW |
| Lance caliber | 0.8-1.5MM | 0.8-1.5MM | 0.8-1.5MM |
| Paint type | UV/PU/NC/PE | UV/PU/NC/PE | UV/PU/NC/PE |
| Paint dosage | 40-120G/M2 | 40-120G/M2 | 40-120G/M2 |
| Paint container capacity | 40L | 40L | 40L |
| Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Electric supply | 380V50HZ | 380V50HZ | 380V50HZ |
| Machine weight | 1.2T | 1.5T | 2.3T |
