Help CenterUV Printing Machine
US$ 200 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Screen Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Plate Type
Screen Printer
Place of Origin
Guangdong, China
Brand Name
TISAN
Model Number
TS760#,TS1100#,TS1420#
Usage
Other, printing different kinds of patterns
Automatic Grade
Automatic
Voltage
220V/380V
Gross Power
0.75KW*3
Dimensions(L*W*H)
3800*1620*1500,3800*1960*1500,3800*2280*1500
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Fast speed,high precision,good synchronism2.Easy to contol,enviromental protection
3.High quality and durable in use

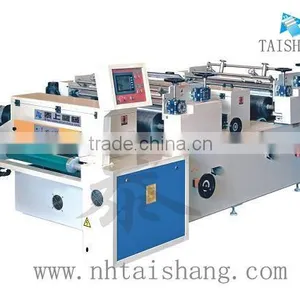

1,This machine adopts chromatic printing with servomotor that the printing is precise.The operation panel is man-machine interface with touch screen and PLC programming.
2,The printing machine adopts the electric intaglio printing principle that it can directly print the pattern on the work piece or through printing rubber roller.
3,It can print patterns on the surface of flat plates,metal plates and PVC etc.It is mainly used in wood and plastic-wood products.
4,The pattern can be printed according to the drawing provided by the customers with a similarity 98.8%.
5,The servomotor controls the speed that it has quick response,high precision and good sychronism.
| Model | TS-760# | TS-1100# | TS-1420# |
| Frontage working width | 650MM | 1000MM | 1320MM |
| Working height | 2-80MM | 2-80MM | 2-80MM |
| Feeding speed | 0-30M/MIN | 0-30M/MIN | 0-30M/MIN |
| Servo power | 1.0KW | 1.5KW | 1.5KW |
| Paint thickness | 0.003-0.2MM | 0.003-0.2MM | 0.003-0.2MM |
| Paint container capacity | 20L | 20L | 20L |
| Air pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Electric supply | 220V/380V50HZ | 220V/380V50HZ | 220V/380V50HZ |
| Machine dimension | 3800*1620*1500 | 3800*1960*1500 | 3800*2280*1500 |
| Machine weight | 2.6T | 2.9T | 3.2T |
