Help CenterBrush Machine
Related Products
|
Parameter
Model |
Working width |
Working height |
Feeding speed |
Machine dimension |
Board thickness |

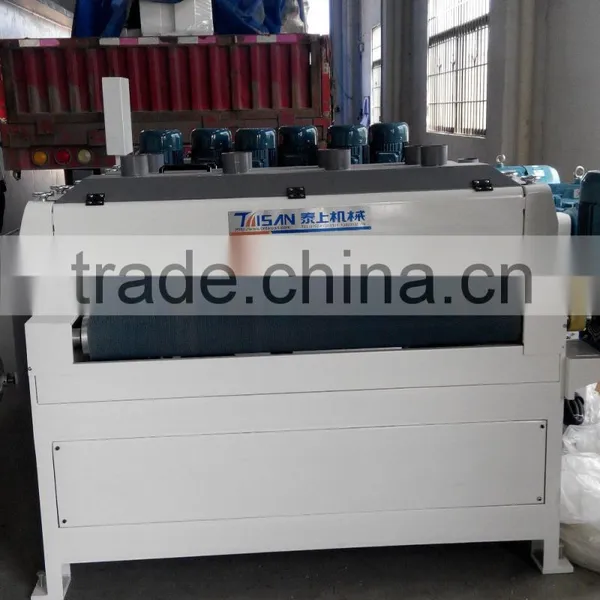

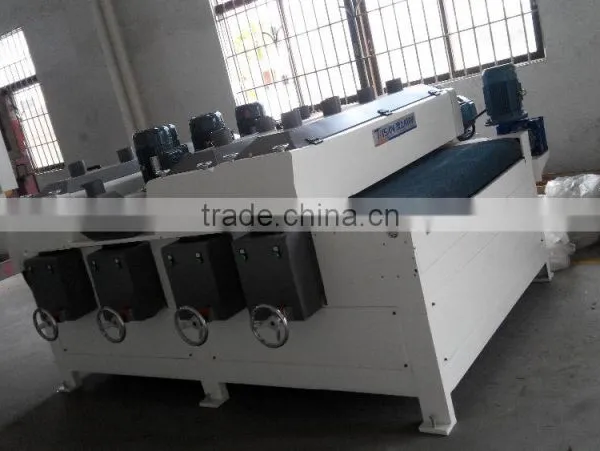

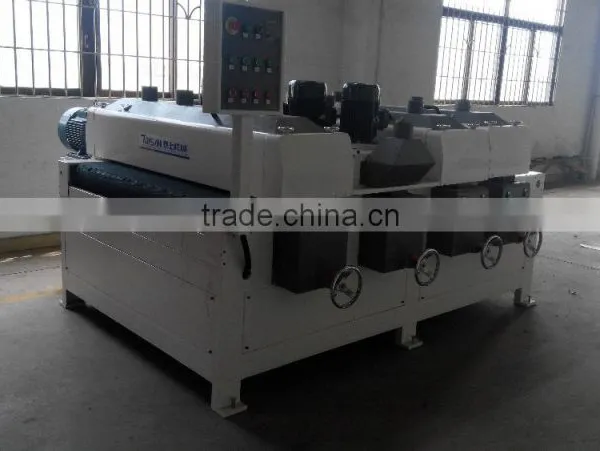

Brush sanding machine (6head) |
1300MM |
3-120MM |
8-20M/MIN |
3800*2800 *1400 |
3-120MM |
|
Parameter
Model |
Total power |
Machine dimension |
Voltage |
Processing time |
Weight |
Brush sanding machine (6head) |
58.7KW |
3700*2800*1400 |
AC440V 50/60HZ
|
6-12second |
3.5T |
l 1 head: Using 200 Steel wire diameter Φ0.4mm/Be non motor power:7.5KW
l 2-3 head:Using 200 wire wheel brush diameter Φ0.35mm/Be non motor power :2.2KW*6
l 4 head:Using 200 Steel wire diameter Φ0.3mm/Be non motor power:7.5KW
l 5 head:Using 200 Grind wire diameter Φ1.2mm/Be non motor power :5.5KW
l 6 head:Using 200 Grind wire diameter Φ1.0mm/Be non motor power :5.5KW
l Convey:Using Be non motor 3KW
l Lifting:Using button to lift.lifting Motor:0.55KW
l Attention:Please don’t adjust the height too low.To avoid the belt damage.
