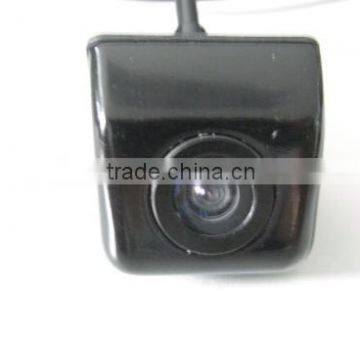

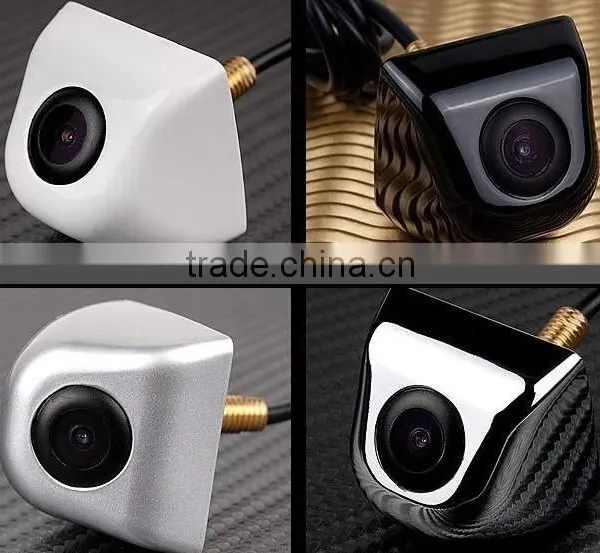

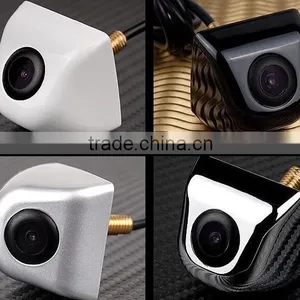

Help CenterCar Kit,170 Degree Car Rear View Camera, Annual Hot Seller 480 TVlines Car Reverse Camera,car Rear View System
Related Products
-
Best Sell Waterproof, hd Car Camera,Wholesale Car Rear View ,US$ 6.99 - 8.26MOQ: 1 Set -
170 Degree Universal Rear View Camera ,Waterproof Car Rear ViewUS$ 4.35 - 5.56MOQ: 1 Set
-
High Quality Wide-angle Lens,high-definition,waterproof Car Rear View Camera,Little Butterfly Car CameraUS$ 3.85 - 4.85MOQ: 1 Set
-
Factort Waterproof Car Rear View Camera,cheapest Car Camera,car Kit,car Reverse Car CameraUS$ 3.85 - 4.88MOQ: 1 Set
-
360 Degree Rear View Car Camera,High Quality Car Rear View Camera /High Resolution Car CameraUS$ 5.20 - 6.15MOQ: 10 Sets
*Waterproof, can be used in and out side car
* 170°wide viewing angle
* Driver Assistance Application in backup and parking
* Low power consumption
* Compact design and easy to install

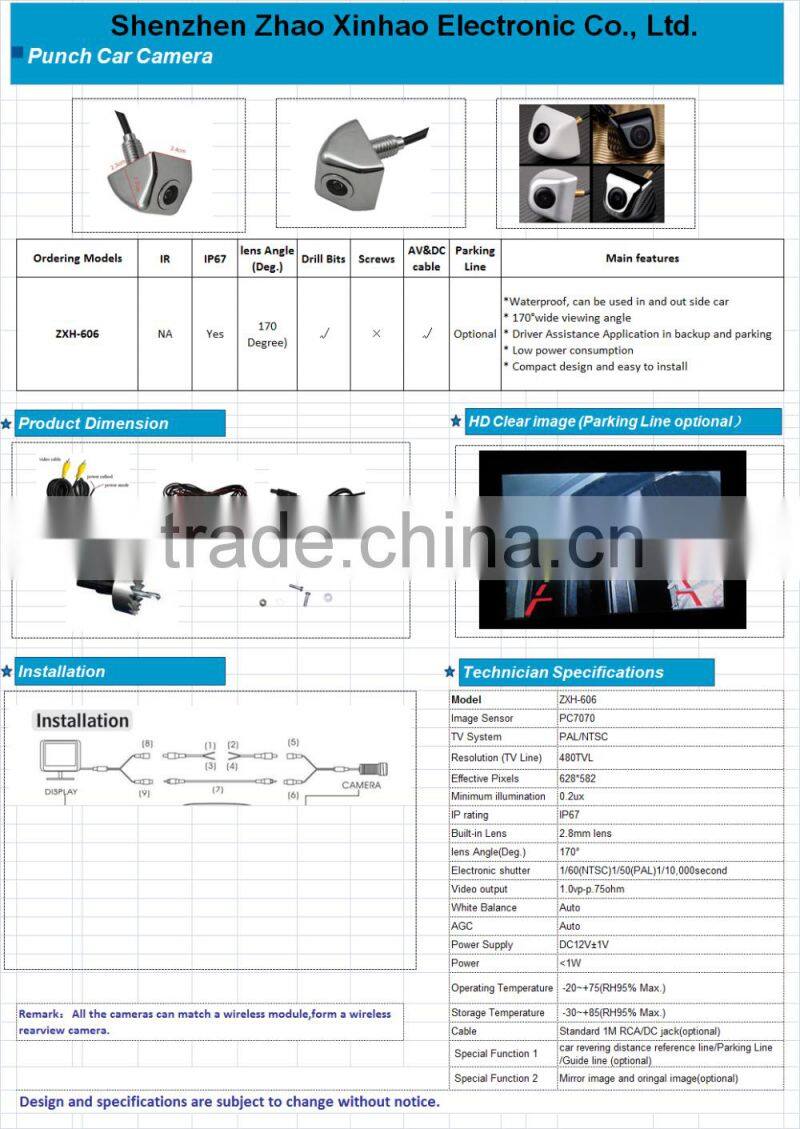

| Model | ZXH-606 | ||||
| Image Sensor | PC7070 | ||||
| TV System | PAL/NTSC | ||||
| Resolution (TV Line) | 480TVL | ||||
| Effective Pixels | 628*582 | ||||
| Minimum illumination | 0.2ux | ||||
| IP rating | IP67 | ||||
| Built-in Lens | 2.8mm lens | ||||
| lens Angle(Deg.) | 170° | ||||
| Electronic shutter | 1/60(NTSC)1/50(PAL)1/10,000second | ||||
| Video output | 1.0vp-p.75ohm | ||||
| White Balance | Auto | ||||
| AGC | Auto | ||||
| Power Supply | DC12V±1V | ||||
| Power | <1W | ||||
| Operating Temperature | -20~+75(RH95% Max.) | ||||
| Storage Temperature | -30~+85(RH95% Max.) | ||||
| Cable | Standard 1M RCA/DC jack(optional) | ||||
| Special Function 1 | car revering distance reference line/Parking Line /Guide line (optional) | ||||
| Special Function 2 | Mirror image and oringal image(optional) |
A Does the camera is waterproof?
Yes, all the cameras have passed the waterproof testing when produced. The standard IP rating can reach 67 or 68.
B How do I connect the car camera to the cars electrical system?
Each camera is connected to the cars cigarette lighter socket, or hardwired. This means that as the ignition is switched on, the camera comes on and starts recording. The camera itself is fixed to the windscreen using a suction mount or a bracket stuck firmly in place with a sticky pad. Car cameras can be removed and re-fitted as required - for example you may not want to leave it on show whilst parked.
C Can the camera work together with DVD player?
At present, our camera connectors include RCA, Mini Jack, Mini Din, S-video, Pin cable, and OEM wiring. Before installation, pls check connector of DVD player whether compatible with camera.
D Shall the camera work normally at night ?
Yes, all the cameras can work normally at night with the help of car lights and streetlights, etc. Some models with IR light.
