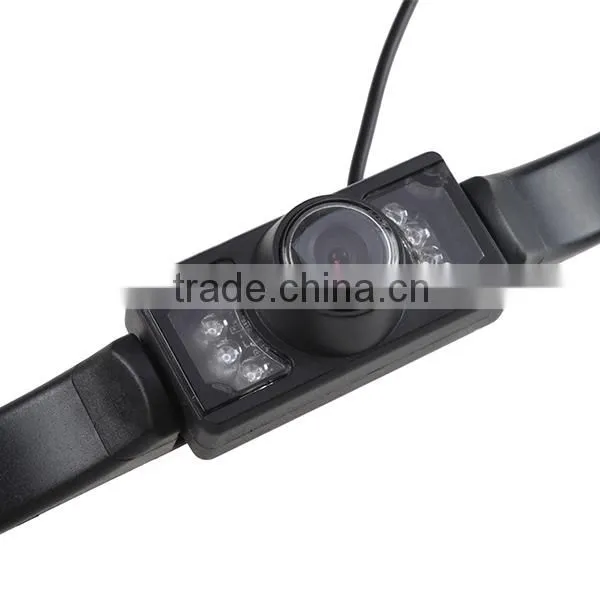

2016 The Most Beautiful High DefinitionCar Rear View System,night Vision Car Camera
US$ 5.20 - 6.20
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Reverse Camera
Voltage:
DC 12V
Power:
12V DC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Car Rear View System. Night Vision Car Camera.waterproof Reversing Camera,car Rear View SystemNegotiableMOQ: 1 -
Hot Sale Universal Waterproof America Version Car Camera,usa Car Camera, License Plate Frame Camera,car Reverse SystemUS$ 0.50 - 0.50MOQ: 1 Set
-
Waterproof,LED Night Vision ,Hot Seflling High Quality Car Rear View CameraUS$ 6.85 - 8.20MOQ: 1 Set
-
Factory Price ,high Definition Nightvision Car Rear View Camera,waterproof Car Camera,night Vision Car CameraUS$ 6.99 - 7.98MOQ: 1 Set
-
Reasonable Price,170 Degree Night Vision, Car Camera,waterproof Car Rear View SystemUS$ 6.99 - 8.20MOQ: 1 Set
Type
Reverse Camera
Voltage
DC 12V
Power
12V DC
Car Make
Universal
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
ZXH-4031
Warranty
1 Years

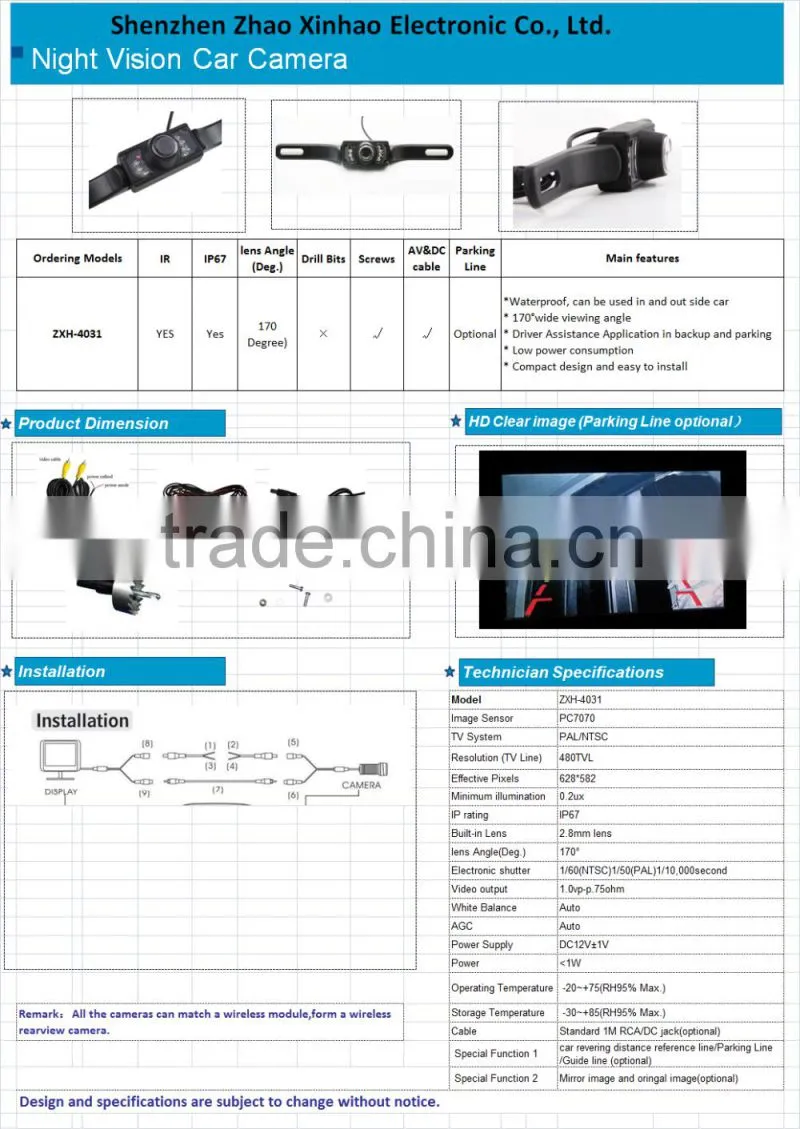

Product Description
| Ordering Models | IR | IP67 | lens Angle (Deg.) |
Drill Bits | Screws | AV&DC cable | Parking Line | Main features | ||||||
| ZXH-4031 | YES | Yes | 170 Degree) | × | √ | √ | Optional | *Waterproof, can be used in and out side car * 170°wide viewing angle * Driver Assistance Application in backup and parking * Low power consumption * Compact design and easy to install |
||||||
| Model | ZXH-4031 | ||||
| Image Sensor | PC7070 | ||||
| TV System | PAL/NTSC | ||||
| Resolution (TV Line) | 480TVL | ||||
| Effective Pixels | 628*582 | ||||
| Minimum illumination | 0.2ux | ||||
| IP rating | IP67 | ||||
| Built-in Lens | 2.8mm lens | ||||
| lens Angle(Deg.) | 170° | ||||
| Electronic shutter | 1/60(NTSC)1/50(PAL)1/10,000second | ||||
| Video output | 1.0vp-p.75ohm | ||||
| White Balance | Auto | ||||
| AGC | Auto | ||||
| Power Supply | DC12V±1V | ||||
| Power | <1W | ||||
| Operating Temperature | -20~+75(RH95% Max.) | ||||
| Storage Temperature | -30~+85(RH95% Max.) | ||||

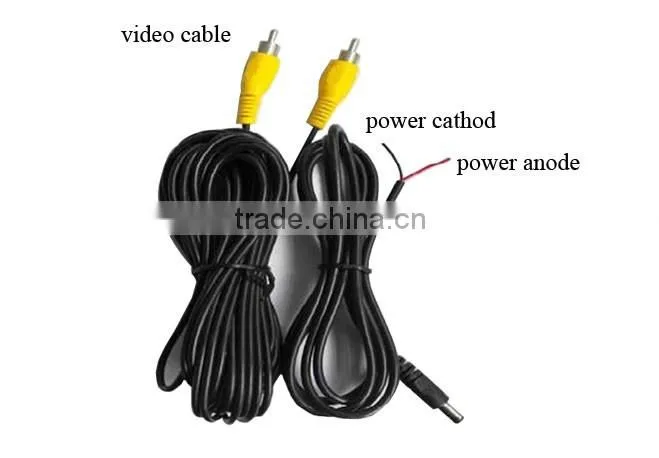

| Cable | Standard 1M RCA/DC jack(optional) | ||||
| Special Function 1 | car revering distance reference line/Parking Line /Guide line (optional) | ||||
| Special Function 2 | Mirror image and oringal image(optional) |
FAQ
A Does the camera is waterproof?
Yes, all the cameras have passed the waterproof testing when produced. The standard IP rating can reach 67 or 68.
B How do I connect the car camera to the cars electrical system?
Each camera is connected to the cars cigarette lighter socket, or hardwired. This means that as the ignition is switched on, the camera comes on and starts recording. The camera itself is fixed to the windscreen using a suction mount or a bracket stuck firmly in place with a sticky pad. Car cameras can be removed and re-fitted as required - for example you may not want to leave it on show whilst parked.
C Can the camera work together with DVD player?
At present, our camera connectors include RCA, Mini Jack, Mini Din, S-video, Pin cable, and OEM wiring. Before installation, pls check connector of DVD player whether compatible with camera.
D Shall the camera work normally at night ?
Yes, all the cameras can work normally at night with the help of car lights and streetlights, etc. Some models with IR light.
Company Information
As a OEM/ODM factroy,We have a strong R&D team this is our company
Skype: szzhaoxinhao
![]()
https://img13.fr-trading.com/
Products Range:
Car Camera II Car Monitor II Parking Sensor II 2.4G Wireless II DVR
Skype: szzhaoxinhao
Products Range:
Car Camera II Car Monitor II Parking Sensor II 2.4G Wireless II DVR

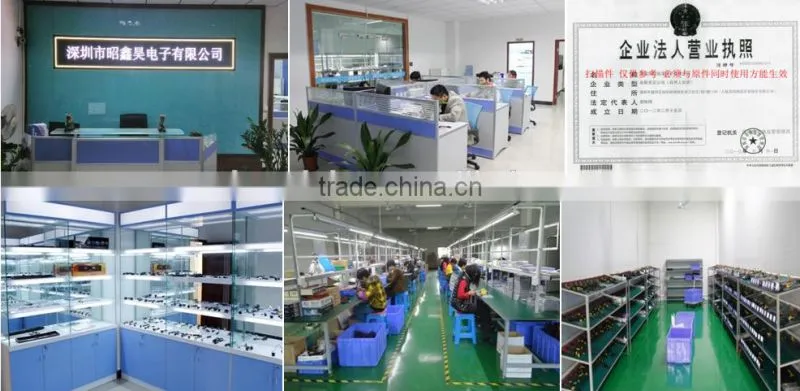

Shenzhen Zhao Xinhao Electronic Co., Ltd. is a large-scale manufacturer integrating R&D, design, production, sales and service. As a professional manufacture and solutions provider in the security and surveillance field, zhaoxinhao offers a comprehensive security product range of Vehicle Real View Systems (Car Camera, Car Monitor, 2.4G Wireless, DVR etc.). These products are exported widely for above 100 countries.
We have a strong R&D team which is professional and experienced in the field of digital circuits, communication and software. Since our establishment, we have had technical cooperation with labs and colleges from many countries and regions, such as America, Japan, Taiwan Area, Korea and Russia, and successfully developed a series of new products. Our products include car rear view systems, TFT LCD monitors, car electronics, car DVD players, backing indicator radars and car TV.
We support OEM & ODM service, with above 5 years experience, we have got many customers praise and good feedbacks, about the details of OEM & ODM, welcome to view the page of "Support---Service Gurantee".
We pay more attention to product research and innovation. We have got some patents. Each product will be recommended to the market step by step after strict test over and again. Our principle is "order is not in quantity, but in quality, profit is made by a good reputation". We sincerely welcome your cooperation for mutual benefits under our own brands. OEM order is welcome.
We have a strong R&D team which is professional and experienced in the field of digital circuits, communication and software. Since our establishment, we have had technical cooperation with labs and colleges from many countries and regions, such as America, Japan, Taiwan Area, Korea and Russia, and successfully developed a series of new products. Our products include car rear view systems, TFT LCD monitors, car electronics, car DVD players, backing indicator radars and car TV.
We support OEM & ODM service, with above 5 years experience, we have got many customers praise and good feedbacks, about the details of OEM & ODM, welcome to view the page of "Support---Service Gurantee".
We pay more attention to product research and innovation. We have got some patents. Each product will be recommended to the market step by step after strict test over and again. Our principle is "order is not in quantity, but in quality, profit is made by a good reputation". We sincerely welcome your cooperation for mutual benefits under our own brands. OEM order is welcome.
