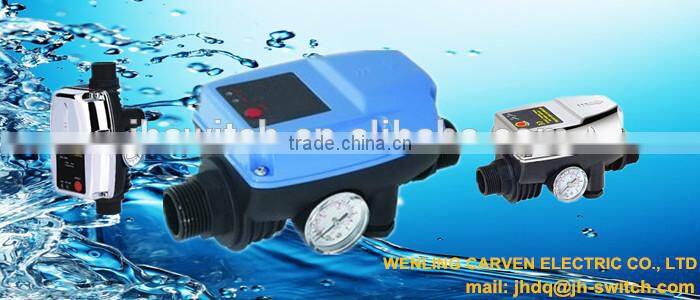

Pressure Switch JH-5A
Description:
| Rated Voltage: | 110V–240V |
| Frequency: | 50/60Hz |
| Max. Current: | 10A |
| Max. Power: | 1.1KW; 1.5KW |
| Starting Pressure: | 0.8-2.8bar |
| Max. Pressure: | 10bar |
| Joint Screw: | R1" |
| Protection Grade: | IP65 |
| Max. Operating Temperature: | 60 |
| Cable Specifications: | 7.5-9mm |
Function:
1. Stop the pump automatically when water shortage.
2. Automatic pressure switch used for drinking water or non-potable water
piping systems.
3. Replace the traditional system which assembled with pressure switch,
pressure tank and check valves.
Optional:
| Color: | blue; red; yellow;black |
| Starting pressure: | 0.8-2.8bar |
| Max. Power: | 1.1KW; 1.5KW |
| Cable Specifications: | 7.5-9mm |
FAQ: |
|
Problem |
Possible Causes |
Solution |
the pump switches on and off continuously |
Leaks in the system. |
Check all hydraulic connections. |
Dry stop even if there is water in the suction pipe. |
Operating pressure too high. |
turn screw anticlockwise (–←) direction. press the "RESET" button and make sure the red light is off when the pump stops. |
The pump do not start again. |
1. Mains voltage failure. 2. The drop between the controller and one of the tap is too great. 3. The pump is out of order. 4. Controller is malfunctioning. |
1. Check the electrical connections. 2. Turn screw in clockwise (→+) to increase the operating pressure. 3. Consult an electrician. 4. Consult your dealer. |
The pump does not stop. |
1. There are big leaks in the system. 2. Controller is malfunctioning. |
1. Check the system. 2. Consult your dealer. |
