Specifications
1.20L 2000psi high pressure oxygen compressor high pressure gas compressor2.Absolute dry, clean Oil-free
3.OEM service

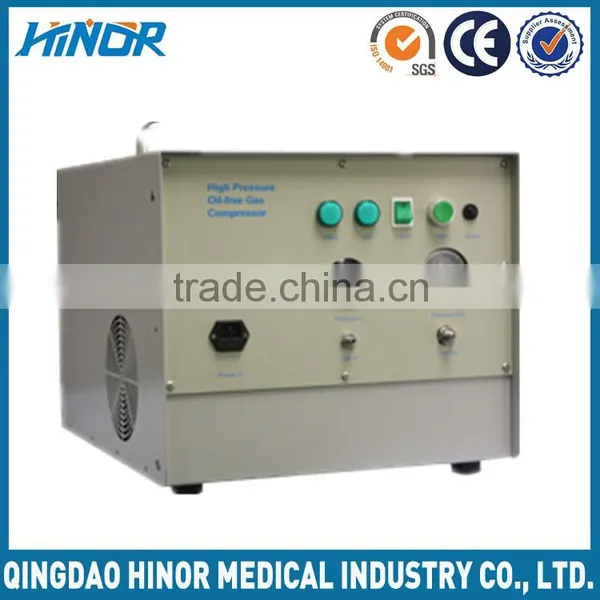

20L 2000psi high pressure oxygen compressor high pressure gas compressor
Skype:hinormedical
Developed through several years, the Rocking Cylinder compression technology is a breakthrough in the field of gas compression technology. It easily achieves high-pressure and high-speed compression.Our engineers are researching and working around the clock to achieve higher pressure and faster compressors to serve every needs for gas compression and storage.
High Pressure Oil-free compressor is designed for filling non-hazardous gases such as oxygen, nitrogen, air, argon etc. into cylinder for specific applications such as gas storage backup and gas replenishment through cylinder re-filling.
When coupled the compressor with a PSA oxygen concentrator, an oxygen fill system is formed. This system is especially suitable for EMS oxygen support for disaster rescue and health care support for underground or highland area with low oxygen concentration. It can also be used for oxygen storage support for Centralized Oxygen Supply System.
1.Absolute dry, clean and Oil-free.
2.High Compression Ratio. Service pressure is up to 138 Bar(2000 psi/13.8MPa)
3.Fast Filling. The fastest filling time of a M265 Cylinder is around 10 hours.
4.Small and light weight, easy and safe to operate.
5.Simple, reliable and easy maintenance.
6.Energy Saving: Low power consumption.
7.Cost-Effective.
Model No. |
HGC-20L |
Electrical Requirment |
230V-AC, 50Hz or 115V-AC, 60Hz |
Power Consumption |
800W average |
Inlet Pressure |
6-20PSI (0.04-0.14MPa) |
Max Discharge Pressure |
2000PSI (13.8MPa) |
Flow Rate |
15-20LPM |
Machine Dimensions |
38cm W x 62cm D x 63cm H |
Net Weight |
68.5kg |
Filling Time For Different Size Cylinders
Cylinder model |
Cylinder Capacity |
Oxygen Capacity |
Flow rate |
Suction piressure |
Max discharge pressure |
Filling time |
||
Liter |
Liter |
LPM |
PSI |
Mpa |
PSI |
Mpa |
||
M004 |
0.7 |
98 |
20 |
15 |
0.1 |
2000 |
13.8 |
5Min |
M006 |
1.0 |
140 |
20 |
15 |
0.1 |
2000 |
13.8 |
7Min |
M009 |
1.7 |
238 |
20 |
15 |
0.1 |
2000 |
13.8 |
12Min |
M265 |
40 |
6800 |
20 |
15 |
0.1 |
2000 |
13.8 |
<6Hr |
Yes, we offer OEM service

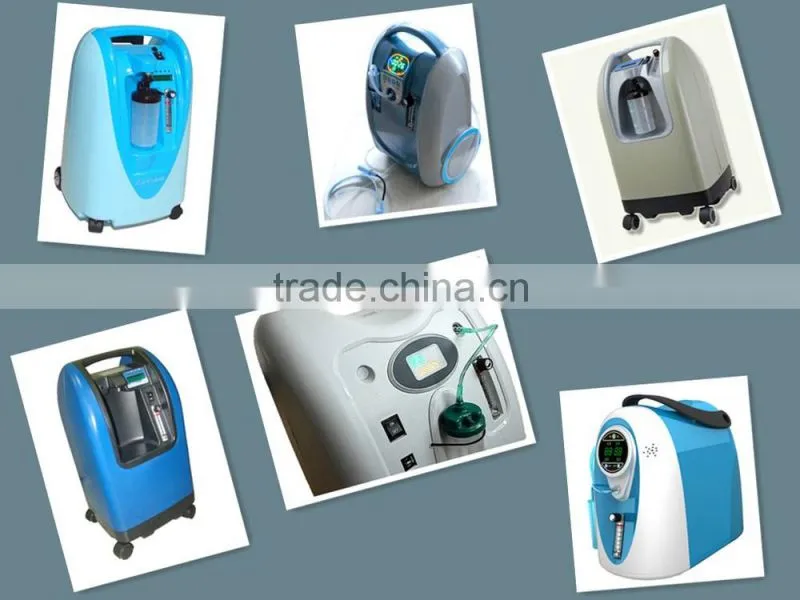

We also have 1L 3L 5L 6L 8L 10L 12L oxygen concentrators, nebulizer and suction unit
