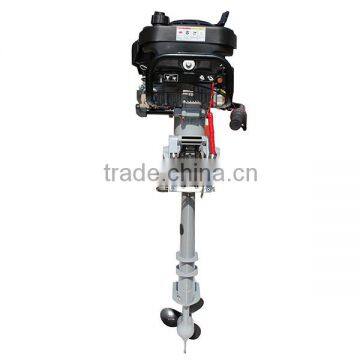

New Outboard Engine for River
This machine has the characteristic of advanced design, compact structure, lightweight, reliable performance, and portability and convenient for operation and maintenance. It is widely suitable for fishery, aquaculture and transportation industry in the lakes, rivers and nearby seas.
Specifications
| Item | Specifications | |
| Engine | Engine Type | 170FLDXW, |
| Stroke | Single-cylinder, Four-stroke, Air-cooled, Vertical axis | |
| Cylinder bore x stroke(mm) | 70×45 | |
| Displacement(cm3) | 173 | |
| Maxi output power/speed(kW/r/min) | 3.8/4000 | |
| Maxi torque/speed(N.m/r/min) | 10/3000 | |
| Mini idle stabilized speed(r/min) | 1700±150 | |
| Oil consumption rate/speed(g/kW.h/r/min) | ≤395/3600 | |
| Room starting properties(s) | ≤30 | |
| Carburetor | Float | |
| Spark plug | F6RTC | |
| Spark plug clearance(mm) | 0.7~0.8 | |
| Ignition method | TCI | |
| Start way | Recoil start | |
| Starting & enriching way | Manual choke | |
| Valve clearance(cool)(mm) | Intake/exhaust 0.05~0.10 | |
| Net weight(kg) | 15 | |
| Unit | Rated power/speed(kW/r/min) | 2.5/1780 |
| Full-throttle no-load speed(r/min) | 1850±50 | |
| External dimension(mm) | 610×385×1180 | |
| Net weight(kg) | 25 | |
| Hanging height(mm) | 631 | |
| Vertical height of stern plate(mm) | 502~527 | |
| Steering way | Steering handle | |
| Gear position | Forward gears- neutral - reverse Gear | |
| Gear drive ratio | 2.08(27/13) | |
| Cooling way | Forced air-cooling | |
| Exhausting& silencing way | Muffler, direct exhausting outside the engine | |
| Lifting way | Manual lifting way | |
| Propeller dimension | 3-7 1/2"×7" | |
| Fuel | 93# Unleaded gasoline (use of 97# gasoline prohibited) | |
| Oil tank volume(L) | 2.2 | |
| Engine oil | Four-stroke engine oil(SAE 15W-40) | |
| Lubrication | Splash lubrication | |
| Maximum Fuel Consumption (kg/h) | 1.4 | |
| Engine lubricating oil volume(L) | 0.6 | |
| Gear oil | Hypoid gear oil (SAE#90) | |
| Gear oil volume(L) | 0.1 | |
| Grease | General-purpose lithium base grease(GB7324-1994) | |
Features
Our four-stroke engine is tougher, smaller and lighter. With a combination of performance and efficiency that will take your time on the water to a whole new level.
1.Four-stroke engine outboard with thermodynamic systems, low fuel consumption.
2.Protective streamline design, safe and beautiful.
3.Lighting system, a convenience for riding at night.
4.Anti-corrosive protection, a better choice for sailing on the sea.
5.Gear protective device, providing protection for shifting gears.
Spare Parts
Propeller
Other Parts
Applications

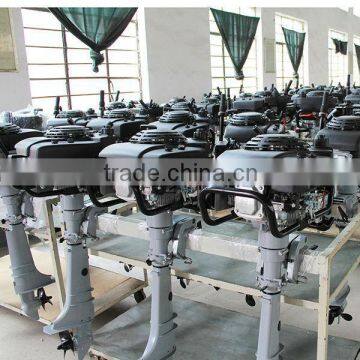

Finished Products
Package
Carton Package
Types of Transportation
