Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 7400 High Speed 300mhz Four Ports EOC Slave Modem
7400 High Speed 300mhz Four Ports EOC Slave Modem
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Fiberhome
Model Number:
F-ENGINE OL100/OL200
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan shanghai shenzhen guangzhou dalian qingdao ningbo HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier 4 Ports 100M Managed Media ConverterNegotiableMOQ: 1 Unit -
8 Port Signal dc to ac Optical ConverterNegotiableMOQ: 1 Unit
-
220v to 110v Power Voltage Fiber Media Converter PriceNegotiableMOQ: 1 Unit
-
Optical Fiber 50hz/60hz 110v/220v/230v/240v ConverterNegotiableMOQ: 1 Unit
-
AC Voltage 220v 4 Ports Fiber Optic Media ConverterNegotiableMOQ: 1 Unit
Place of Origin
Hubei, China
Brand Name
Fiberhome
Model Number
F-ENGINE OL100/OL200
Specifications
Low-noise double-cooling fan designCE & FCC certificate
Professional maker
EOC slave modem
7400 high speed 300mhz four ports EOC slave modem
Product Description
Product Descreption
| Wuhan Fiberhome International Technologies Co., Ltd. Intelligent Surveillance & Security Management Residential Gateway & Set Top Box FiberHome Optic Fiber Cable Optical Distribution Network COB Led Lighting Data Network Wireless | ||||||
| Product specification | ||||||
| Descriptions | ||||||
| Type | AN5006-11-B02-A220 | AN5006-11-B02-M220 | AN5006-11-C01-A220 | |||
| Interface | 4*RF ports(2-in, 2-out),1*PON port+3*GE(2*uplink ports, 1*out-band NM port) | 4*RF ports(2-in, 2-out), 2*GE (1*uplink ports, 1*out-band NM port) | ||||
| RF port type | The metric F head female | |||||
| RF output impedance | 75Ω | |||||
| Power supply | 12V-Self-adapter | Internal 220V | 12V-Self-adapter | |||
| Power consumption | <15W | |||||
| PON port parameter | Comply with IEEE802.3ah,uplink/downlink transmission speed 1Gbps,support DBA, auto-register ONU and OLT | |||||
| Max. capacity | 300Mbps | |||||
| RF occupancy | 7.5~67.5MHz | |||||
| Chipset | Head end: AR7410 terminal: : AR7411 | |||||
| RF output consumption | 90-110dBuv | |||||
| RF receiver sensitivity | -50dBm | |||||
| Transmission distance | About 700M(Coaxial cable) | |||||
| Modulation model | OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK ROBO | |||||
| VLAN | Support based on port,VLAN,VLAN+MAC,port+MAC,flow traffic mirroring, support remote mirroring | |||||
| Nominal bandwidth per channel | 57.5MHz | |||||
| MAC layer operation mode | CSMA/CA | |||||
| Multicast | Multicast group:16 | |||||
| Encryption | Bidirectional 128-bit AES | |||||
| NM | Support SNMP,GUI, | |||||
| Operation environment | Operation temperature:0℃~60℃ Humidity;20%~85% (Non-condensing) | |||||
| Store temperature:-10℃~70℃;10%~90%(Non-condensing) | ||||||
| Dimension (W×D×H) | 280*140*43.5mm | 180mm*130mm*35mm | ||||
| Weight | 1kg | 0.6kg | ||||
| Product Features and Benefits | ||||||
|
Highly integrated products to facilitate construction and maintenance Stable performance, good network adaptability small amount of construction, low cost support Forward Error Correction (FEC) and Dynamic Bandwidth Allocation (DBA). Technology adapt network, without network transformation. Good compatibility, network upgrade easily Has Lightening protection for Power Supply or Ethernet port and power port The EOC Master can be Upgraded Firmware and Configuration via FTP or TFTP sever it. Unified Network management wavelengths in use during 1310, 1490 and 1550 nm using Connector SC / APC. | ||||||

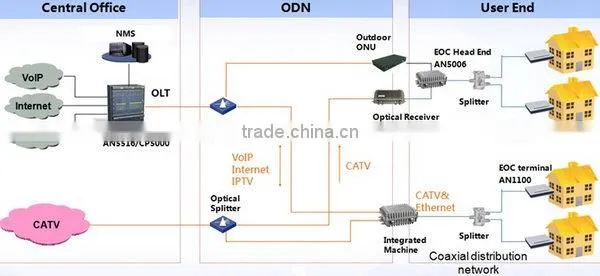

| Product Application | ||||||
| ||||||
| Product Pictures | ||||||
| ||||||
Our Services
Our services
| Our Service | |
| Pre-sale service | Timely communication |
| After-sale service | 24 hours online |
| Global customer service | 1.golable service network with 3-leavel supporting organization |
| 2.40 representative offices in China | |
| 3.8 regional headquarters,20 local service centers | |
| 4.FiberHome's education and training system | |
| |
| Our Advantage | |
|
*We have 20,000 employees and andvanced equipment *Select quality fiber to ensure excellent transmission performance *Adopt strict process and raw materials control to guarantee the lifespan of 30 years | |
| |
Company Information
Company Information
| Company Information |
|
1976 China's first multi-mode optical fiber was born here 1979 China's first commercialized optical fiber was born here 1984 China's first single mode optical fiber was born here 2012 The output increased to 14 million kilometer fibers |
|
|
| Optical fiber&cable industrial distribution |
|
| Our Team |
|
| Certification |
|
FAQ
FAQ
FAQ |
|
1.How long have you been doing foreign trade? We have been doing optical firber foreign trade over 40 years. 2.How many people do you have in your factory? We have more than 20,000 employees,including one academician of Chinese Academy of Engineering,8state-class young and middle-aged experts with outstanding contributions and 22 members of ITU-T experts. 3.What's your MOQ? 1 Kilometer. 4.What's your delivery time? Depending on your quantity,about 2 weeks to 3 months. 5.How long does the Warranty of the products? 2 years 4.How is about your quality? We have passed ISO9001:2000,comprehensively implements ISO1400 Enviroment Management System and OHSAS18000 Occupational Health and Safty Management System. |
| How to contact us |
|
Website: Official Web: Alibaba Store:https://img13.fr-trading.com Direct Industry Store:/prod/fiberhome-fujikura-optic-technology-115657.html Phone number: +86-27-87694140 Fax : +86-27-87694171 |
| Our Other Main Products |
|
|
