Specifications
FiberHome F-engine AN5006-11 ethernet over coaxaggregation equipment of Coaxial cable bidirectional data transmission
Specifications

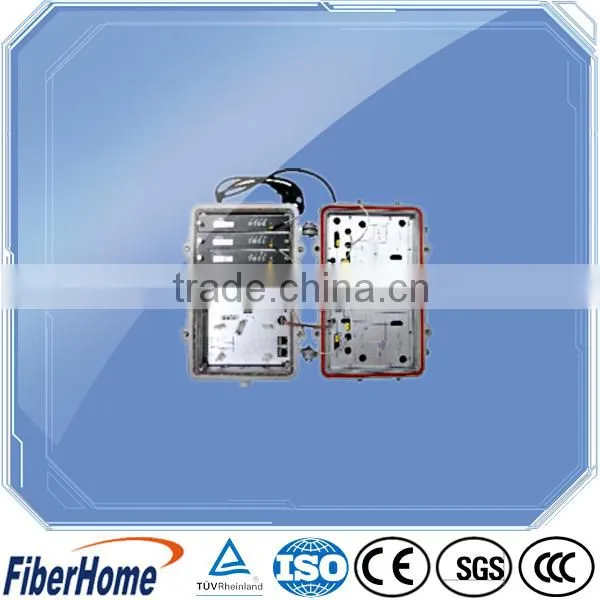

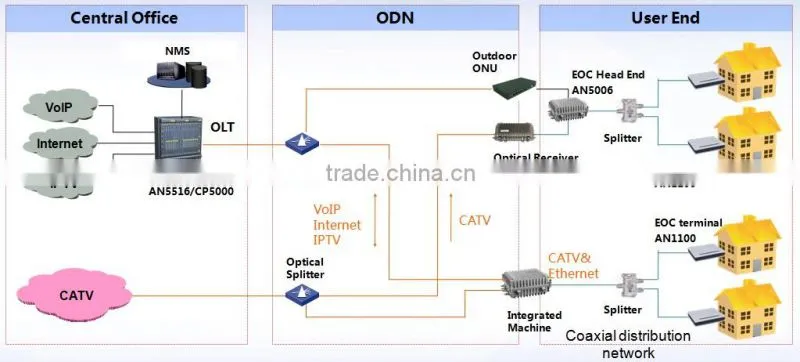

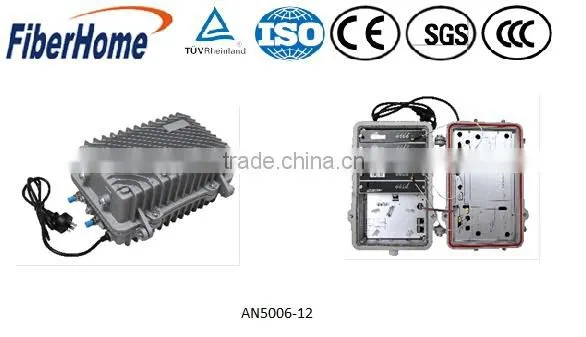

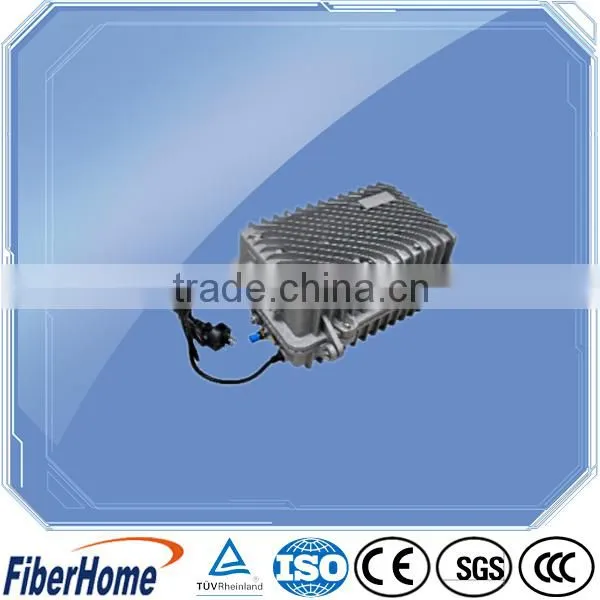

AN5506-12 two-in-one field EOC head end is access aggregation equipment of Coaxial cable bidirectional data transmission access system, which integrate ONU and HomePlug AV 7400 series chip EOC. It has 1*GE Optical interface to uplink EPON OLT. AN5006-12 can transmit and receive Ethernet signal through CATV coaxial cable, which lead the existing coaxial cable network upgrade to a carrier-grade, operational, administrable bidirectional broadband access network by low investment.
Descriptions |
||||
AN5006-12-B02 |
AN5006-12-C01 |
|||
Interface |
8*RF ports(4-in, 4-out),1*PON port+1*GE Ethernet port, 4*EOC module slots |
4*RF ports(2-in, 2-out), 2*GE (1*uplink ports, 1*out-band NM port) ( |
||
EOC module |
4 slots |
N/A |
||
RF port type |
The metric F head female |
|||
RF output impedance |
75Ω |
|||
Power supply |
220VAC or 60VAC |
220VAC or 60VAC |
||
Power consumption |
<25W |
|||
PON port parameter |
Comply with IEEE802.3ah,uplink/downlink transmission speed 1Gbps,support DBA, auto-register ONU and OLT |
N/A |
||
RF occupancy |
7.5~67.5MHz |
|||
Chipset |
Head end: AR7410 terminal: : AR7411 |
|||
RF output consumption |
90-110dBuv |
|||
RF receiver sensitivity |
-50dBm |
|||
Transmission distance |
About 700M(Coaxial cable) |
|||
Modulation model |
OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK ROBO |
|||
Support based on port,VLAN,VLAN+MAC,port+MAC,flow traffic mirroring, support remote mirroring |
||||
Nominal bandwidth per channel |
57.5MHz |
|||
MAC layer operation mode |
CSMA/CA |
|||
Multicast |
Multicast group:16 |
|||
Encryption |
Bidirectional 128-bit AES |
|||
NM |
Support SNMP,GUI, |
|||
Operation environment |
Operation temperature:-20℃~55℃ Humidity;20%~85% (Non-condensing) Store temperature:-10℃~70℃;10%~90%(Non-condensing) |
|||
Dimension (W×D×H) |
316*220*162mm |
230mm*157mm*103mm |
||
Weight |
5.5kg |
2.5kg |
||
Model |
Description |
AN5006-12-B02-M220 |
Field type,4 slots( 8*RF ports, 4-in, 4-out),1*EPON+1*GE, 220V, exclude EOC module |
AN5006-12-B02-M60 |
Field type,4 slots( 8*RF ports, 4-in, 4-out),1*EPON+1*GE, 60V, exclude EOC module |
AN5006-12-C01-M220 |
Field type, 4*RF ports(2-in, 2-out), 2*GE(1*uplink ports, 1*out-band NM port), 220V |
AN5006-12-C01-M60 |
Field type, 4*RF ports(2-in, 2-out), 2*GE(1*uplink ports, 1*out-band NM port), 60V |
