9w 12w 15w LED round flat panel lighting 90-264V
- 10000 Unit / Units per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MDL Sky LED Panel Light Model: MDL-PL-SKY
- A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
- A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
- MDL Ultra-thin LED Panel Light Model: MDL-PLRB
- Keysight/Agilent T34450A OLED Green
- led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
LED Light Source: | Epistar | Warranty(Years): | 3 | Input Voltage(V): | 100-277 |
Lamp Power(W): | 9 | Lamp Luminous Flux(lm): | 675 | Lamp Luminous Efficiency(lm/w): | 75 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 55 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP44 | Certification: | BV, CCC, CE, CQC, EMC, FCC, LVD, UL |
Place of Origin: | Guangdong, China | Brand Name: | SLTMAKS | Model Number: | STN-090DW2 |
Product Description
9W LED round flat panel lighting 90-264V
Technical Parameters for LED Panel Light
Point Light Source Parameters: 9W LED flat panel light dimmable
| |
Items | Parameter |
Power | 9W |
LED | 2835 |
Color | warm white/ neutral white / cool white |
CCT | 2800-3500K/4000-5000K/6000-7000K |
CRI | ≥85 |
Lifespan | ≥50,000 Hours |
Flux | 840LM +/-50LM(Dimmer) |
Beam Angle | 120° |
Material | Aluminum+Milky PC |
Net Weight | MAX 1.06KG/PC |
Gross Weight | MAX 12.5KG/CTN | |||
Package Dimension | 660*390*180mm | |||
1 | ||||
Technical Requirements
| ||||
Items | Units | Parameter Range | ||
Working Temperature | °C | -370C - 550C | ||
Working Humidity |
| ≤95% | ||
Storage Condition | °C | -40°C~80°C | ||
Rated Voltage | V | AC 90-264V, 50/60Hz | ||
Input Current | A | 0.5-0.17 | ||
Protection Level | IP43 | |||
| Features
| |||
Dimmable | 1.Can replace traditional LED tube lights, no need for ballast and starter, reducing the rate of failure;
2. Turn on the light immediately, no flicker and no delay, no high-frequency noise;
3. Aluminum housing, resistant to damage and excellent heat dissipation, and recyclable;
4. Wide Voltage range, can work under low voltage, the brightness will not change with voltage fluctuation;
5. Great color rendering, color presentation is more realistic, more vivid, better light definition;
6. Long lifetime, lifespan is more than 50,000 hours;
7. Eco-friendly, No pollution of Lead and Mercury, Lower energy consumption and pollutants eliminated;
8.High luminous efficiency, save 60% electricity bill compared to traditional tube light.
| |||
| Applications
| |||
| They are designed for office buildings, factories, shopping malls, home indoor lighting and so on.
| |||
| Attentions
| |||
| 1.Please use the correct power supply.
2.Please read the product installation manual carefully before using the products. |

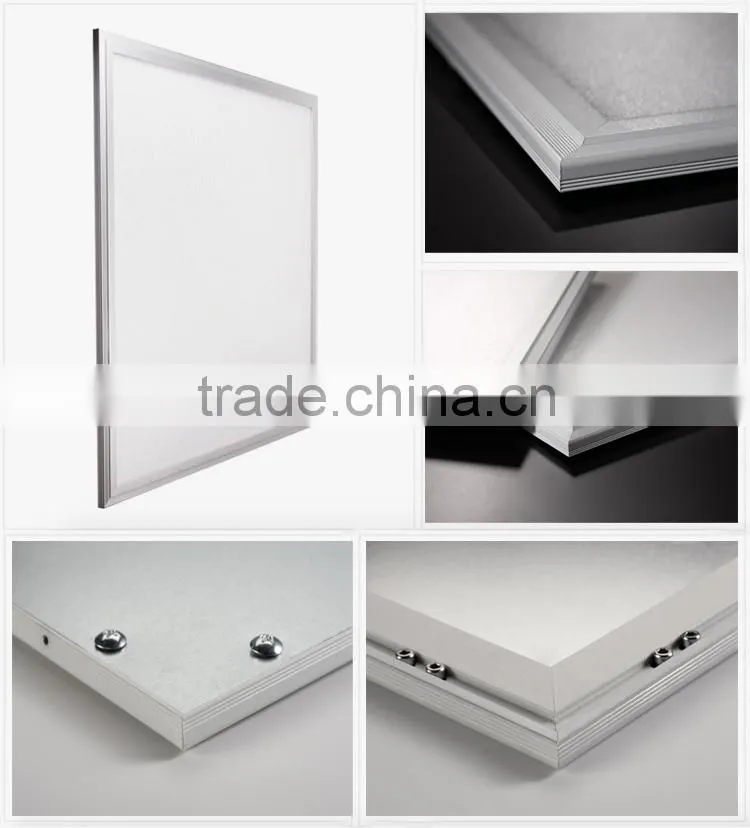

Product Details for LED Panel Light
Features for LED Panel Light
- High efficiency & energy saving. Under the condition of the same illumination, the LED Panel Light can save energy up to 67%.
- Long life span, using semiconductor chip as the light resource, the life time can be over 50,000hrs.
- Special view angles, mixing lighting design.
- No RF interference.
- Eco-friendly. No Hg & Xe, or other harmful elements.
- No flocker, no glare, the LED Panel Light is with very soft and even light.
- Special circuit design, each LED can work seperately, thus it can avoid the influence that a broken LED causes.

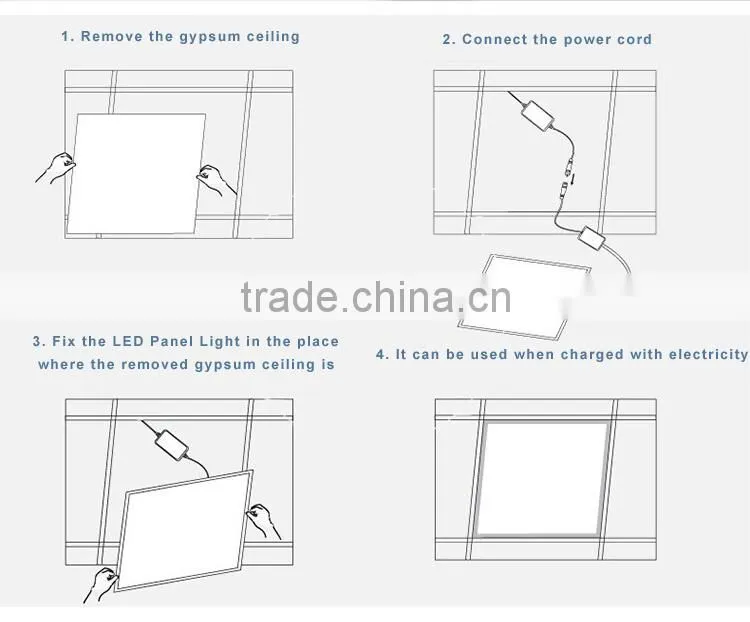

Installation for LED Panel Light

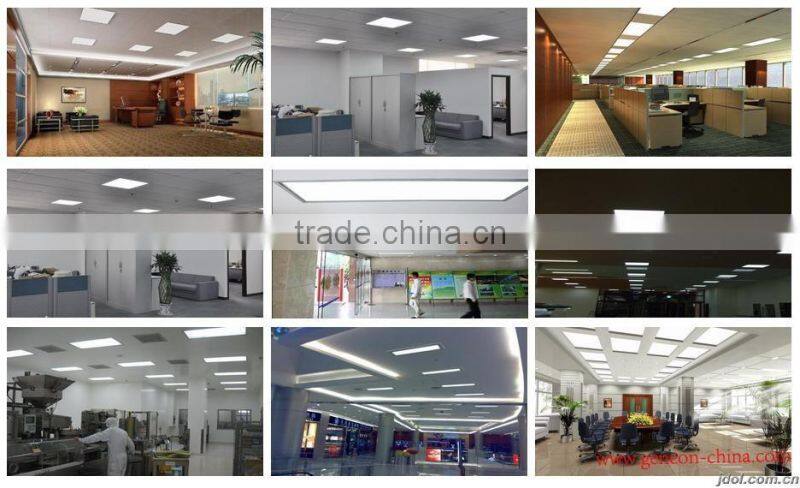

Applications for LED Panel Light
LED Panel Lights are designed for homes, offices, hotels, shopping malls, supermarkets, cabinets and other ceiling lighting places.
Packaging and shipping for LED Panel Light
Inner box: Every LED Panel Light will be packed with thick foam and special PE bag.
Outer package: Every inner box will be packed with thick and solid carton, whiich promise you get the perfect LED Panel Light after long term transportation.
Shipping: Every LED Panel Light will be sent to you of highest quality we can provide. Before shipping LED Panel Light to you , it must go through aging test, and get our strict QC manager's permission.
Freight: You are lucky to get the lowest freight for we have good long-term relationship with express companies.
