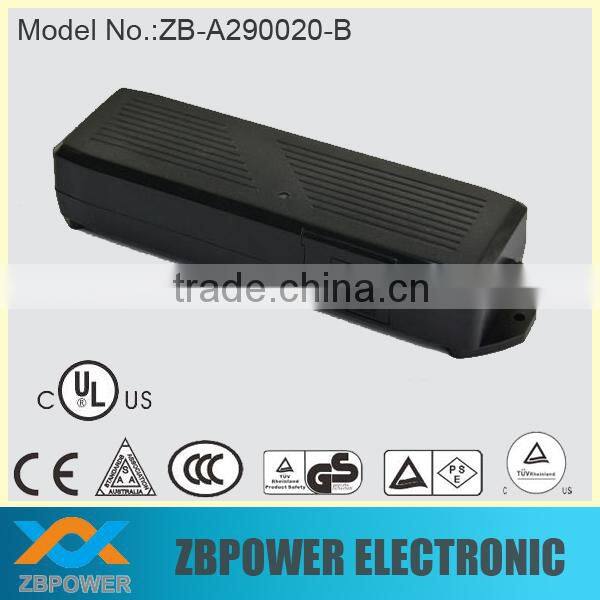

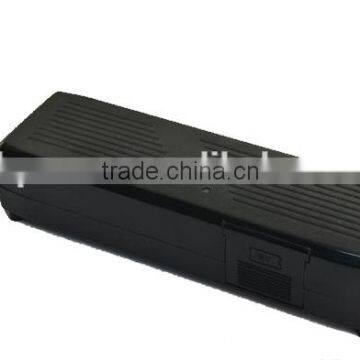

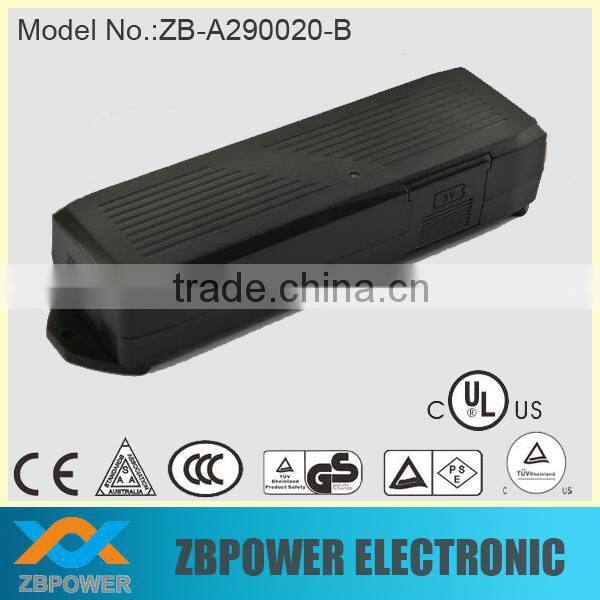

29V 2A Power Supply Linear Actuator Power Adapter 58W CE,GS,TUV,UL,CCC,PSE,SAA
| Model | Input Voltage | Frequency | Output Voltage/Current | Max Current |
| ZB-A290020-B | 100V-240V | 50HZ-60HZ | 29V 2.0A | 6.5A-11A |
| Model | I/P condition | Voltage | Current | Efficiency | Ripple | Power |
| ZB-AXXXYYY-B XXX=290 YYY=015-020 |
100-240Vac 50/60Hz 1.6A max. |
DC(V) | (A) | min./% | P.P(mV) | max.(W) |
| 29 | 1.5 | 85 | 200 | 43.5 | ||
| 29 | 2 | 85 | 150 | 58 |
| PRODUCT DESCRIPTION | ENVIRONMENT PARAMETER |
| Principal Characteristics | Operating Temperature:0℃...+40℃ |
| AC to DC | Storage Temperature:-20℃...+85℃ |
| Desk Top | Insulation Intensity:3750VAC 1min inp.<->outp. |
| Streamline,Fully sealed | Insulation Resistance:Pri.to sec.>50MOhm 500VDC |
| OVP,OCP,SCP | Over Current Protection:120%-200%,Auto reboot |
| RoHS,Reach Compliance | Over Voltage Protection:150%,Auto reboot |
| Efficiency Compliance CEC,ERP,LEVEL:V | |
| MTBF:50,000 hours |
| TECHNICAL PARAMETERS | SMPS APPLICATION |
| Environmental Temp:at 25℃ | Telecom&Networking |
| Input Parameter | Electric Tools |
| Input Voltage:100-240 Vac | Security&protection |
| Range:90-264Vac | Home Electronic Equipment |
| Input Frequency:47-63Hz | Medical Equipment |
| Input Current:1.6A max | Set Top Box |
| Start Inrush Current:<80A/240V | Office Equipment |
| Output Parameter | Others |
| Regulation:Line Load<5% | |
| Ripple and Noise:<2% max | |
| Turn-on Delay Time:5S max |
1. Packaing Detail: Each Swiching Power Supply be Individual packing in Brown paper box, normally 50pcs per carton
2. Shipping: Express, By air, By Sea, EXW, FOB Shenzhen
1. Proffessional Swithcing Power Supply/ Linear Actuator Power Adapter Manufactory
2. Custom-made products / Professional R&D Team support OEM ODM
3. Excellent quality: Most products pass certificate like CE,UL,GS,TUV,FCC,PSE,SAA,KC,CCC
4. Perfect Service
5. Responsible After-sales Service
6. Favorable Price
Huizhou Zhongbang Electronics Co., Ltd., found in 2001, is a member of ZBPOWER LIMITED, and specialized in manufacturing of switch power supply. We insist on enterprise value of “quality first for existence and for benefits”, the company keeps absorbing advanced experience, keeps advanced design. We established a quality management system according to ISO9001 requirements and has acquired ISO9001 certificate since 2003.
Our products including Linear Actuator SMPS(Swtiching Power Supply), mobile phone chargers, portable battery and chargers, AC/DC convertors, LED driver. The products were certified by UL, CCC, CQC, TUV, GS, CE, CB, FCC,PSE, SAA, and C-tick. All products comply to requirements of RoHS orders.
1. Shippment Terms: Express, by air, by sea, EXW or FOB shenzhen
2. MOQ: 1K~5K
3. L/T: 4Weeks~6Weeks
