Newest Network 4G IPC 1080P 720P Vehicle NVR
Product Features:
1. HIS Solution,H.264 Compression,support 4CH Networking 1080P or 4CH networking 720P HD surveillance video recording and play back;
2. 2CH video output (1CH CVBS video output, 1CH VGA output );
3. Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely;

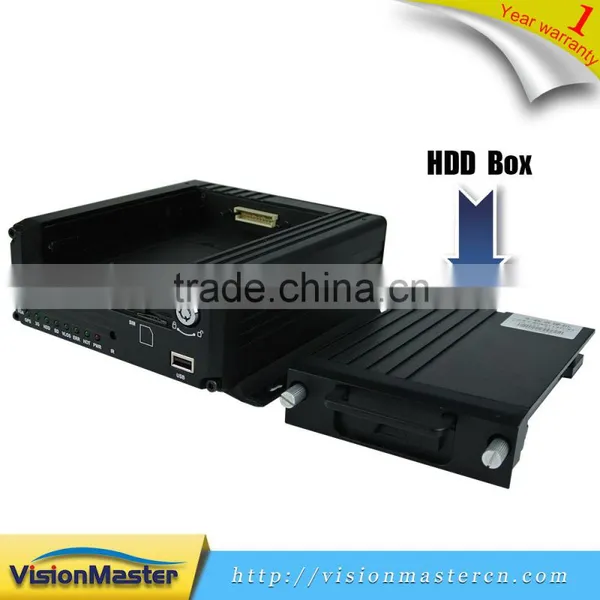

4.HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card);
5.2CH analog input + 8CH IO alarm input;
6.Support GPS/BD/G-Sensor Extension module;
7.Realize real-time monitor through 3G/4G;
8.MS remote configuration/control DVR;
9.Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
10.OTG device upgrade automatically,device can automatically upgrade version update, maintenance is more convenient;
11.IOS/Android smart phone remote monitor;
12.High reliability aviation connectors, high cost performance, stable and reliable.
| Item | Parameter | |
| OS | Linux | |
| Language | English/Chinese/Customized | |
| video compression | H.264 Compression | |
| OSD | Overlays information such as date time and vhicle ID | |
| GUI | Setup system parameters with the remote control | |
| Video record system | video input | 4CH Networking 1080P networking camera input, aviation connector, 1.0Vp-p, 75Ω |
| video output | 1CH CVBS video output + 1CH VGA output,1.0Vp-p, 75Ω | |
| video standard | P/N type | |
| Preview | Support 1 channel and 4 channels preview | |
| Resolution | 1080P/720P | |
| Audio input/output |
4 CH Aviation Connectors 1 CH |
|
| Storage | Max 2.5” 2TB HDD + 128GB SD Card | |
| Alarm input/output | 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage; 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut | |
| Interface | 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection;1CH 485 Interface,Connect PTZ Camera | |
CMSV6 Interface
CMSV6 In Mobile Phone
Have all in the palm of your hand
Real-time monitoring via Mobile Phone
Support iPhone, Android, iPad system
Newest Network 4G IPC 1080P 720P Vehicle NVR
Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success.
Q:When Device issue appear,you are confused on how to solve it.
A:Check Device Item No & Firmware Version,sent back to us with detail description of issue.Our Technical Team will handle it.More detail you described,easier for us to solve it quickly
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they will delete the
original video records respectively.
Q: Can’t playback files on PC successfully?
A: Possible reason is as follows
Have never chosen a record file or document path; please choose the path that records file first
before playback.
